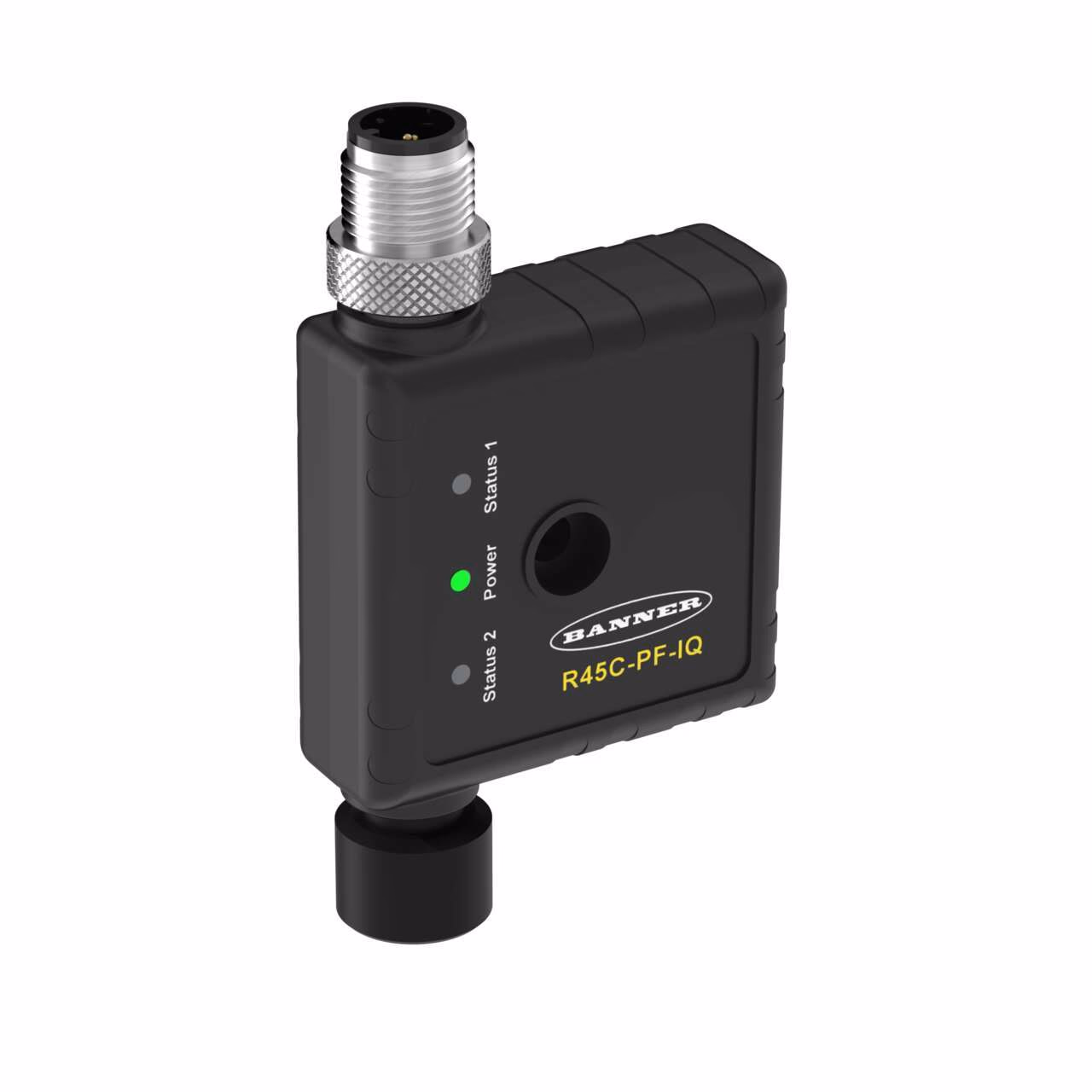

R45C Converters – Banner – R45C-PF-IQ
R45C Series: 2 Port PFM to Analog Converter
PFM Input
Analog Current Out
5-pin (Male), 5-pin (Female), M12 Integral QDs
| Connector 2 Gender | Female |
|---|---|
| Connector B | Male |
| IO Link | No |
| Item Status | RELEASED |
| Modbus RTU | No |
| Operating voltage | 12-30 V dc |
| Protection class shaft | IP65, IP67, IP68 |
| Setting option | Analog Current |
| IO-Link Device | No |
| Modbus Server | No |
| Connector 1 | Integral M12 |
| Function | Converter |
| IO-Link Master | No |
| Form Factor | R45 |
| Modbus Client | No |
| Input | PFM |
| Device Size (mm) | 45 x 45 |
| Connector 1 Pin Count | 4.0 |
| Connector 2 | Integral M12 |
| Connector 2 Pin Count | 4.0 |
| Current | <50 mA |
Description
R45C Series: 2 Port PFM to Analog Converter
PFM Input
Analog Current Out
5-pin (Male), 5-pin (Female), M12 Integral QDs
