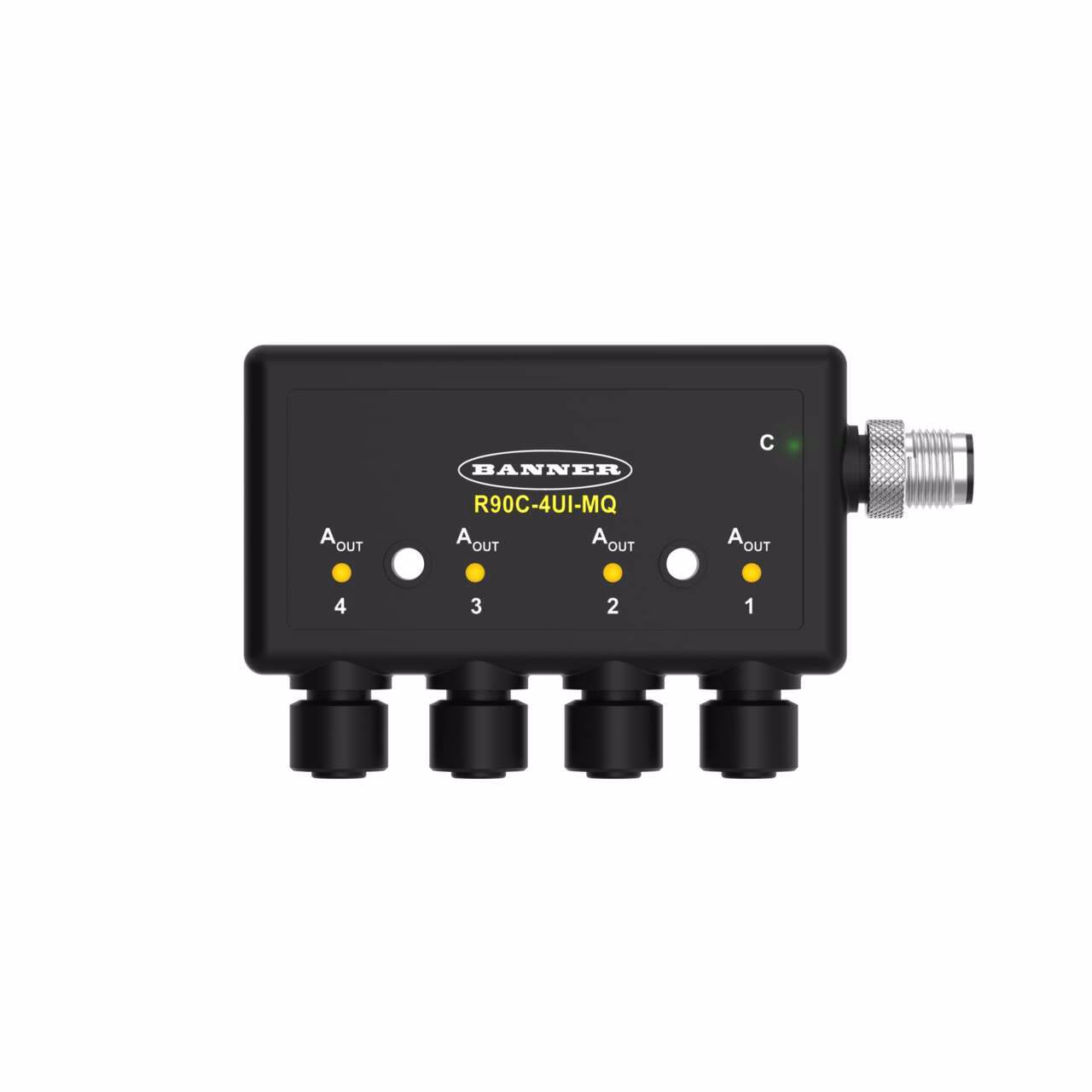

Banner – R90C-4UI-MQ
R90C Series: 4-port Modbus to Analog Hub
RS-485 Interface
4-pin M12 QDs
| Connector 2 Gender | Male |
|---|---|
| Connector B | Female |
| Current output | 4 to 20 mA |
| Item Status | RELEASED |
| Operating voltage | 10-30 V dc |
| Protection class shaft | IP65, IP67, IP68 |
| Setting option | Analog Voltage |
| IO-Link Device | No |
| Modbus Server | Yes |
| Connector 1 | Integral M12 |
| Function | Converter |
| IO-Link Master | No |
| Form Factor | R90 |
| Modbus Client | No |
| Input | Modbus |
| Device Size (mm) | 50 x 90 |
| Connector 1 Pin Count | 5.0 |
| Connector 2 | Integral M12 |
| Connector 2 Pin Count | 5.0 |
| Current | <50 mA |
| Output 2 | Analog Current |
| Analog Voltage | 0 to 10 V dc |
Description
R90C Series: 4-port Modbus to Analog Hub
RS-485 Interface
4-pin M12 QDs
