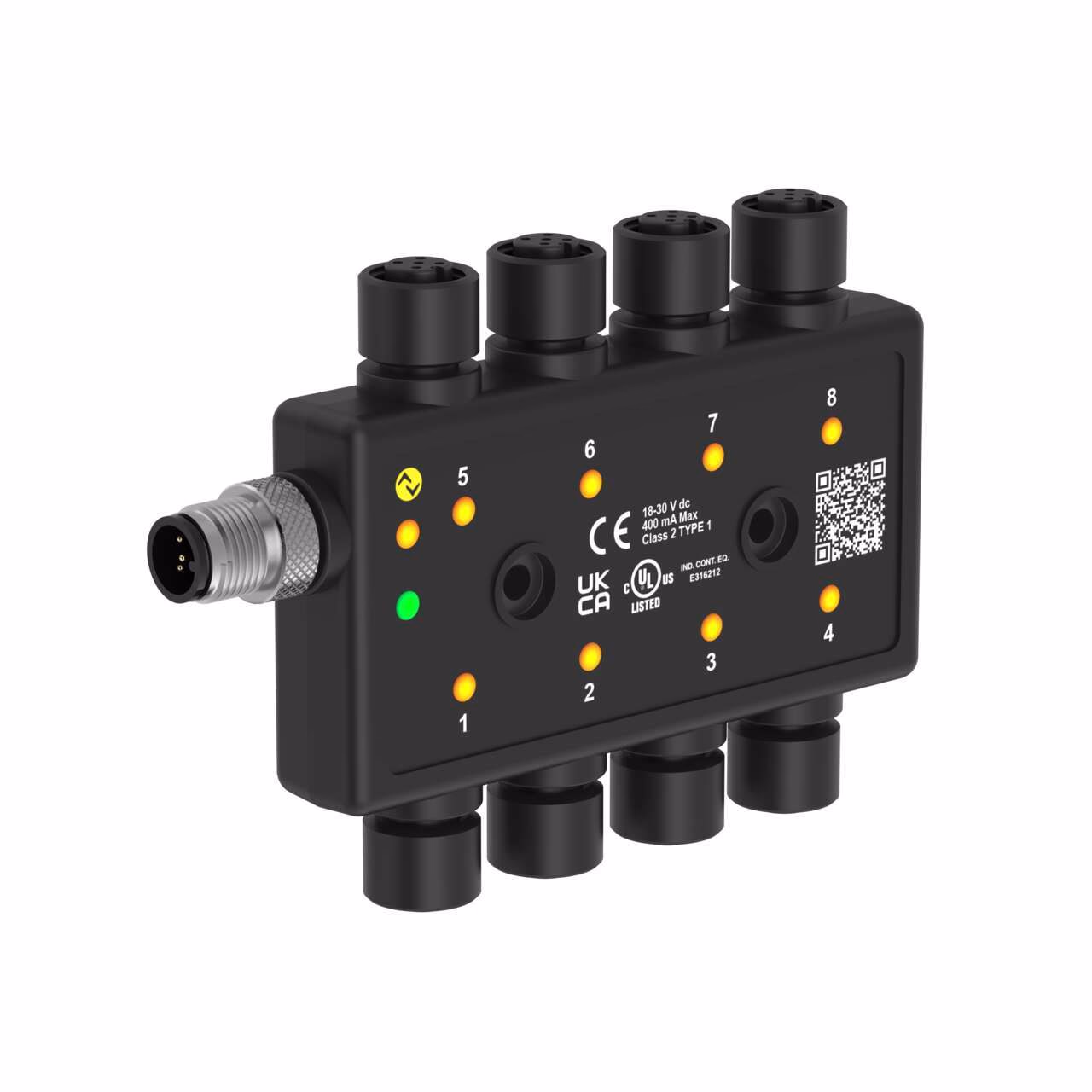

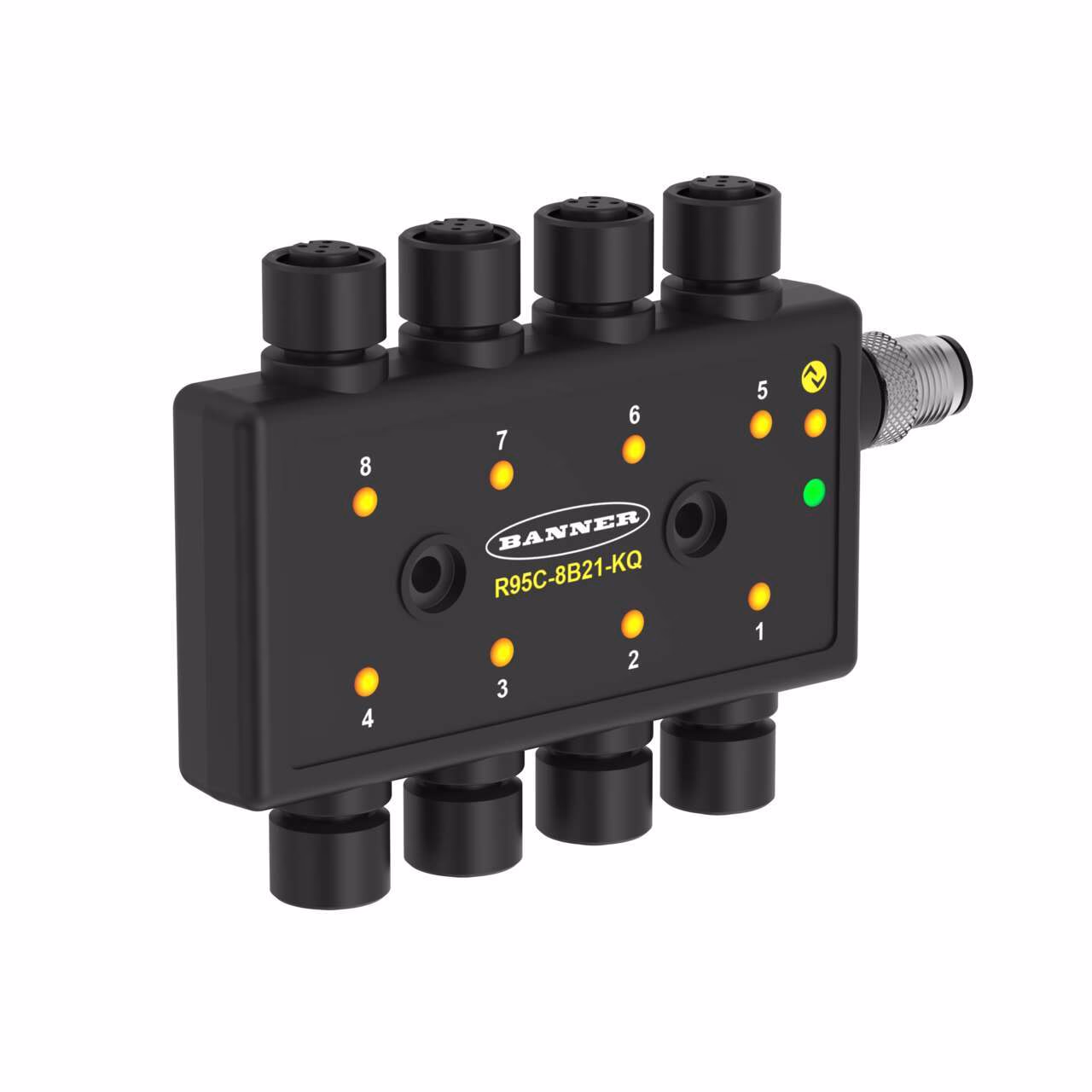

R95C IO-Link Hub – Banner – R95C-8B21-KQ
R95C Series: 8 Port Discrete IO-Link Hub
16 Inputs or 8 Inputs/8 Outputs (Configurable)
IO-Link Interface
4-pin M12 QDs
| Connector 2 Gender | Male |
|---|---|
| Connector B | Female |
| EPLAN Original Sent Date | 02/25/2026 |
| EPLAN Status | Pending Publish |
| IO Link | Yes |
| Item Status | RELEASED |
| Modbus RTU | No |
| Operating voltage | 18-30 V dc |
| Protection class shaft | IP65, IP67, IP68 |
| IO-Link Device | Yes |
| Modbus Server | No |
| Connector 1 | Integral M12 |
| Function | Converter |
| IO-Link Master | No |
| Form Factor | R95 |
| Modbus Client | No |
| Input | Discrete Input & Output |
| Device Size (mm) | 50 x 95 |
| Connector 1 Pin Count | 5.0 |
| Connector 2 | Integral M12 |
| Connector 2 Pin Count | 5.0 |
| Current | <400 mA |
Description
R95C Series: 8 Port Discrete IO-Link Hub
16 Inputs or 8 Inputs/8 Outputs (Configurable)
IO-Link Interface
4-pin M12 QDs
