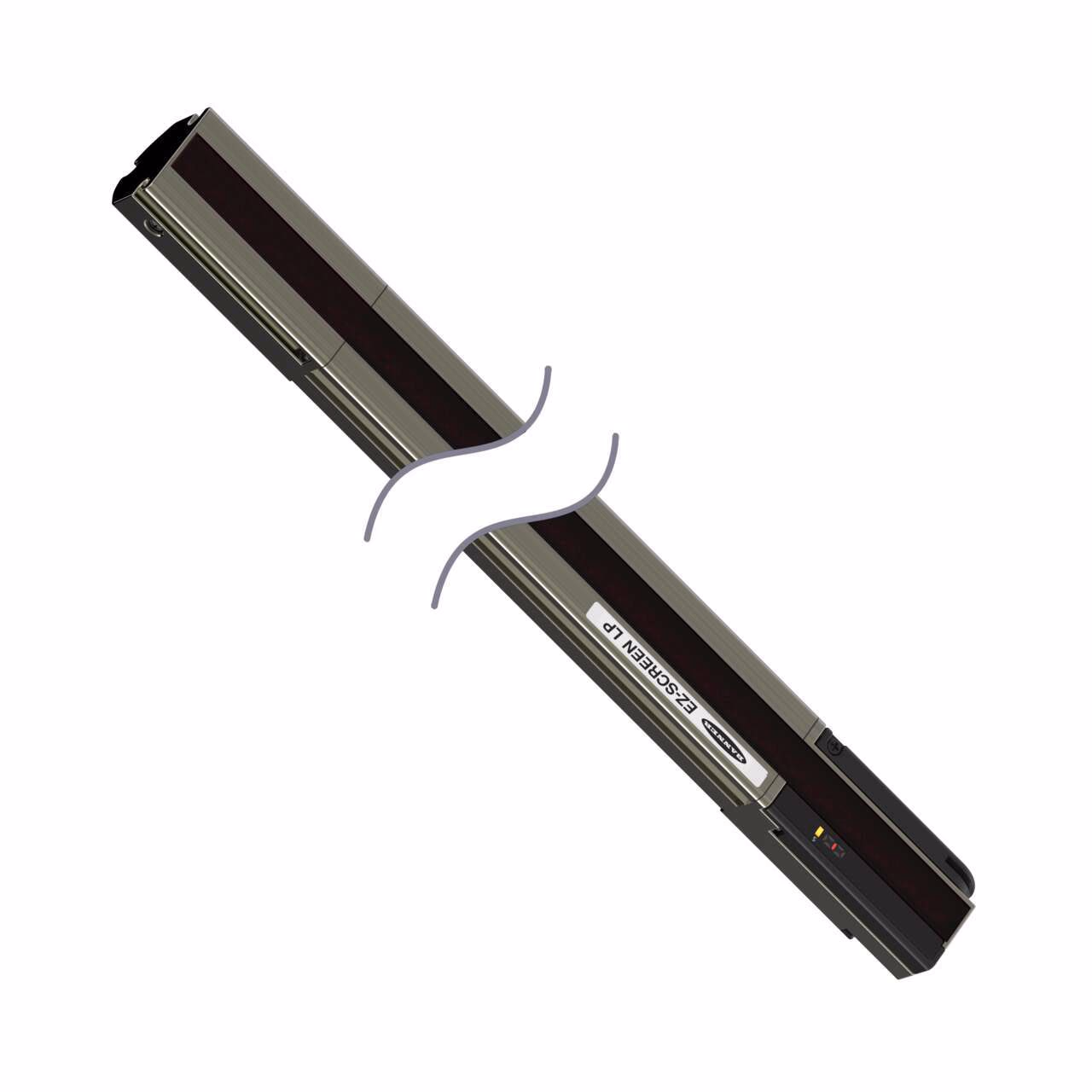

Banner – SLPCE14-1110N
SLPCE14-1110N EZS LP EMTR 14 mm x 1110 mm CASCADE
| Auxiliary Output | No |
|---|---|
| Max Operating Range (m) | >4 – <=8 |
| Resolution (mm) | 14 |
| Test Input | Yes |
| Connector type | Removable Disconnect |
| Effective Aperture Angle | Type 4 Per IEC 61496-2 |
| Electrical Safety Class | III |
| External Monitoring Device | No |
| Fault Output | Yes |
| Feature | Cascade, End-to-End Sensing, ESD Safe |
| Functional safety (SIL/PL) | SIL3; CL3 |
| Housing Finish | Nickel Plated |
| Housing material | Aluminum; Zinc; Acrylic |
| Item Status | RELEASED |
| Number of channels | 0.1 – 7 |
| Operating Temperature | 0 to +55 deg. C; RH 95% |
| Operating voltage | 24 V dc |
| PL Rating | Ple |
| Protection class shaft | IP65 |
| Receptacle housing material B | Aluminum |
| Recovery Time | 33-220 / 109-800 |
| Resolution incremental (ppr) | No |
| Safety Level | Type 4 |
| Scan Code | Selectable |
| Shock | 10g at 16ms (6000 cycles) |
| Short Protection | Yes |
| Supply Current | 60 mA max. |
| System Type | Emitter |
| Vibration | 10-55 Hz at 0.35 mm |
| Overall Length (mm) | 1110.0 |
| Defined Area Height Range (mm) | >950 – <=1300 |
| Defined Area Height (mm) | 1110.0 |
| Dimensions WxD (mm) | 28 x 26 |
Description
SLPCE14-1110N EZS LP EMTR 14 mm x 1110 mm CASCADE
