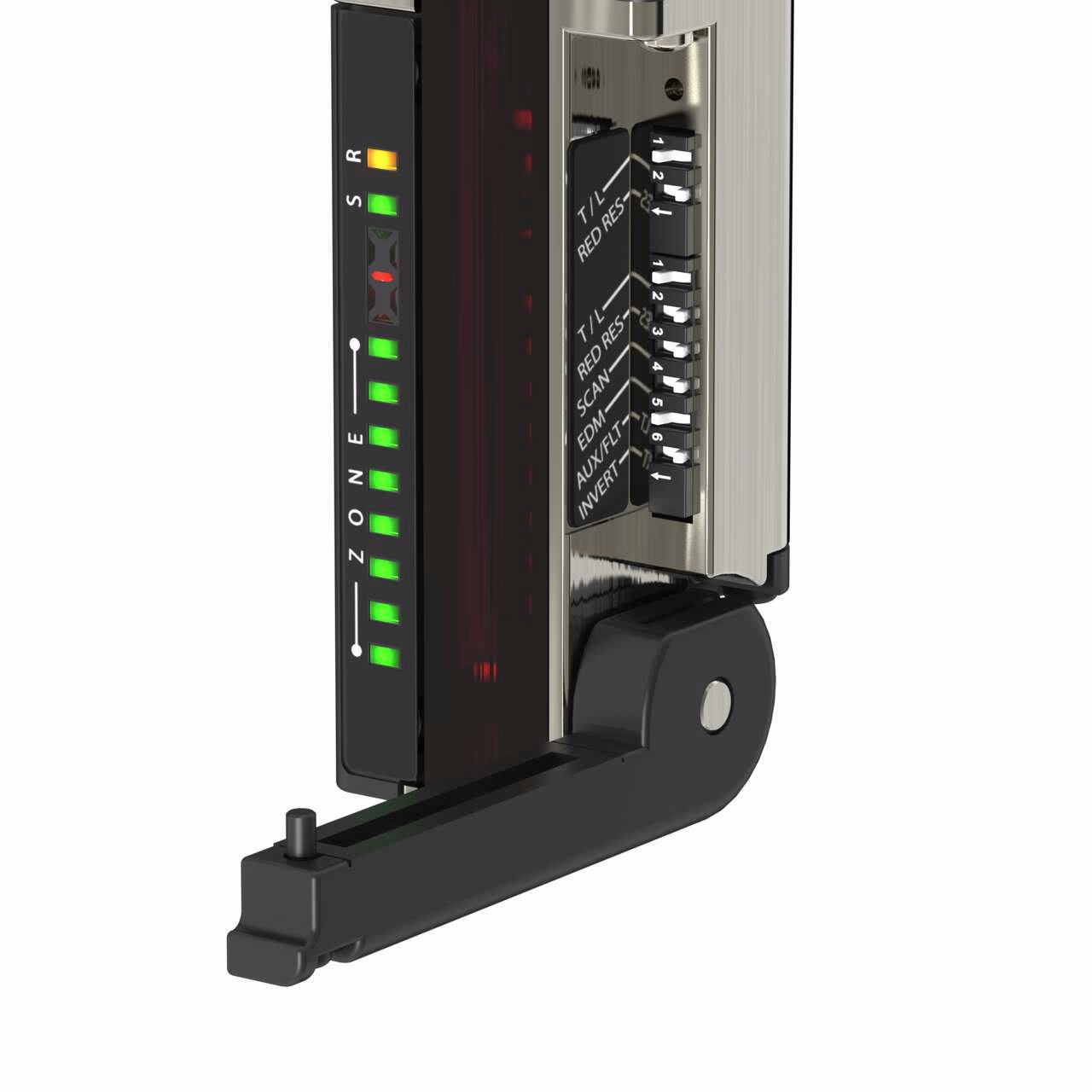

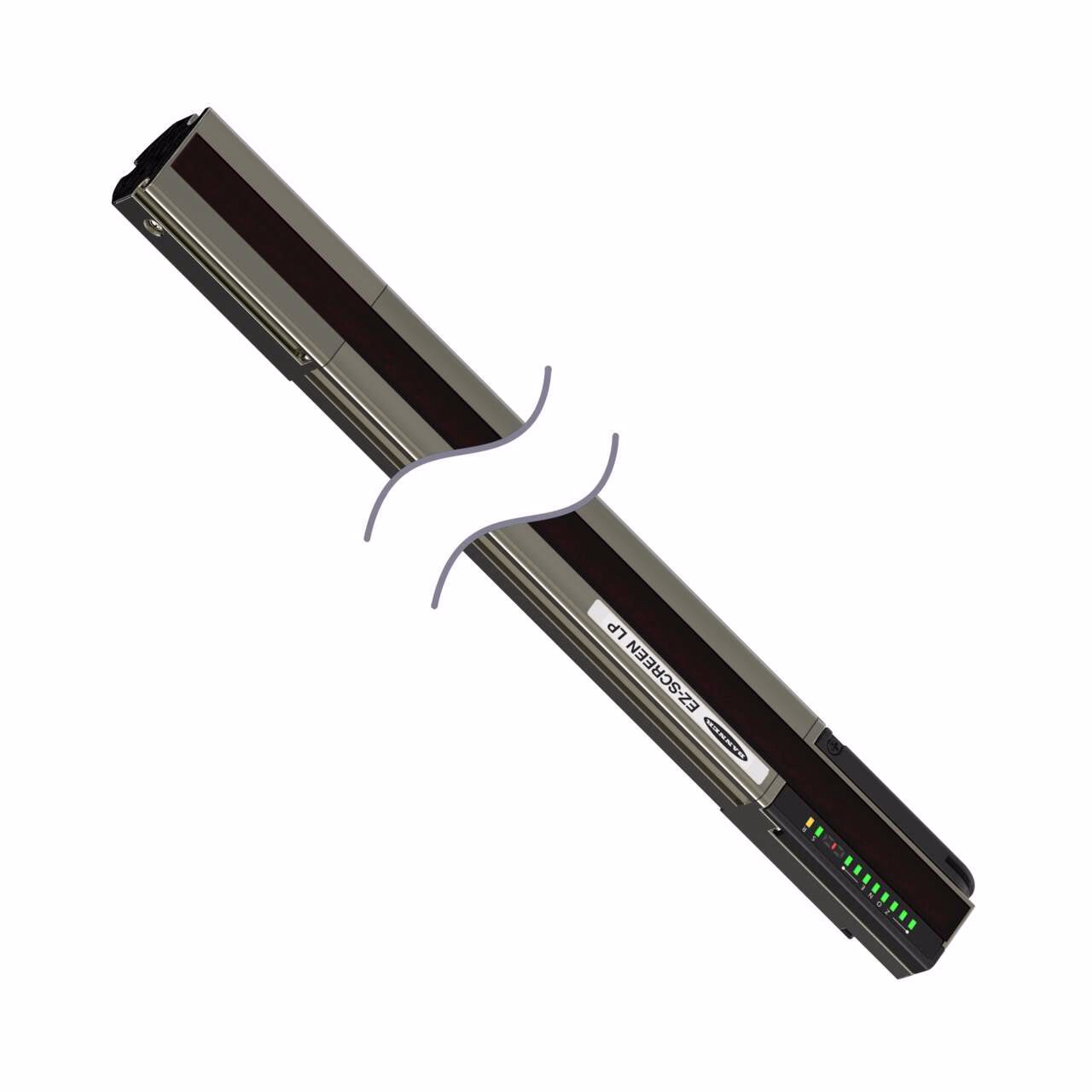

LP Series Emitters and Receivers – Banner – SLPR25-690N
SLPR25-690N EZS LP RCVR 25 mm x 690 mm
| Auxiliary Output | Yes |
|---|---|
| Max Operating Range (m) | >4 – <=8 |
| Resolution (mm) | 25 |
| Test Input | No |
| Connector type | Removable Disconnect |
| Effective Aperture Angle | Type 4 Per IEC 61496-2 |
| Electrical Safety Class | III |
| External Monitoring Device | 1 or 2 Channel |
| Fault Output | Yes |
| Feature | End-to-End Sensing, ESD Safe |
| Fixed Blanking | Yes |
| Functional safety (SIL/PL) | SIL3; CL3 |
| Housing Finish | Nickel Plated |
| Housing material | Aluminum; Zinc; Acrylic |
| Item Status | RELEASED |
| Low Profile | Yes |
| Nominal voltage | 24 V dc at 0.5 A each |
| Number of channels | 0.1 – 7 |
| Operating Temperature | 0 to +55 deg. C; RH 95% |
| Operating voltage | 24 V dc |
| PL Rating | Ple |
| Protection class shaft | IP65 |
| Receptacle housing material B | Aluminum |
| Recovery Time | 33-220 / 109-800 |
| Resolution | Hand Detection (23 mm, 25 mm, 30 mm) |
| Resolution incremental (ppr) | Yes |
| Response Time | 12.5 |
| Safety Level | Type 4 |
| Scan Code | Selectable |
| Shock | 10g at 16ms (6000 cycles) |
| Short Protection | Yes |
| Supply Current | 150 mA max. |
| System Type | Receiver |
| Trip/Latch Output | Selectable |
| Vibration | 10-55 Hz at 0.35 mm |
| Overall Length (mm) | 690.0 |
| Defined Area Height Range (mm) | >650 – <=950 |
| Defined Area Height (mm) | 690.0 |
| Dimensions WxD (mm) | 28 x 26 |
Description
SLPR25-690N EZS LP RCVR 25 mm x 690 mm
