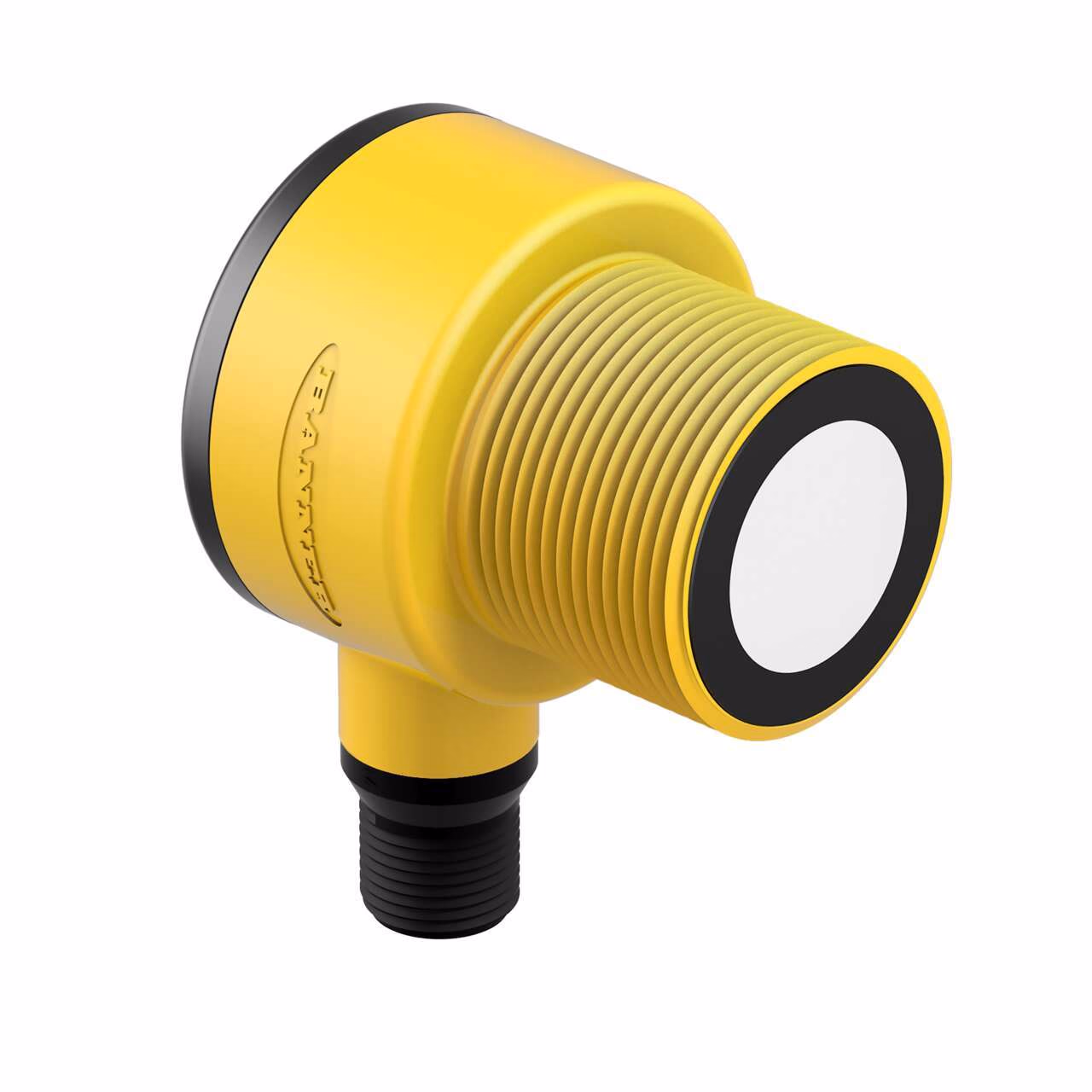

Banner – UXD1000-Q8-CNGT01
T30UX Series w/Discrete Output
Range: 100 mm to 1 m; Input: 10-30 V dc
Output: NPN PNP NO NC Selectable
4-pin M12 Integral QD
For China Marketing
| Discrete (Switched) Outputs | 1 NPN/PNP Configurable |
|---|---|
| Jam Detection | No |
| Laser Control | No |
| Minimum Sensing Distance (mm) | 100.0 |
| PC Configurable | No |
| PFM Output | No |
| Sensing Mode (General) | Proximity |
| Ultrasonic Frequency (kHz) | 224.0 |
| Connection technology signal | Time of Flight |
| Device type | Sensor |
| Feature | Clear Object Detection, Quick Disconnect, Remote Teach |
| Housing Style | Barrel |
| Input/Output | Discrete |
| Item Status | RELEASED |
| Number of pins | 4 |
| Operating voltage | 10-30 V dc |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | PBT |
| RS-232 | No |
| Screw-in thread | M30 |
| NEMA / UL Type Rating | NEMA 4X |
| Max Sensing Distance (mm) | 1000.0 |
Description
T30UX Series w/Discrete Output
Range: 100 mm to 1 m; Input: 10-30 V dc
Output: NPN PNP NO NC Selectable
4-pin M12 Integral QD
For China Marketing
