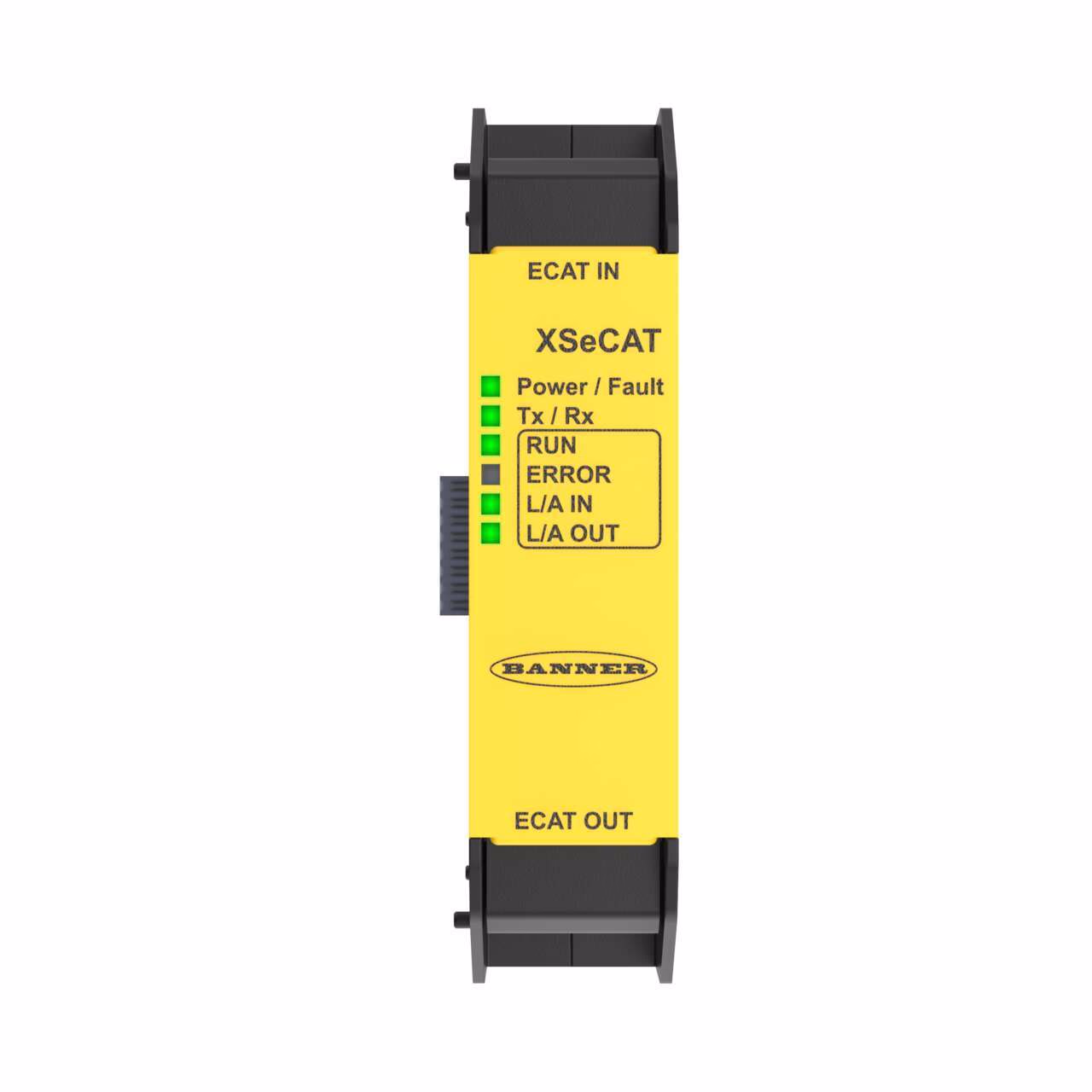

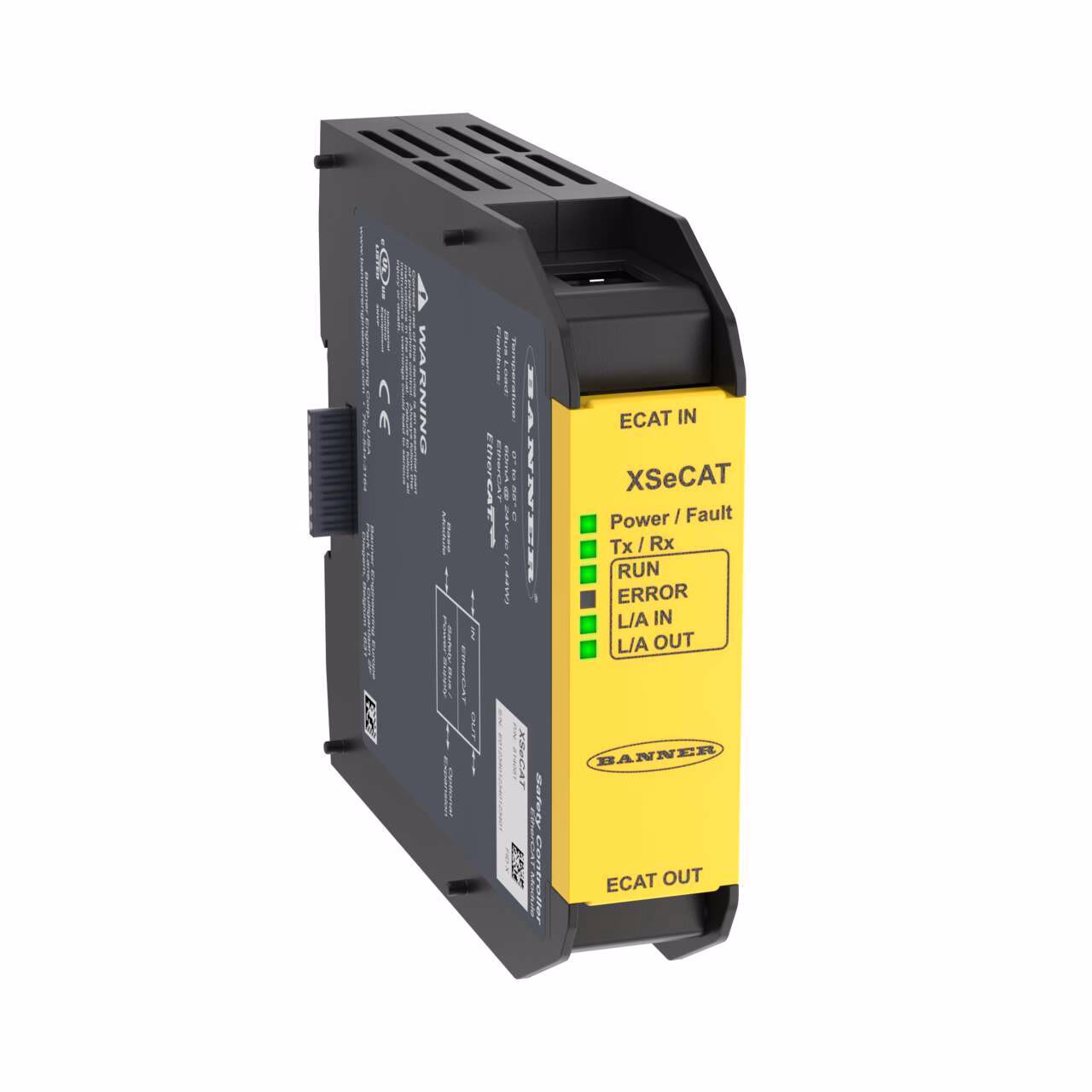

XS26 Expandable Safety Controllers – Banner – XSECAT
Safety Controller EtherCAT Communication Gateway
Used with Ethernet Capable XS26 Safety Controllers with FID6 or later
| In-Series Diagnostics | No |
|---|---|
| LCD Display | No |
| Max Operating Temperature (C) | 55.0 |
| PCCC | No |
| Relative Humidity | 90% @ 50° C |
| Device type | Safety Controller |
| EPLAN Original Sent Date | 06/08/2023 |
| EPLAN Status | Published |
| EtherNet/IP | No |
| Item Status | RELEASED |
| Network protocol | No |
| PROFINET | No |
| Protection class shaft | IP20 |
| Recovery Time | 250 (typical), 400 (max) |
| Vibration | 9-150 Hz at 1g occasional/0.5g continuous |
| Response Time (ms) | See Software Configuration Summary |
| Power Consumption | 0.06 A (bus load) |
| Light Curtains/Scanner without EDM Input | No |
| Removable Terminals | No |
| Splittable Safe Output | No |
| Gate Switch (NC/NO) Input | No |
| Gate Switch (OSSD) Input | No |
| Gate Switch (NC/NC) Input | No |
| Expandable | Yes |
| Dimension (H x W x D in mm) | 110 x 22.5 x 129 |
| Safety Module Type | Communication Gateway |
| Network View and Configure | No |
| EtherCAT | Yes |
Description
Safety Controller EtherCAT Communication Gateway
Used with Ethernet Capable XS26 Safety Controllers with FID6 or later
