CODESYS 3 Programmable Gateway for the BL20 I/O System BL20-PG-EN-V3
CODESYS 3 Programmable Gateway for the BL20 I/O System
| Ambient temperature max. (°C) | 60 |
|---|---|
| Ambient temperature min. (°C) | -20 |
| Device type | Cloud Gateway, Programmable gateway |

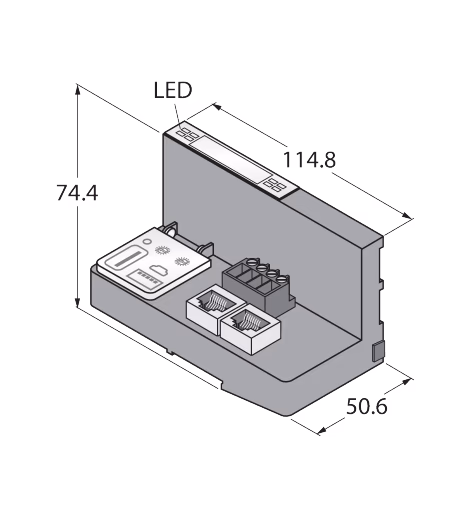

| Dimensions | 114.8 mm x 50.6 mm x 74.4 mm |
| Fieldbus connection technology | RJ45 port |
| Network protocol | EtherNet/IP, Modbus TCP, PROFINET |
| Operating voltage | DC |
| Protection class | IP20 |
| Voltage (V) | Screw terminals |
| Device function | Programmable gateway |
| Fieldbus master | Modbus TCP |
| Fieldbus slave | PROFINET |
| Programming | CODESYS V3 |
