Compact I/O station for DeviceNet FDN20-16XSG
Compact I/O station for DeviceNet
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Approvals | cULus |
| Connection technology signal | Screw terminal |
| Device type | Compact station, I/O Module |

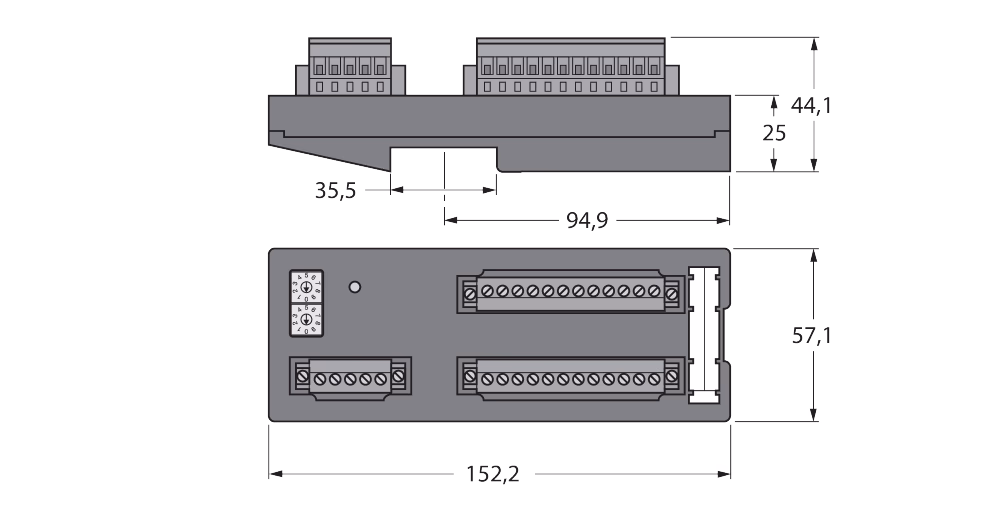

| Dimensions | 152.2 mm x 57.1 mm x 44.1 mm |
| Fieldbus connection technology | Pluggable screw terminal strip |
| Fieldbus transmission rate | 125/250/500 kbps |
| Input type | PNP |
| Installation area | non-Ex |
| Network protocol | DeviceNet |
| Number of channels | 16 |
| Output type | PNP |
| Output voltage | 18…26 VDC |
| Protection class | IP20 |
| Signal type | Digital input/output |
