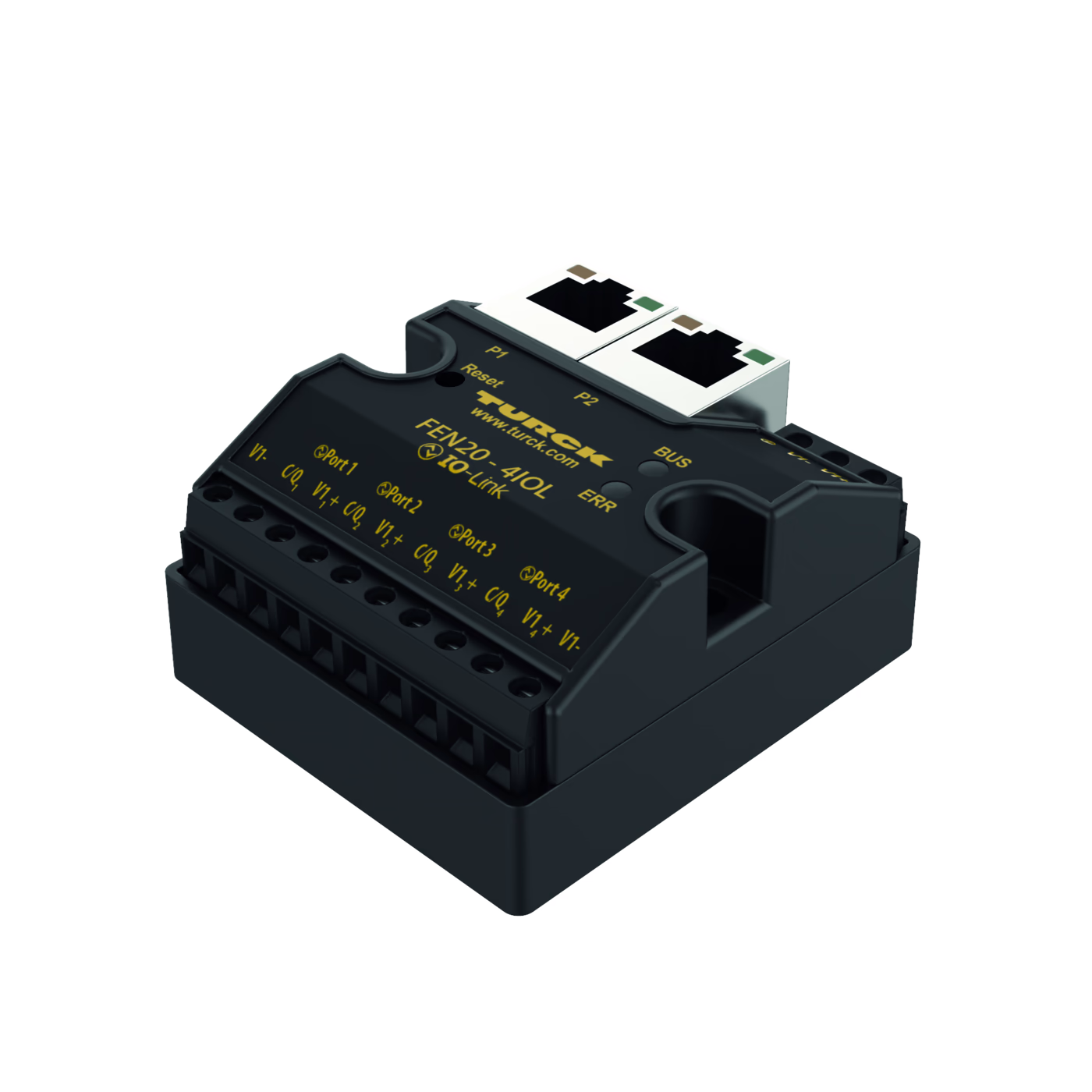

Compact IP20 Multiprotocol I/O Station FEN20-4IOL
Compact IP20 Multiprotocol I/O Station
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Approvals | cULus |
| Connection technology Ethernet | 2×RJ45 |
| Connection technology signal | Screw terminal |
| Device type | Compact station, Field Logic Controller (ARGEE), I/O Module |

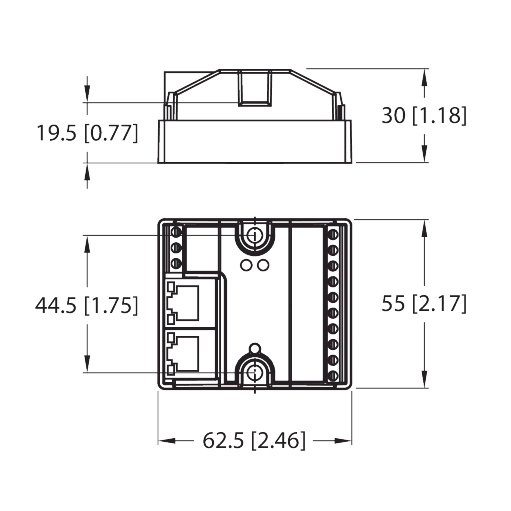

| Dimensions | 62.5 mm x 55 mm x 30 mm |
| Fieldbus connection technology | Screw terminals |
| Installation area | non-Ex |
| Network protocol | EtherNet/IP, Modbus TCP, PROFINET |
| Protection class | IP20 |
| Signal type | Digital input, Digital input/output, Digital output, IO-Link |
| Transmission rate Ethernet | 10/100 Mbps, autocrossing, autonegotiation, full/half duplex |
| Voltage (V) | Screw terminals |
