Compact Multiprotocol I/O Module for Ethernet TBEN-S1-4DXP
Compact Multiprotocol I/O Module for Ethernet
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Approvals | ATEX Zone 2/22, CCC, cULus, IECEx |
| Connection technology signal | M8 |
| Device type | Compact station, Field Logic Controller (ARGEE), I/O Module |

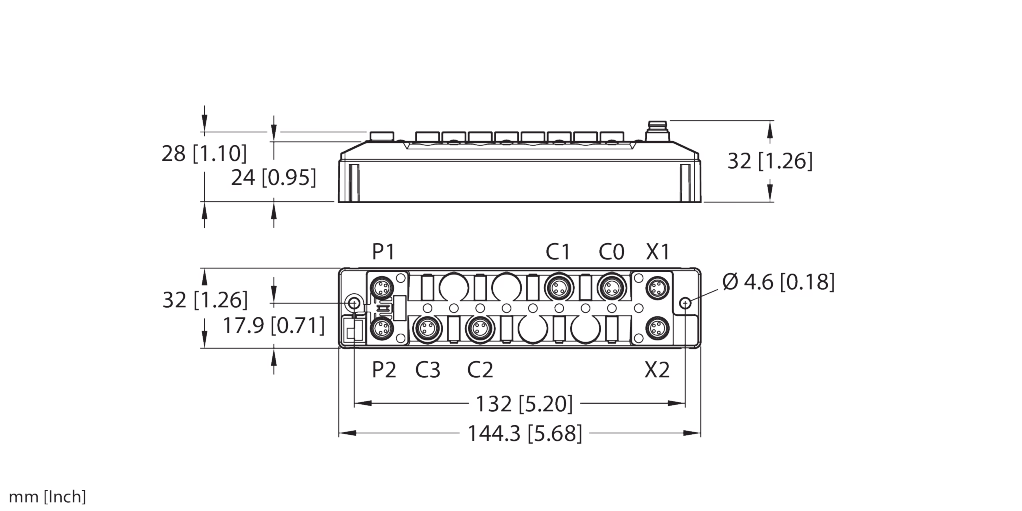

| Dimensions | 144 mm x 32 mm x 32 mm |
| Fieldbus connection technology | 2 × M8, 4-pin |
| Fieldbus transmission rate | 10/100 Mbps |
| Installation area | zone 2, zone 22 |
| Network protocol | CC-Link IE Field Basic, EtherNet/IP, Modbus TCP, PROFINET |
| Number of channels | 8 |
| Output voltage | 24 VDC from potential group |
| Protection class | IP65 |
| Signal type | Digital input, Digital input/output, Digital output |
| Voltage (V) | 2 × M8, 4-pin, A-coded |
