Compact RFID Module for EtherCAT TBEC-S2-4RFID
Compact RFID Module for EtherCAT
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Approvals | ATEX Zone 2/22, CCC, cULus, IECEx |
| Cable length (m) | 50 |
| Device type | Compact station |

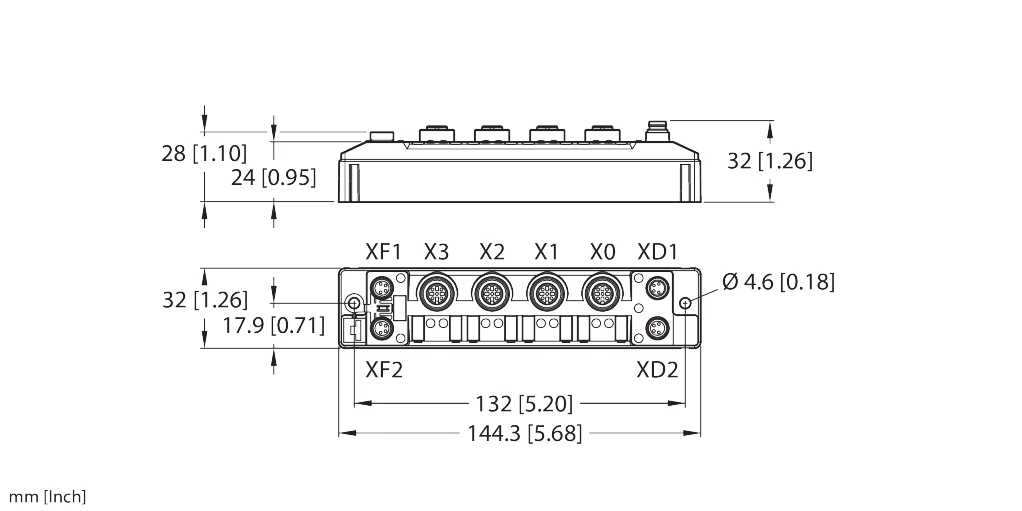

| Dimensions | 144 mm x 32 mm x 32 mm |
| Fieldbus connection technology | 2 × M8, 4-pin, A-coded |
| Installation area | zone 2, zone 22 |
| Network protocol | EtherCAT |
| Number of channels | 4 |
| Operating voltage | DC |
| Protection class | IP65 |
| Signal type | RFID |
