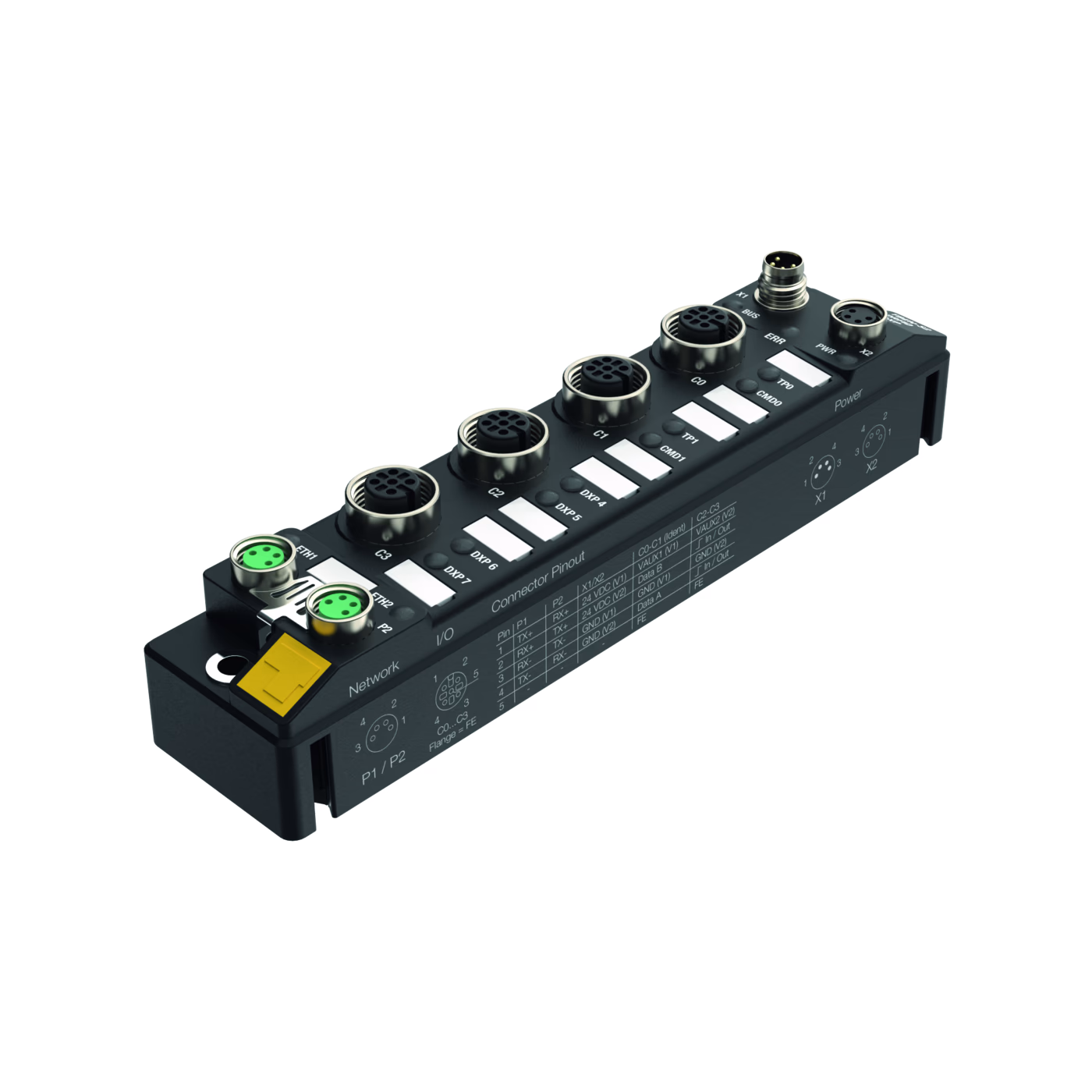

Compact Multiprotocol RFID Module for Ethernet TBEN-S2-2RFID-4DXP
Compact Multiprotocol RFID Module for Ethernet
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Approvals | ATEX Zone 2/22, CCC, cULus, IECEx |
| Cable length (m) | 50 |
| Connection technology Ethernet | 2 x M8, 4-pin, D-coded |
| Connection technology signal | M12 |
| Device type | Compact station, Field Logic Controller (ARGEE), I/O Module |
| Dimensions | 144 mm x 32 mm x 32 mm |
| Installation area | non-Ex |
| Network protocol | EtherNet/IP, Modbus TCP, PROFINET |
| Number of channels | 6 |
| Operating voltage | DC |
| Output voltage | 24Â VDC from potential group V2 |
| Protection class | IP65 |
| Signal type | Digital input, Digital input/output, Digital output, RFID |
| Transmission rate Ethernet | 10/100 Mbps |
| Voltage (V) | 2 × M8, 4-pin, A-coded |
