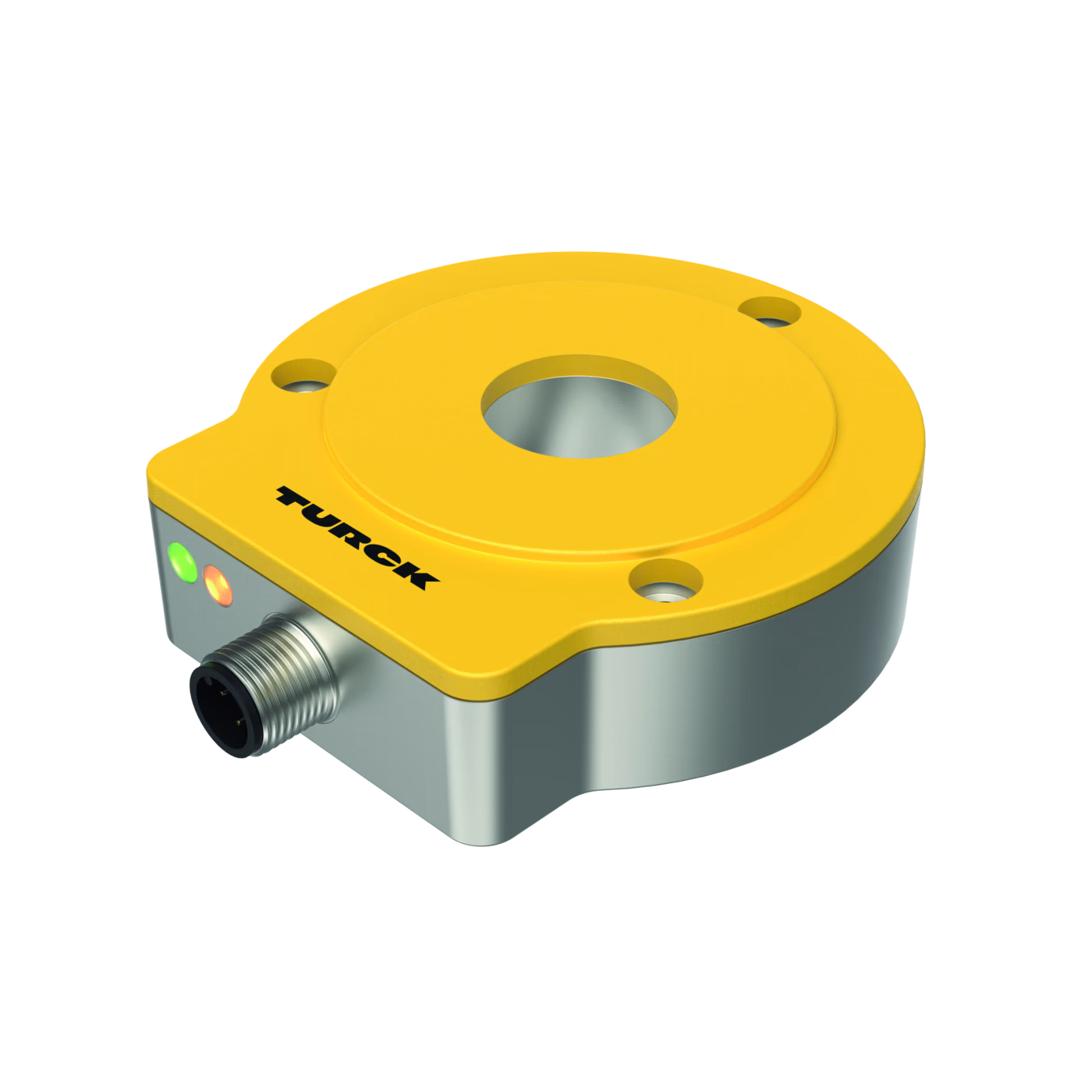

Contactless Encoder with ATEX Certificate RI360P0-QR24M0-IOLX2-H1141/3GD
Contactless Encoder with ATEX Certificate
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Communication protocol | IO-Link |
| Connector type | M12 × 1 |
| Dimensions | 81 mm x 78 mm x 24 mm |
| Electrical output | Connector |
| Housing material | Metal/plastic |
| Housing quality | ZnAlCu1/PBT-GF30-V0 |
| Measuring principle | Inductive |
| Measuring range | 0…360° |
| Operating voltage | DC |
| Output type | Absolute semi-multiturn |
| Protection class | IP68 |
| Encoder line | Premium-Line |
| Flange type | Flange without mounting element |
| Shaft diameter D (mm) | 6 mm |
| Shaft Type | Hollow shaft |
| Technology | Contactless |
