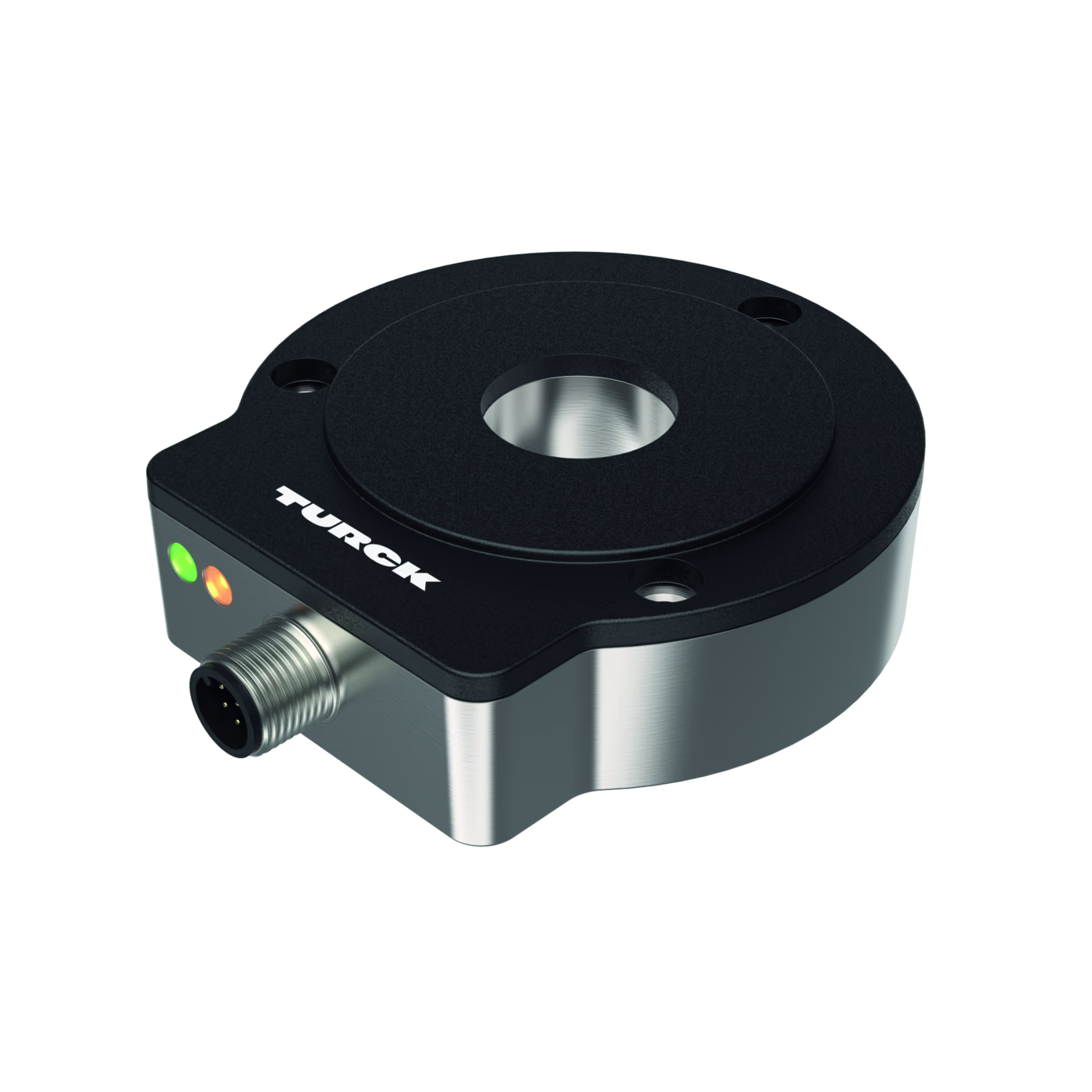

Contactless Encoder with Stainless Steel Housing RI360P0-EQR24M0-INCRX2-H1181
Contactless Encoder with Stainless Steel Housing
| Ambient temperature max. (°C) | 85 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Connector type | M12 × 1 |
| Dimensions | 81 mm x 78 mm x 24 mm |
| Electrical output | Connector |
| Housing material | Stainless-steel/Plastic |
| Housing quality | 1.4404 (AISI 316L)/PA12-GF30 |
| Measuring principle | Inductive |
| Operating voltage | DC |
| Output function | Push-Pull/HTL |
| Output type | Incremental |
| Protection class | IP68 |
| Encoder line | Premium-Line |
| Flange type | Flange without mounting element |
| Resolution incremental (ppr) | 1024 |
| Shaft diameter D (mm) | 6 mm |
| Shaft Type | Hollow shaft |
| Technology | Contactless |
