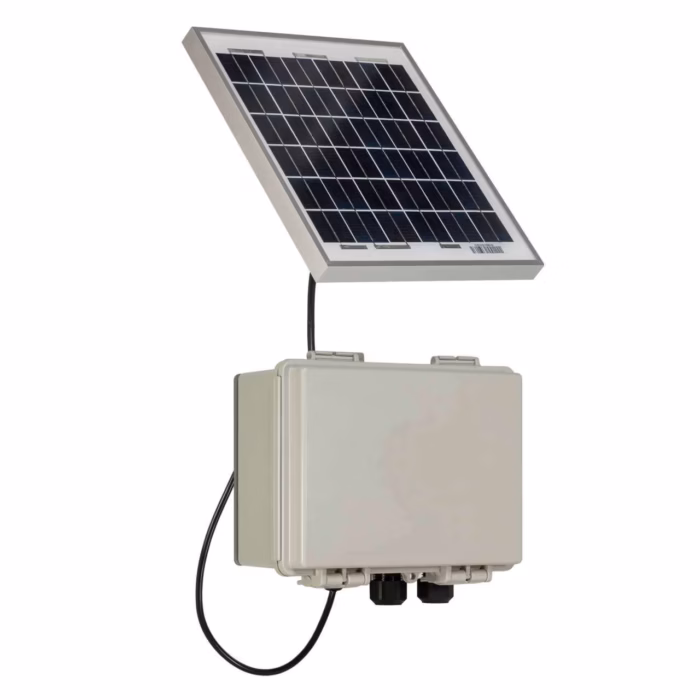

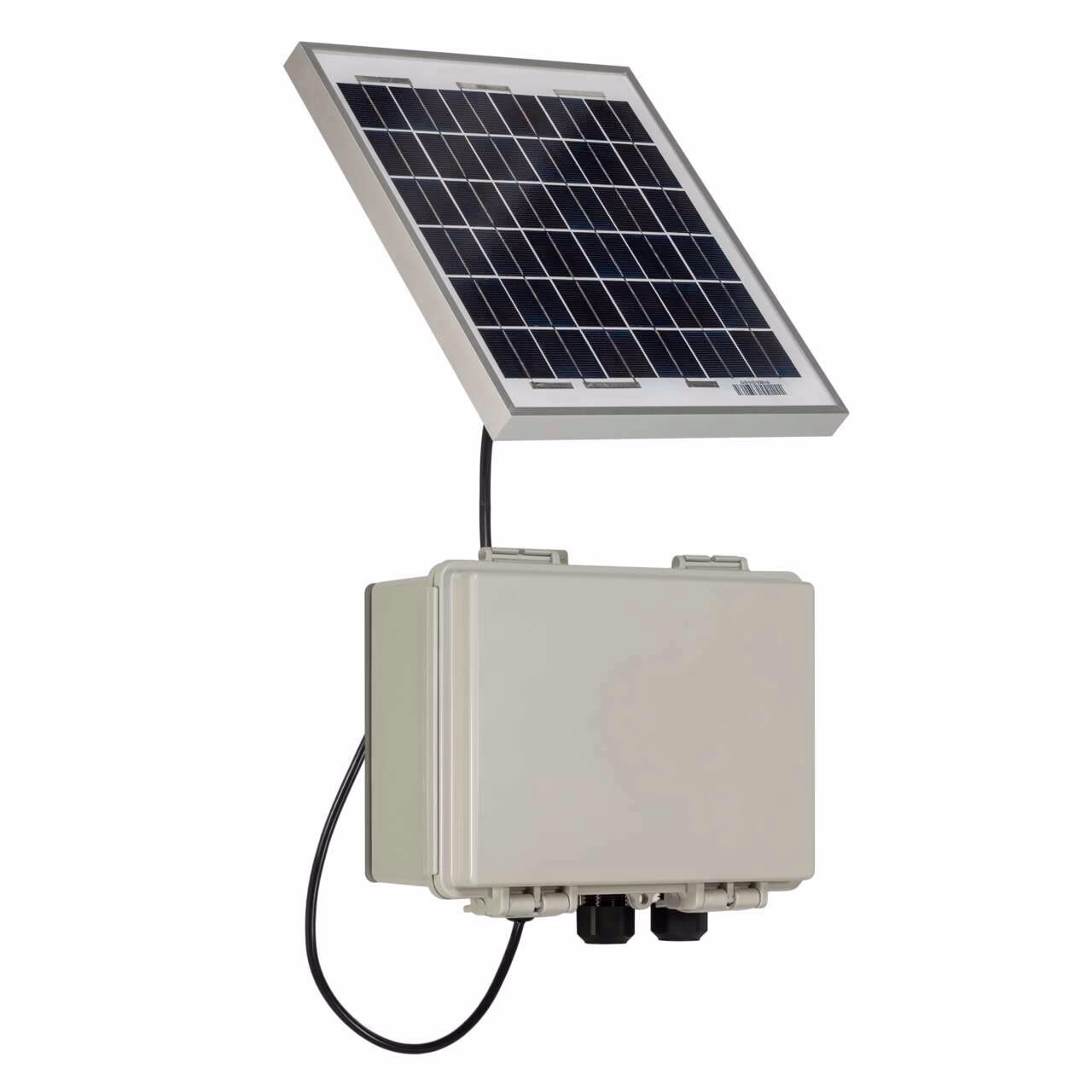

DEK Wireless Kit – Banner – DEK100-A1-A
DXM100 A1 Controller
AT&T North America Only
NEMA Rated Enclosure
4 Holes with Glands & Vent
5W Solar Panel with Battery
| Banner Cloud ID | No |
|---|---|
| Point-to-Multipoint Topology | No |
| Point-to-Point Topology | No |
| Relative Humidity | 95% |
| Ships With Battery | Yes |
| Star Topology | No |
| Tree Topology | No |
| Conductor length (m) | 3.0 |
| EtherNet/IP | No |
| Item Status | RELEASED |
| Modbus RTU | Yes |
| Operating voltage | 12-30 V dc |
| Power Good Output | Battery & DC Supply |
| Pressure type | Yes |
| Protection class shaft | IP66 |
| Radio interface | No |
| Receptacle housing material B | PBT |
| RS-232 | No |
| RS-485 | Yes |
| Min Op. Temperature (C) | -20.0 |
| Max Op. Temperature (C) | 60.0 |
| Battery Type/Size | LiFePO |
| Outside Housing Dimensions (cm) | 21.15 x 16.15 x 10.00 |
| Cellular Carrier | AT&T |
| Power Supply | Solar Panel |
| Application.1 | Relative Humidity Input, Tank Level, Temperature Input, Vibration Sensor Input |
Description
DXM100 A1 Controller
AT&T North America Only
NEMA Rated Enclosure
4 Holes with Glands & Vent
5W Solar Panel with Battery
