DEK Wireless Kit – Banner – DEK100-S2R2

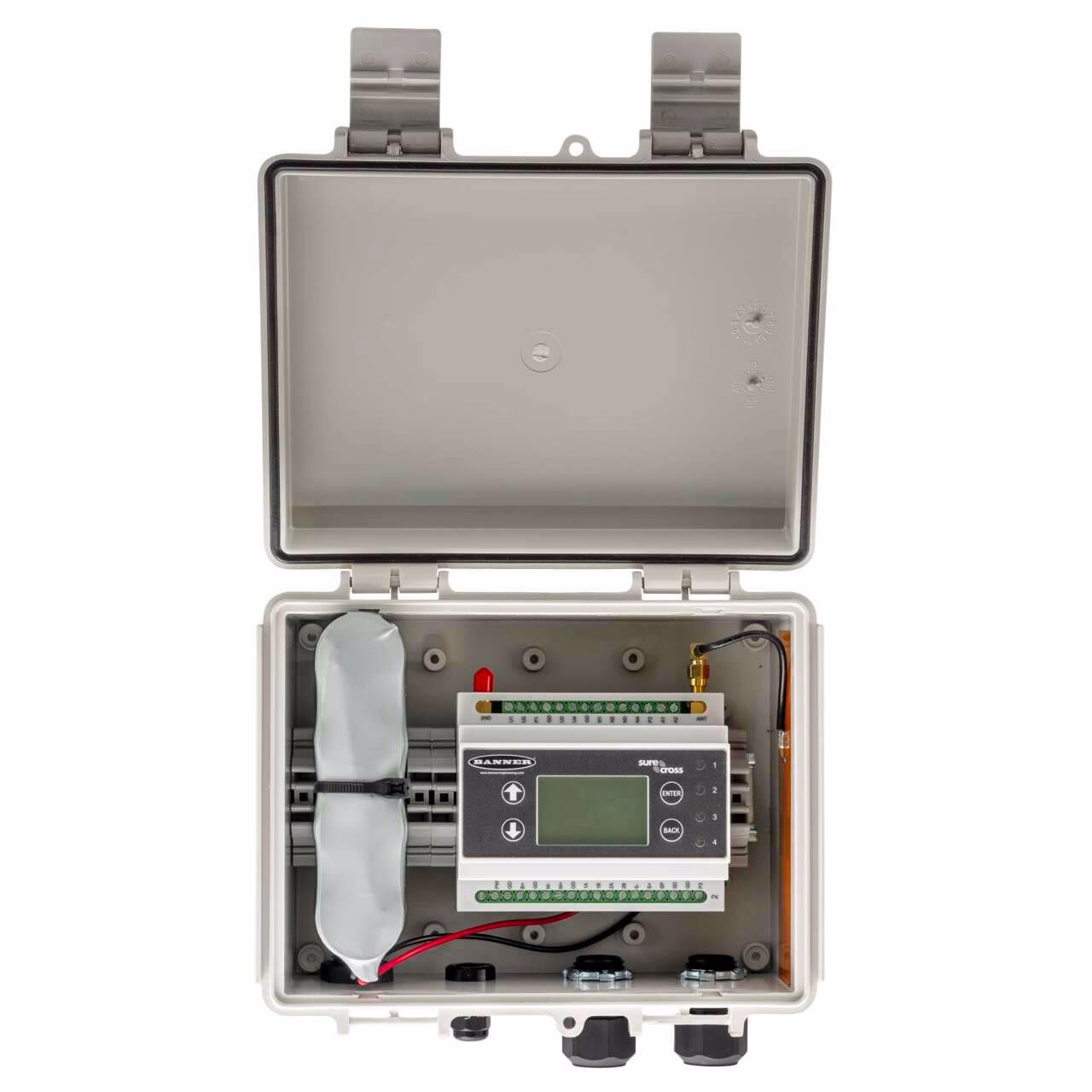

DXM100 S2D Controller
Multihop Radio 900 MHz

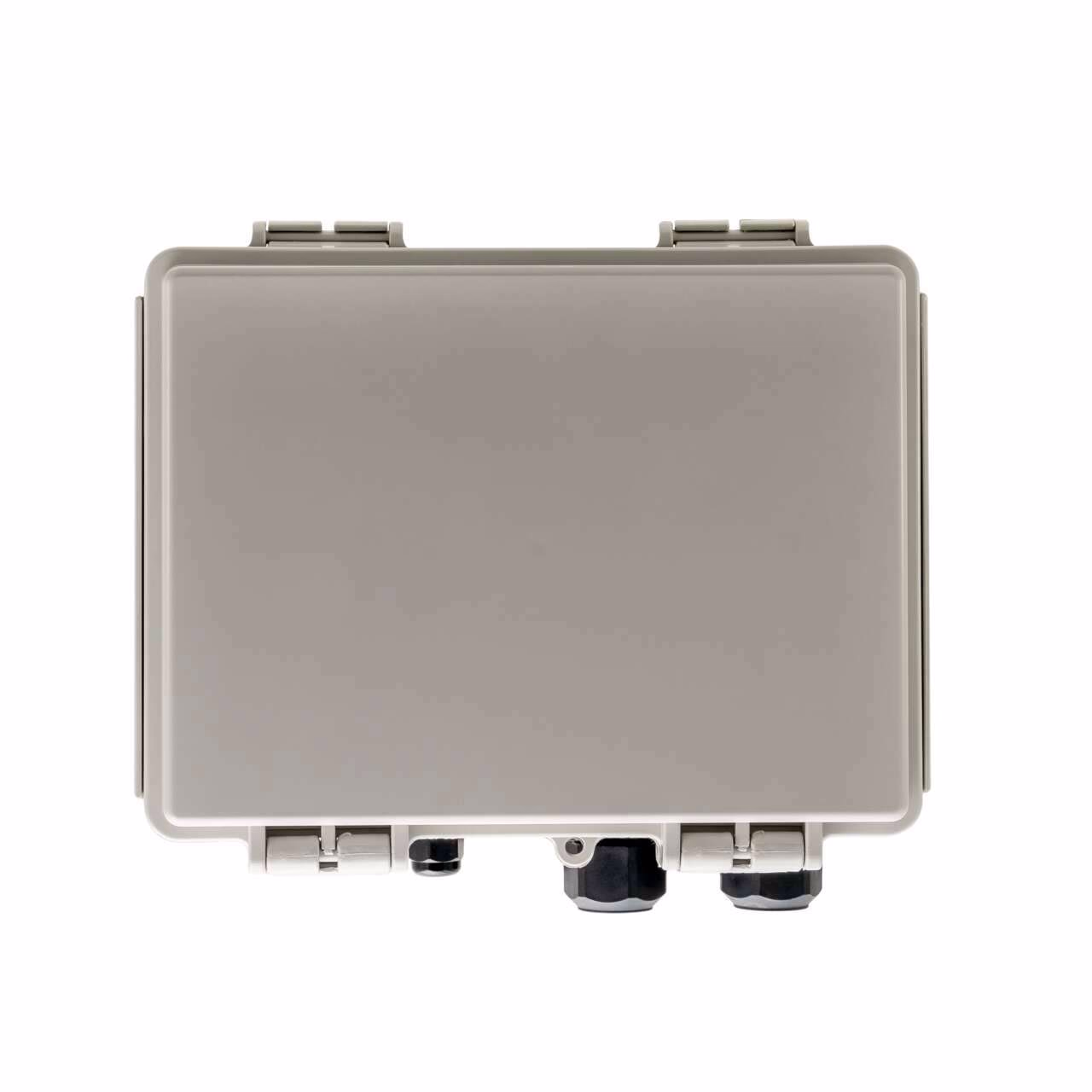

NEMA Rated Enclosure

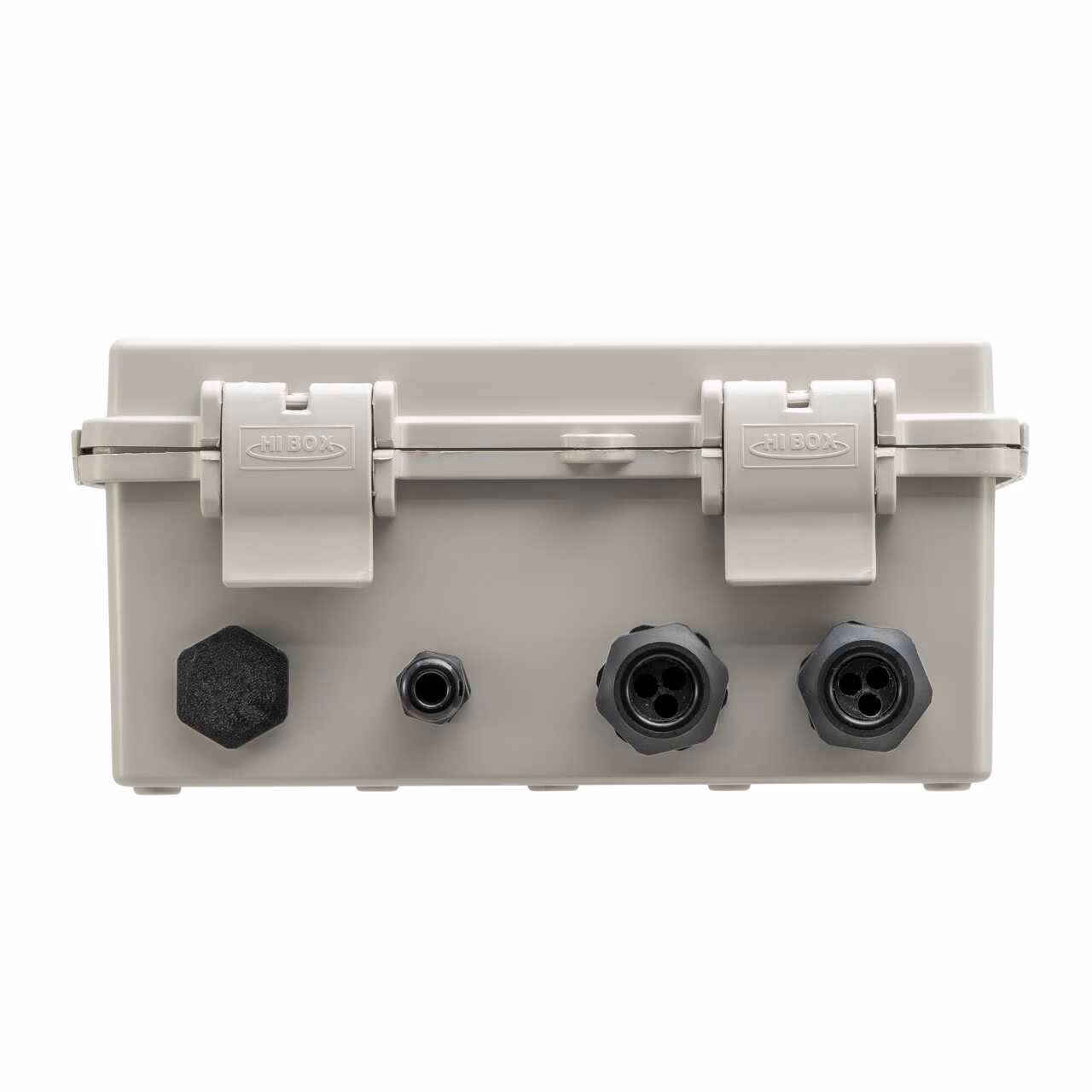

4 Holes with Glands & Vent
Battery Included
| Banner Cloud ID | No |
|---|---|
| Point-to-Multipoint Topology | Yes |
| Point-to-Point Topology | Yes |
| Relative Humidity | 95% |
| Ships With Battery | Yes |
| Star Topology | Yes |
| Tree Topology | Yes |
| Wireless Radio Frequency | 900 MHz |
| EtherNet/IP | No |
| Item Status | RELEASED |
| Modbus RTU | Yes |
| Operating voltage | 12-30 V dc |
| Power Good Output | Battery & DC Supply |
| Pressure type | No |
| Protection class shaft | IP66 |
| Radio interface | Yes |
| Receptacle housing material B | PBT |
| RS-232 | No |
| RS-485 | Yes |
| Min Op. Temperature (C) | -20.0 |
| Max Op. Temperature (C) | 60.0 |
| Battery Type/Size | LiFePO |
| Outside Housing Dimensions (cm) | 21.15 x 16.15 x 10.00 |
| Application.1 | Temperature Input |
Description
DXM100 S2D Controller
Multihop Radio 900 MHz
NEMA Rated Enclosure
4 Holes with Glands & Vent
Battery Included
