Detection Arrays and Wide Beam Sensors – Banner – EA5R1050XKQ

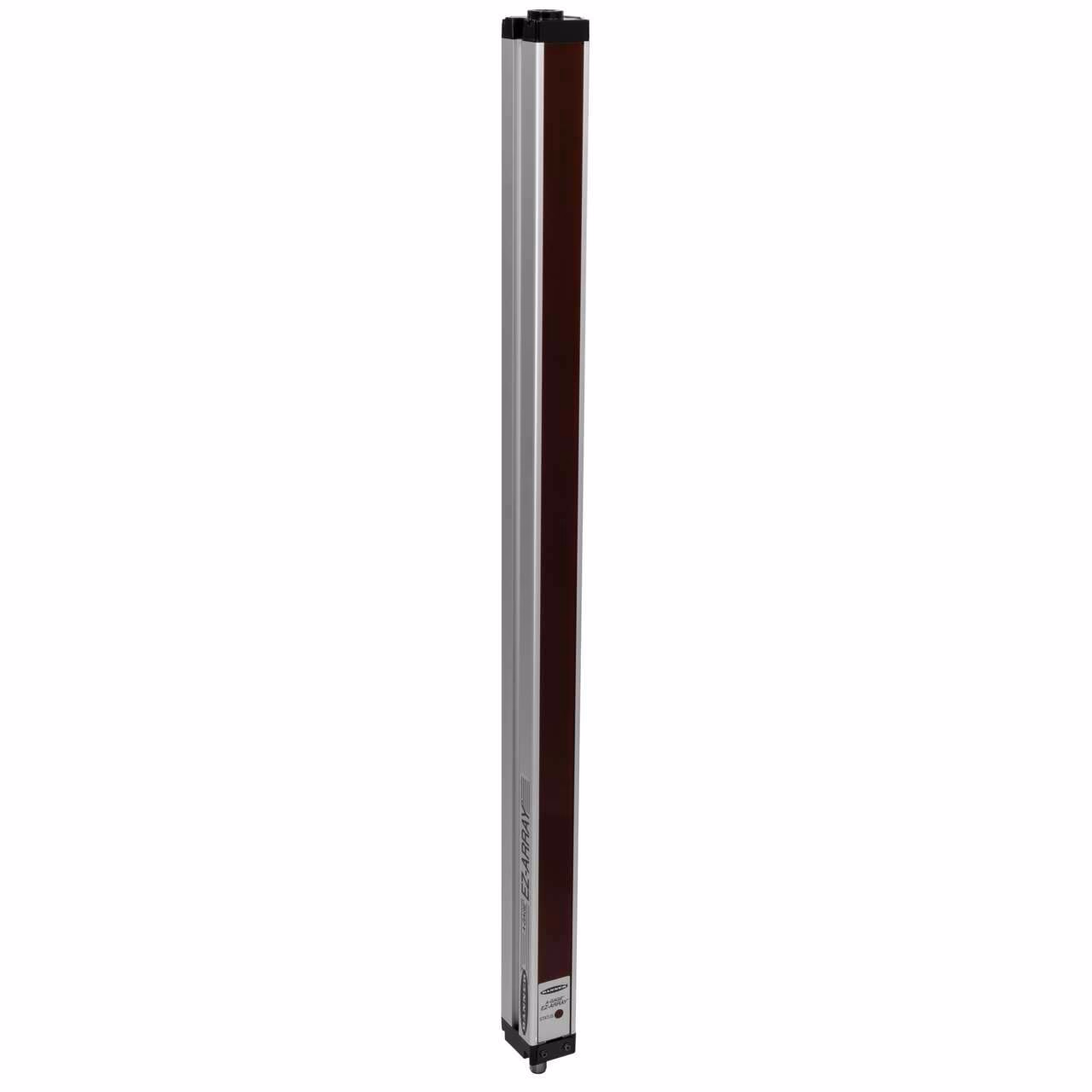

EA5R1050XKQ EZ-ARRAY 5 mm Optical Spacing x 1050 mm RECVR with IO-Link
Integral 8-pin M12
| Analog Output | Voltage (0-10 V) |
|---|---|
| Array Length (mm) | 1050 |
| Beam Spacing | 5 mm |
| Discrete Output | PNP / Push-Pull |
| Emitter/Receiver Range (m) | 0.4 – 4 |
| Housing Length (mm) | 1128 |
| Low Contrast | No |
| Max Relative Humidity | 95% |
| Min Temp (C) | -40 |
| Minimum Object Sensitivity (mm) | 5-10 |
| Short Range | No |
| Connection technology signal | Receiver |
| Device type | Two-Piece |
| DeviceNet | No |
| IO Link | Yes |
| Item Status | RELEASED |
| Modbus RTU | No |
| Number of beams | 210 |
| Operating voltage | 12-30 V dc |
| Port | M12 |
| Receptacle housing material B | Aluminum |
| RS-232 | No |
| RS-485 | No |
Description
EA5R1050XKQ EZ-ARRAY 5 mm Optical Spacing x 1050 mm RECVR with IO-Link
Integral 8-pin M12
