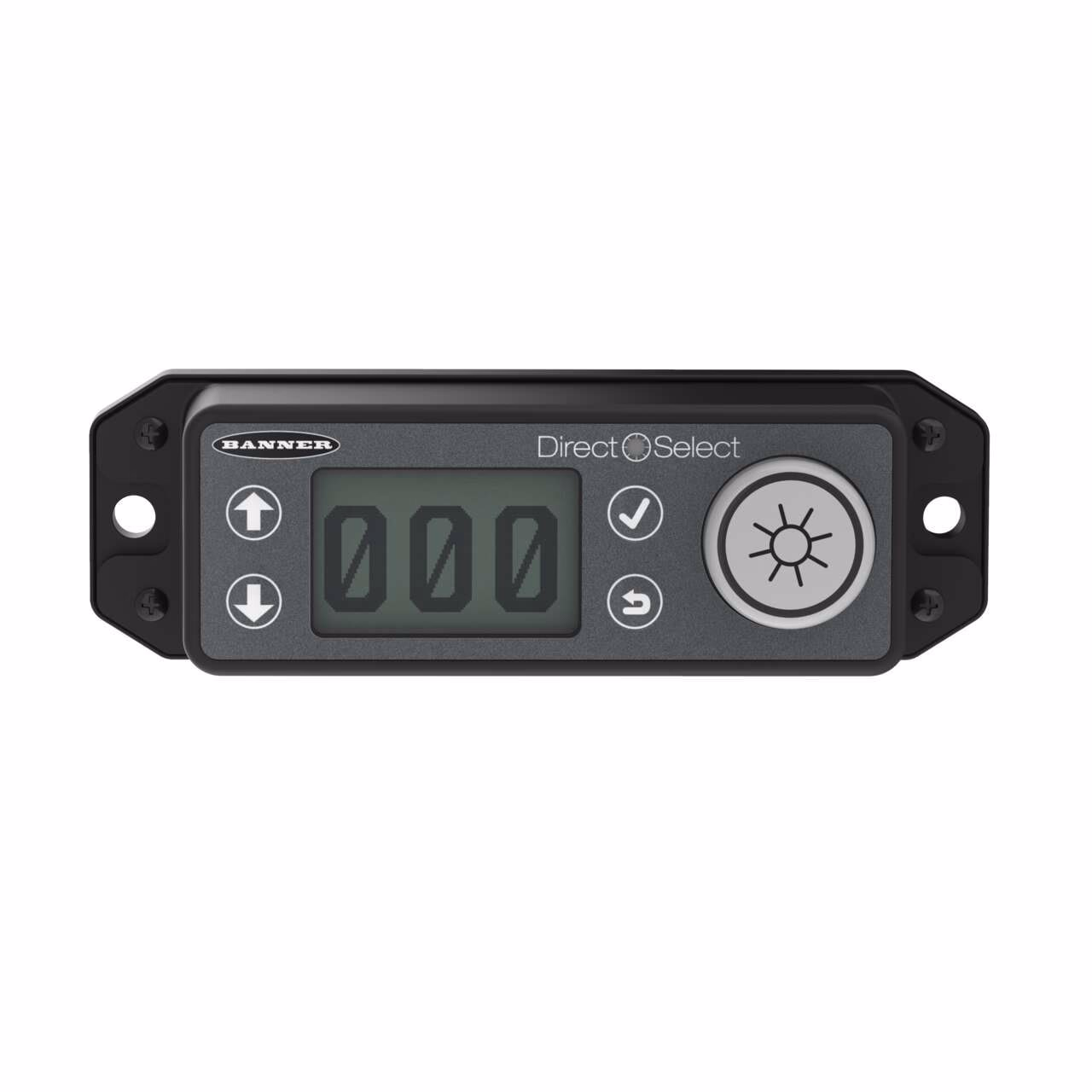

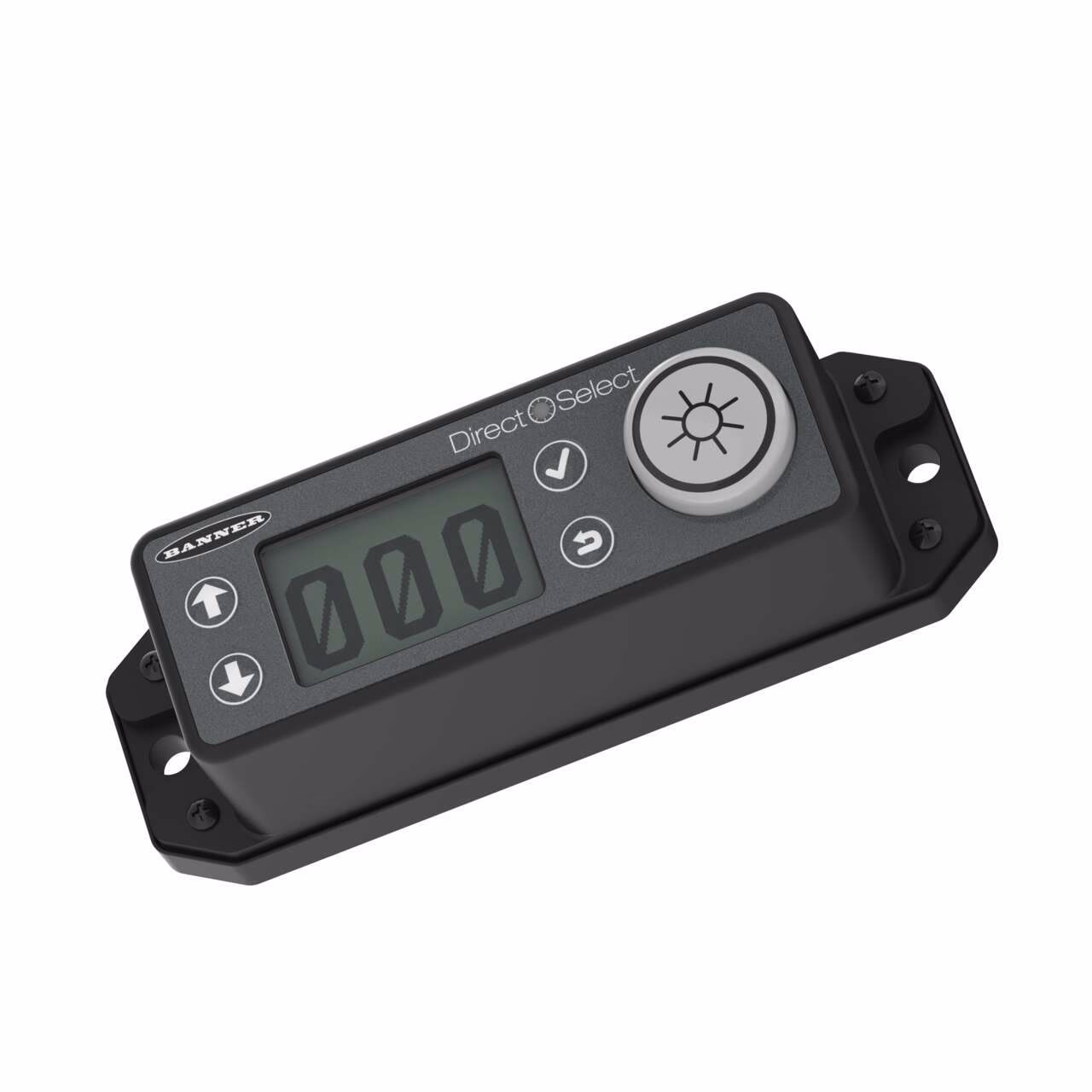

Direct Select – Banner – DX80N2DSTS
Wireless Operator Interface Node
2.4 GHz 65 mW, LCD Display 0-999
Multicolor Capacitive Touch
| 1-wire Serial Interface | No |
|---|---|
| LCD Display | Yes |
| Max Temp Operating Conditions (C) | 70.0 |
| Min Temp Operating Conditions (C) | -25.0 |
| Output Details | Multicolor indicator, numerical LCD |
| Point-to-Multipoint Topology | Yes |
| Point-to-Point Topology | Yes |
| Relative Humidity | 90% at 50° C |
| Ships With Battery | Yes |
| Star Topology | Yes |
| Tree Topology | No |
| Wireless Radio Frequency | 2.4 GHz |
| Cert | Australia/New Zealand, Brazil, Canada, European, Japan, Korea, Singapore, Taiwan, Thailand, US |
| Connection mode | 1 capacitive touch, 4 buttons |
| Device type | Sensor and Node |
| EtherNet/IP | No |
| Housing Style | Integrated Battery |
| Input/Output | Discrete |
| Intrinsically Safe | No |
| Item Status | RELEASED |
| Operating voltage | C Cell Lithium Battery |
| Power Good Output | Battery |
| PROFINET | No |
| Protection class shaft | IP65 |
| Radio interface | Yes |
| RS-232 | No |
| RS-485 | No |
| NEMA / UL Type Rating | NEMA 4X |
| Application.1 | Indicator Light, Pick-to-Light |
Description
Wireless Operator Interface Node
2.4 GHz 65 mW, LCD Display 0-999
Multicolor Capacitive Touch
