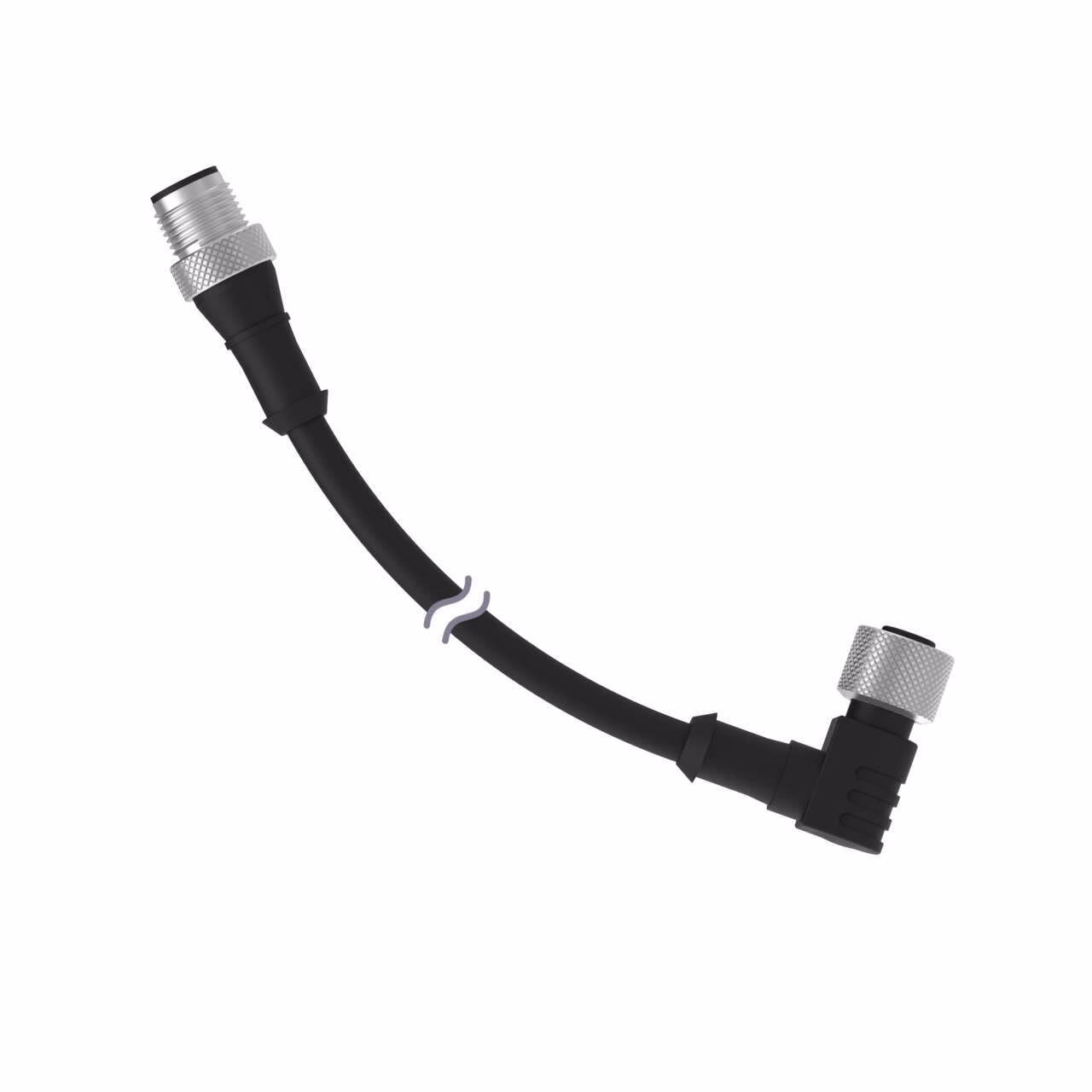

Double-Ended – Banner – MQDEC-403SR-PUR
Cordset: Double-Ended M12
4-pin Straight Male; 4-pin Right-Angle Female
1 m 4×22 Black PUR Jacket
Nickel-Plated Brass Coupling Nuts
| Cable Jacket Color | Black |
|---|---|
| Cable Jacket Material | PUR |
| Connector 2 Gender | Female |
| Connector 2 Key Code | A |
| Connector 2 Number of Contacts | 4.0 |
| Connector 2 Orientation | Right Angle |
| Cordset Length (m) | 1.0 |
| Coupling Nut Material | Nickel Plated Brass |
| Outside Cable Diameter (mm) | 4.06 |
| Shield/No Shield | No Shield |
| Coiled | No |
| Connector 1 Key Code | A |
| Connector 1 Orientation | Straight |
| Connector 1 Type | M12 |
| Connector 2 Type | M12 |
| Connector B | Male |
| Current (A) | 4.0 |
| Indication | No |
| Item Status | RELEASED |
| Number of Ends | Double Ended |
| Oil/Grease Resistant | Yes |
| Operating voltage | 250 V ac/dc |
| Overmold Material and Color | PUR Black |
| Protection class shaft | IP67 |
| Maximum Temp. (Celsius) | 70.0 |
| Number of pins.1 | 4.0 |
| Minimum Temp. (Celsius) | -40.0 |
| Trunk Length (m) | No Trunk |
Description
Cordset: Double-Ended M12
4-pin Straight Male; 4-pin Right-Angle Female
1 m 4×22 Black PUR Jacket
Nickel-Plated Brass Coupling Nuts
