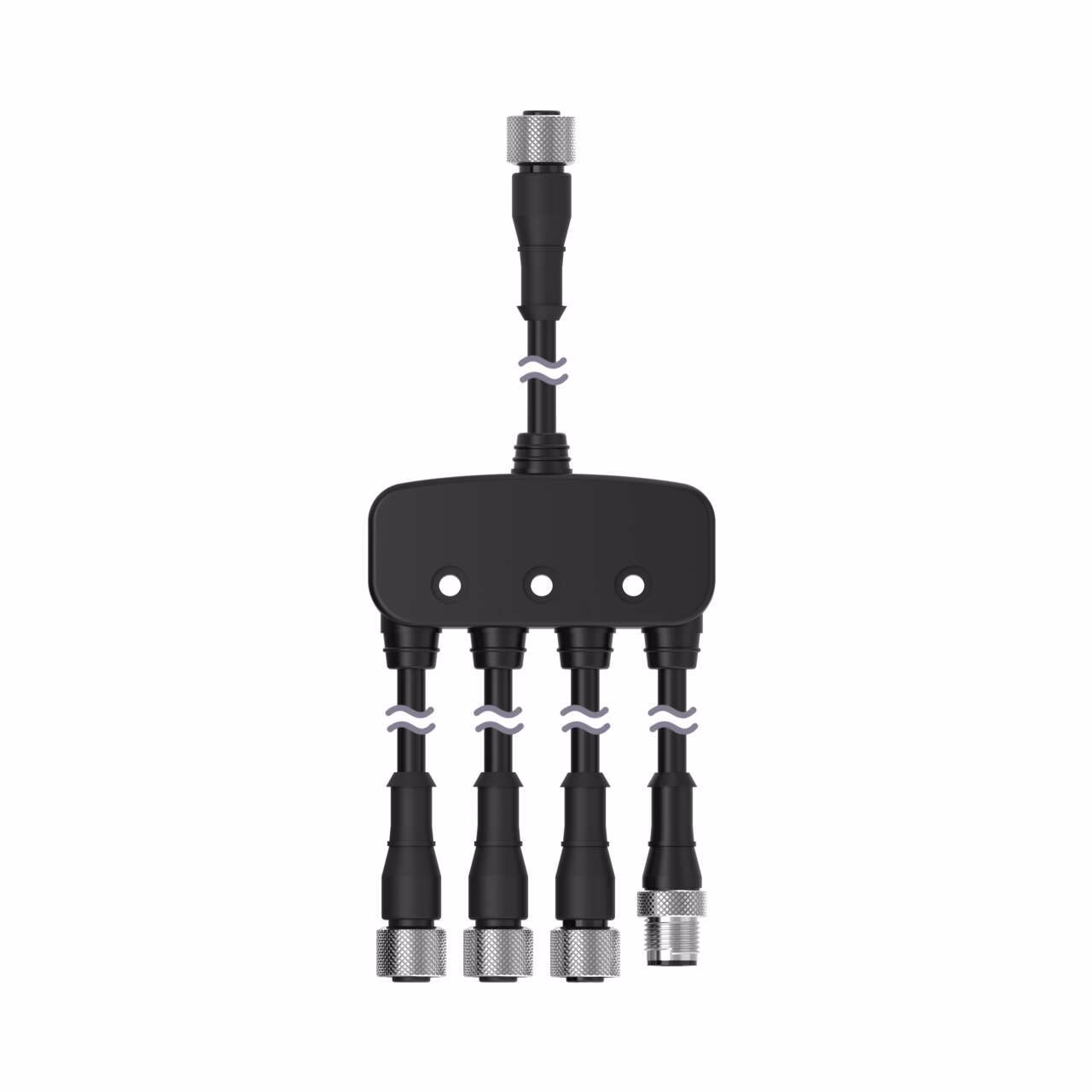

Splitters – Banner – CSM4-M1281M1251M1281
EZ-SCREEN LS, Accessory Muting
LS Muting Connection Cable
M12 QD Splitter Cable
8-pin Straight Female 0.3 m (1 ft) Trunk
5-pin Straight Female 0.3 m (1 ft) Branch 1 & 2
8-pin Straight Female 0.3 m (1 ft) Branch 3
12-pin Straight Male 0.3 m (1 ft) Branch 4; Special Wiring
| Shield/No Shield | No Shield |
|---|---|
| Cable quality | PVC |
| Current (A) | 2.0 |
| Indication | No |
| Item Status | RELEASED |
| Oil/Grease Resistant | No |
| Operating voltage | 75 V ac/dc |
| Protection class shaft | IP67 |
| Radiation direction | Straight, Straight, Straight, Straight |
| Start/Restart interlock | 4-port |
| Maximum Temp. (Celsius) | 105.0 |
| Minimum Temp. (Celsius) | -40.0 |
| Trunk Length (m) | 0.30 |
| Number of Branches | 4.0 |
| Branches: Number of Contacts | 5, 5, 8, 12 |
| Connector type.1 | M12, M12, M12, M12 |
| Branches: Genders | Female, Female, Female, Male |
| Trunk: Connector Type | M12 |
| Wiring | Custom |
| Splitter: Overmold Material and Color | PUR Black |
| Trunk: Number of Contacts | 8.0 |
| Trunk: Gender | Female |
| Trunk: Orientation | Straight |
| Branches: Cable Jacket Material | PVC, PVC, PVC, PVC |
Description
EZ-SCREEN LS, Accessory Muting
LS Muting Connection Cable
M12 QD Splitter Cable
8-pin Straight Female 0.3 m (1 ft) Trunk
5-pin Straight Female 0.3 m (1 ft) Branch 1 & 2
8-pin Straight Female 0.3 m (1 ft) Branch 3
12-pin Straight Male 0.3 m (1 ft) Branch 4; Special Wiring
