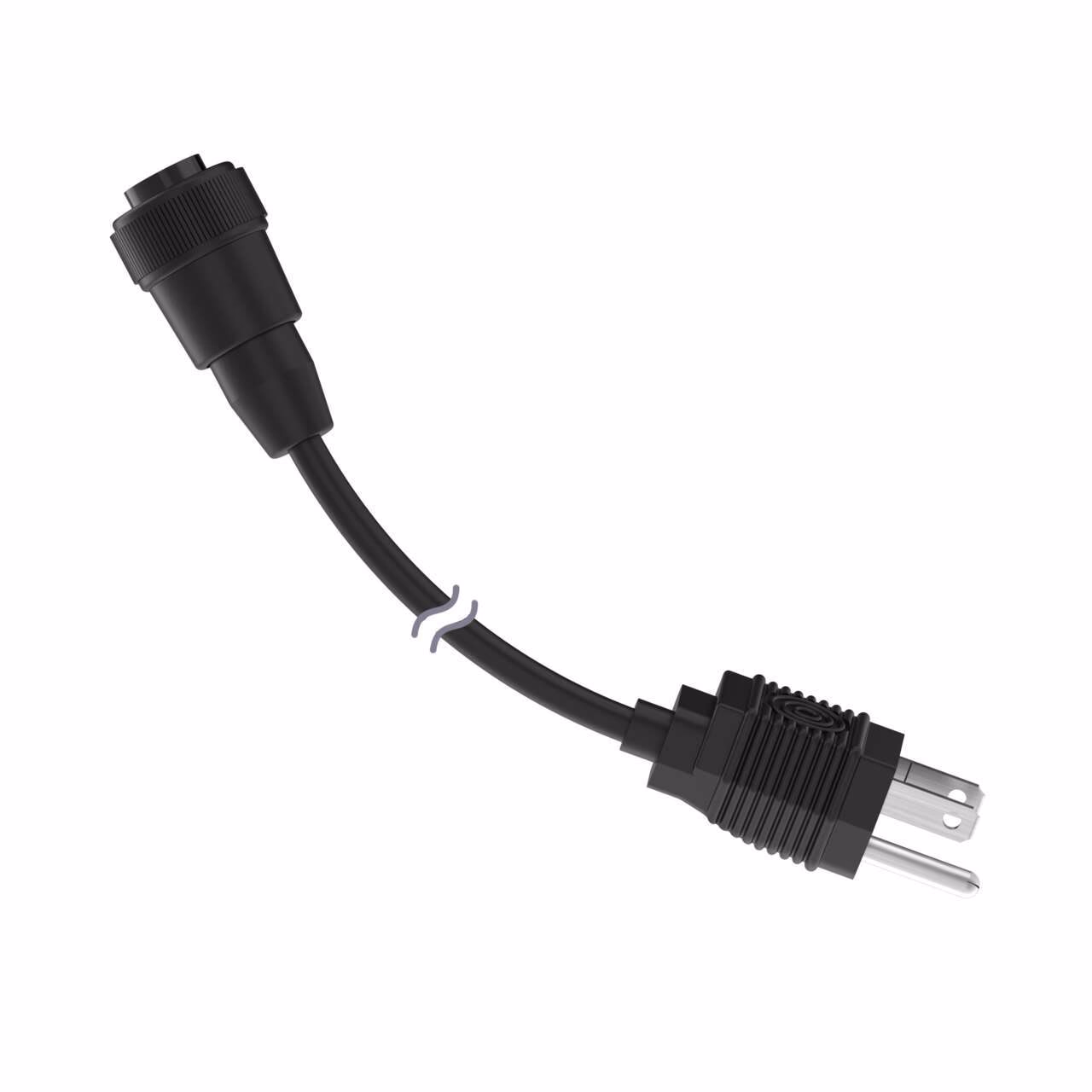

Double-Ended – Banner – SM30CC-306-WP
Cordset: Double-Ended 7/8 in to AC Plug
3-pin Straight Female; 3-pin Straight Male
1.83 m 3×18 Black PVC Jacket
Nickel-Plated Brass Coupling Nuts
| Cable Jacket Color | Black |
|---|---|
| Cable Jacket Material | PVC |
| Connector 2 Gender | Male |
| Connector 2 Number of Contacts | 3.0 |
| Connector 2 Orientation | Straight |
| Cordset Length (m) | 1.83 |
| Coupling Nut Material | Nickel Plated Brass |
| Outside Cable Diameter (mm) | 6.6 |
| Shield/No Shield | No Shield |
| Coiled | No |
| Connector 1 Orientation | Straight |
| Connector 1 Type | 7/8 in. (Mini) |
| Connector 2 Type | AC Plug |
| Connector B | Female |
| Current (A) | 9.0 |
| Indication | No |
| Item Status | RELEASED |
| Number of Ends | Double Ended |
| Oil/Grease Resistant | No |
| Operating voltage | 300 V ac/dc |
| Overmold Material and Color | PUR Black |
| Protection class shaft | IP50 |
| Maximum Temp. (Celsius) | 70.0 |
| Number of pins.1 | 3.0 |
| Minimum Temp. (Celsius) | -20.0 |
| Trunk Length (m) | No Trunk |
Description
Cordset: Double-Ended 7/8 in to AC Plug
3-pin Straight Female; 3-pin Straight Male
1.83 m 3×18 Black PVC Jacket
Nickel-Plated Brass Coupling Nuts
