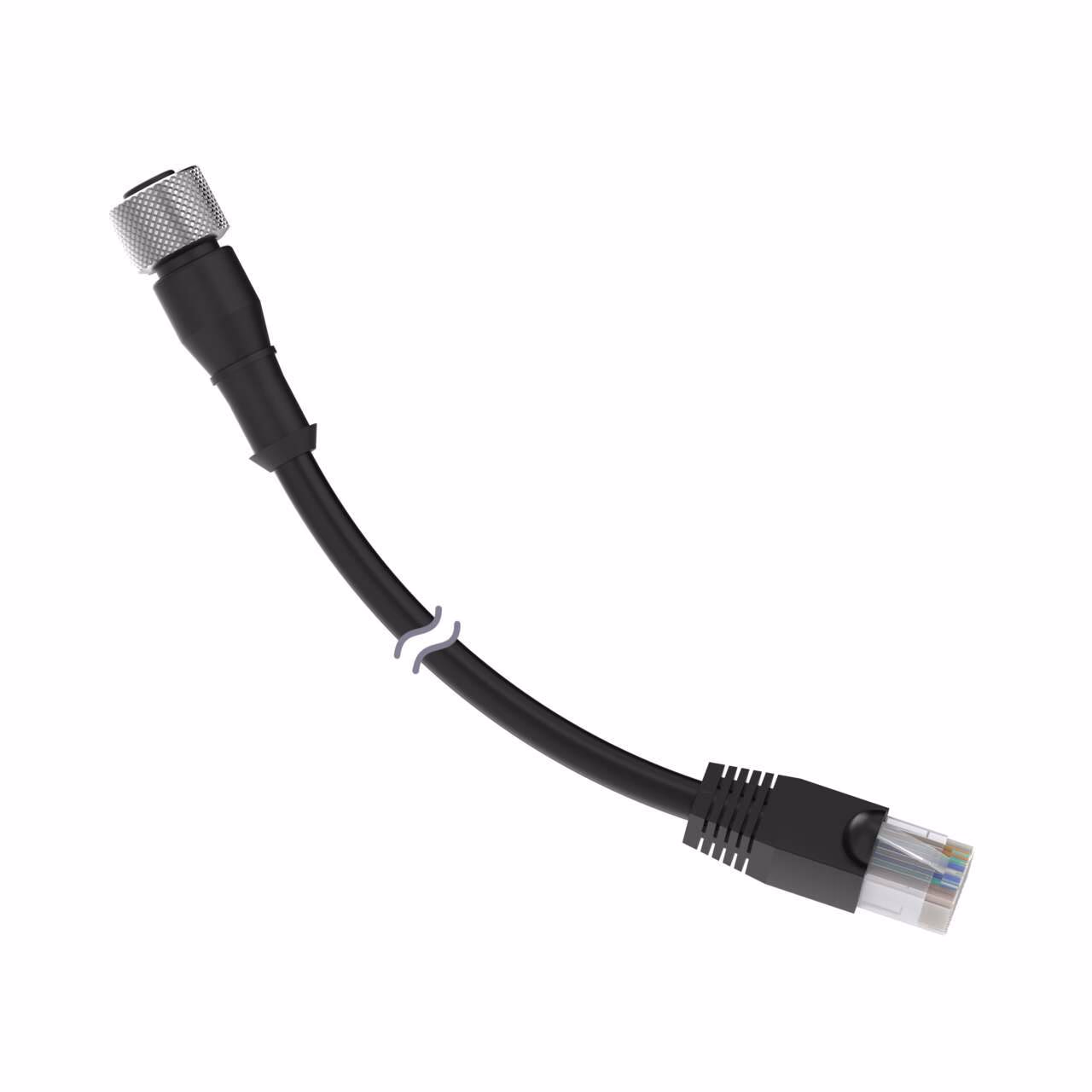

Double-Ended – Banner – STPF-M12-820

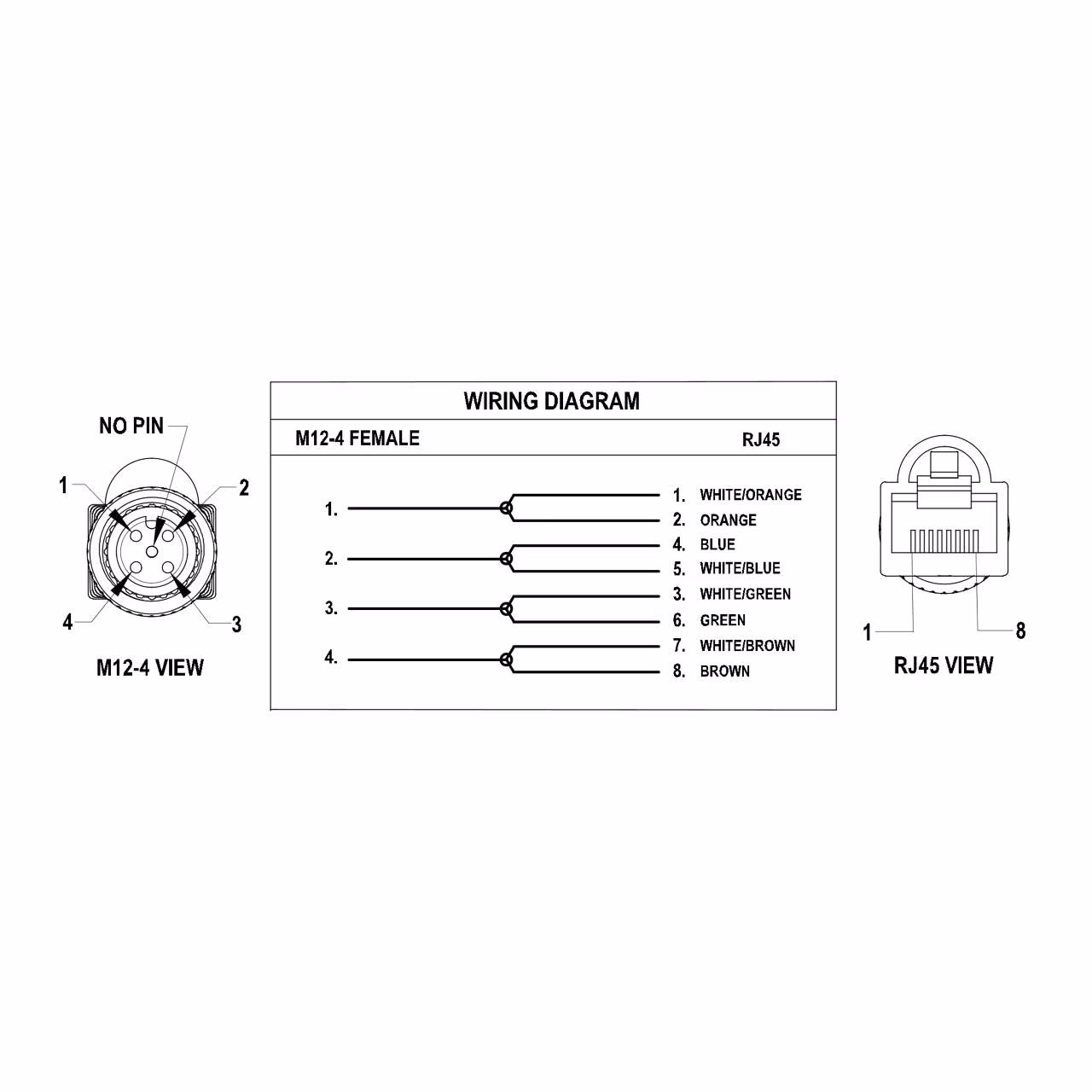

Cordset: Double-Ended A-Code M12 to RJ45
4-pin Straight Female; 8-pin Straight Male Connectors with Shield
6.1 m (20.01 ft) Black PVC Jacket
Nickel-Plated Brass Coupling Nuts
| Application | Data |
|---|---|
| Cable Jacket Color | Black |
| Cable Jacket Material | PVC |
| Connector 1 Body Size | Standard |
| Connector 1 Coupling Nut Material | Nickel Plated Brass |
| Connector 1 Overmold Material and Color | PUR Black |
| Connector 1 Shield | No Shield |
| Connector 1 Thread/Snap | Threaded |
| Connector 2 Gender | Male |
| Connector 2 Number of Contacts | 8.0 |
| Connector 2 Orientation | Straight |
| Connector 2 Overmold Material and Color | PVC Black |
| Cordset Length (m) | 6.1 |
| Coupling Nut Material | Nickel Plated Brass |
| Number of Conductors | 8.0 |
| Outside Cable Diameter (mm) | 6.20 |
| Shield/No Shield | Shield – Floating to Drain |
| Wire AWG | 24 |
| Connector 1 Key Code | A |
| Connector 1 Orientation | Straight |
| Connector 1 Type | M12 |
| Connector 2 Type | RJ45 |
| Connector B | Female |
| Current (A) | 1.5 |
| Item Status | RELEASED |
| Number of Ends | Double Ended |
| Oil/Grease Resistant | No |
| Operating voltage | 30 V dc |
| Overall shield | No Shield |
| Overmold Material and Color | PUR Black |
| Protection class shaft | IP67 |
| Maximum Temp. (Celsius) | 70.0 |
| Number of pins.1 | 4.0 |
| Minimum Temp. (Celsius) | -40.0 |
Description
Cordset: Double-Ended A-Code M12 to RJ45
4-pin Straight Female; 8-pin Straight Male Connectors with Shield
6.1 m (20.01 ft) Black PVC Jacket
Nickel-Plated Brass Coupling Nuts
