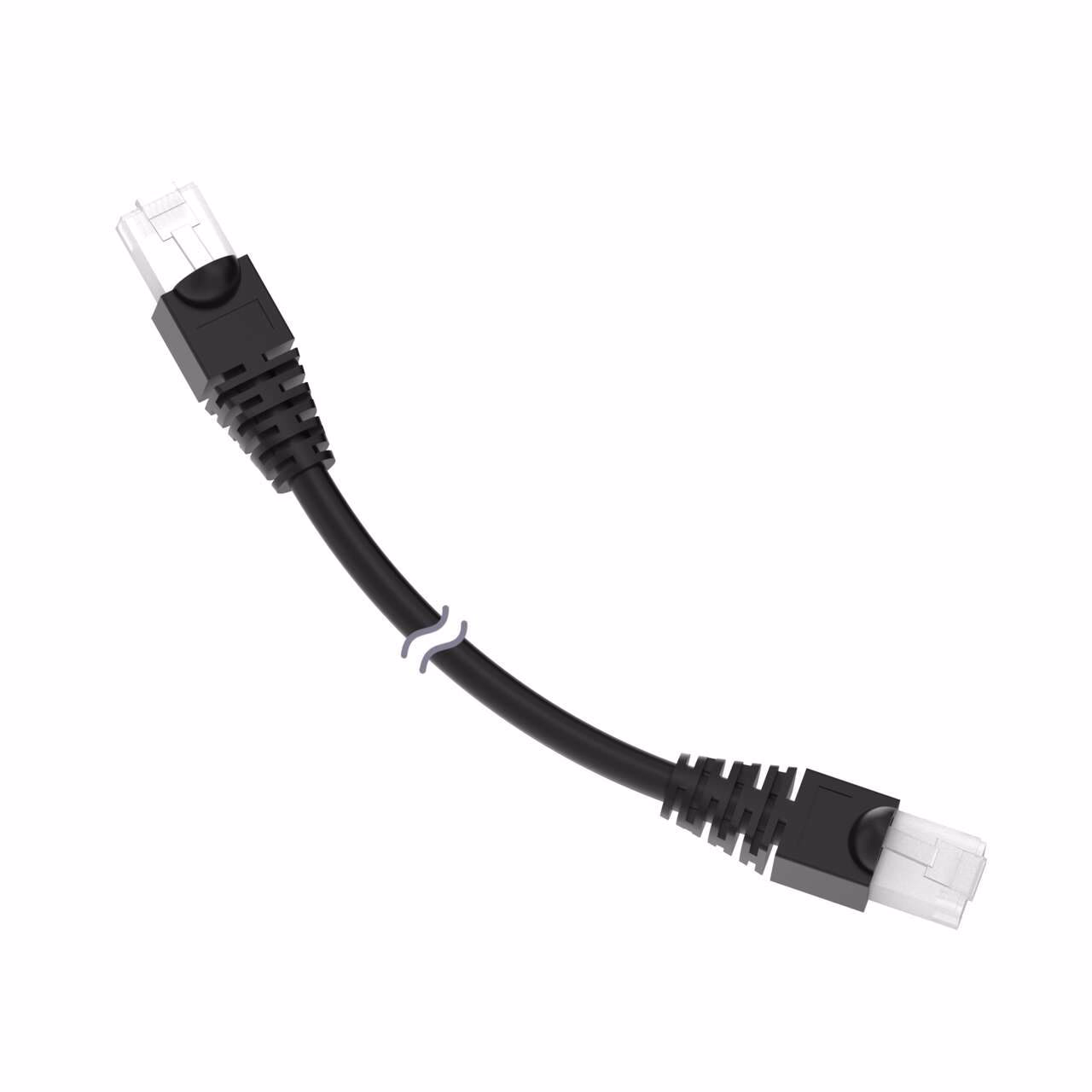

Double-Ended – Banner – STPX50
Cordset: Double-Ended RJ45
8-pin Straight Male; 8-pin Straight Male Shielded
15.5 m 8×24 Black PVC Jacket
PVC Black
| AWG | 24 |
|---|---|
| Application | Data |
| Cable Jacket Color | Black |
| Cable Jacket Material | PVC |
| Connector 2 Gender | Male |
| Connector 2 Number of Contacts | 8 |
| Connector 2 Orientation | Straight |
| Cordset Length (m) | 15.5 |
| Outside Cable Diameter (mm) | 6 |
| Shield/No Shield | Shield – Tied to Coupling Nut |
| Connector 1 Orientation | Straight |
| Connector 1 Type | RJ45 |
| Connector 2 Type | RJ45 |
| Connector B | Male |
| Current (A) | 1.5 |
| Item Status | RELEASED |
| Number of Ends | Double Ended |
| Oil/Grease Resistant | No |
| Operating voltage | 60 V dc |
| Overall shield | Shield – Tied to Coupling Nut |
| Overmold Material and Color | PVC Black |
| Protection class shaft | IP20 |
| Maximum Temp. (Celsius) | 70 |
| Number of pins.1 | 8 |
| Minimum Temp. (Celsius) | -40 |
| Trunk Length (m) | No Trunk |
Description
Cordset: Double-Ended RJ45
8-pin Straight Male; 8-pin Straight Male Shielded
15.5 m 8×24 Black PVC Jacket
PVC Black
