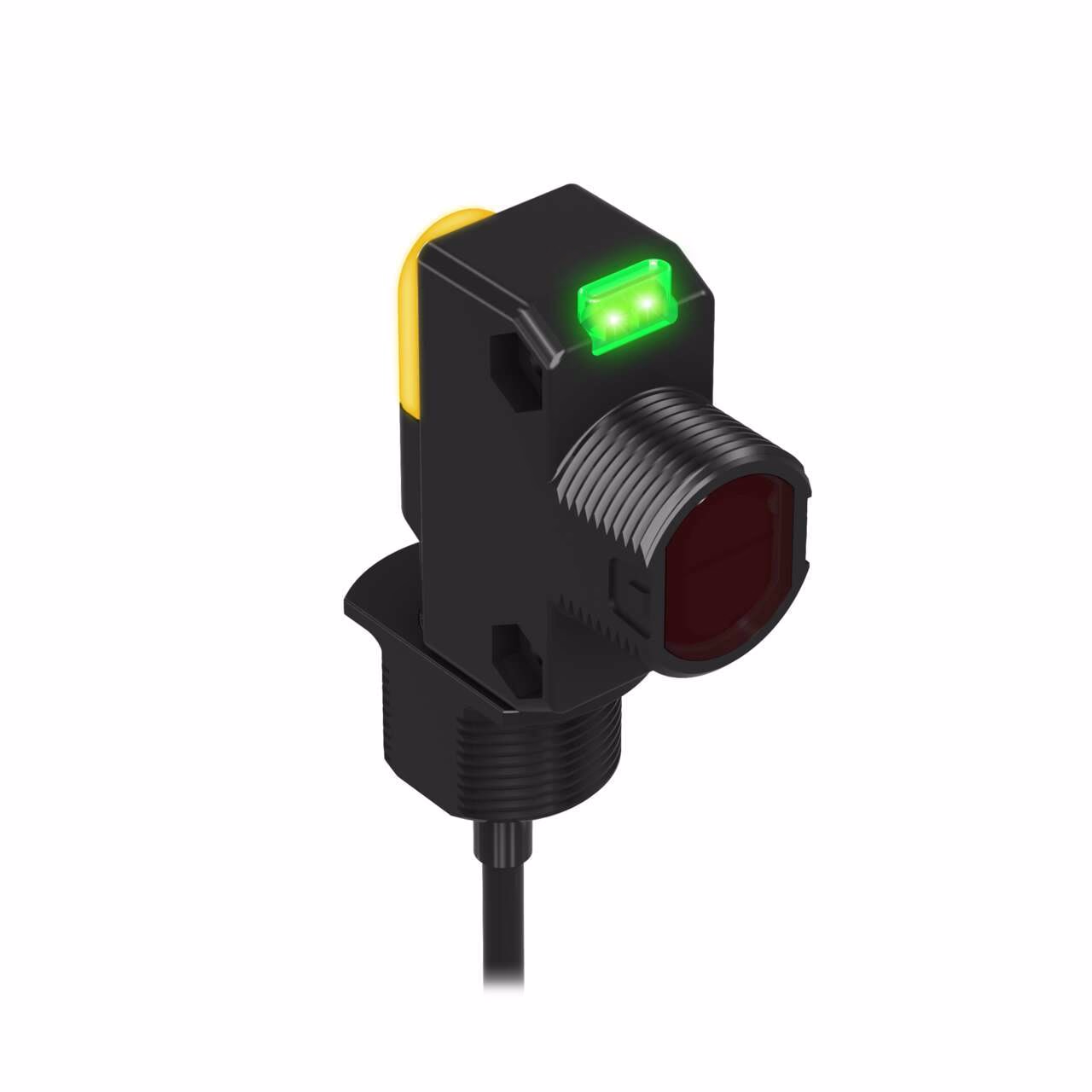

DS18 Series Wide Beam Barrel-Mount Sensor – Banner – DS18VP6LP W/30
DS18 VP6LP W/30 FT PNP POL RETRO
| Connection | Cable |
|---|---|
| Feature: Audible | No |
| Outputs | PNP |
| Sensing Mode (General) | Retroreflective |
| Connection technology signal | Polarized |
| DeviceNet | No |
| Homerun Exit Location | 2 |
| Housing Style | Rectangular w/M18 Mount |
| Indicator | LEDs |
| Input/Output | Discrete |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 4 |
| Operating voltage | 10-30 V dc |
| Operation | Light/Dark Operate |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Visible Red LED |
| Sensing Beam Wavelength | 660 |
| Min Op. Temperature (C) | -20 |
| NEMA / UL Type Rating | NEMA 4X |
| Slot width (mm) | 9 |
| Delay at Power-up (ms) | 100 |
| Max Sensing Distance (mm) | 3500 |
| Max Op. Temp. (C) | 70 |
| Max Op. Relative Humidity (%) | 90% @ 50°C |
| Barrel Diameter (mm) | 18 |
| Repeatability (µs) | 350 |
Description
DS18 VP6LP W/30 FT PNP POL RETRO
