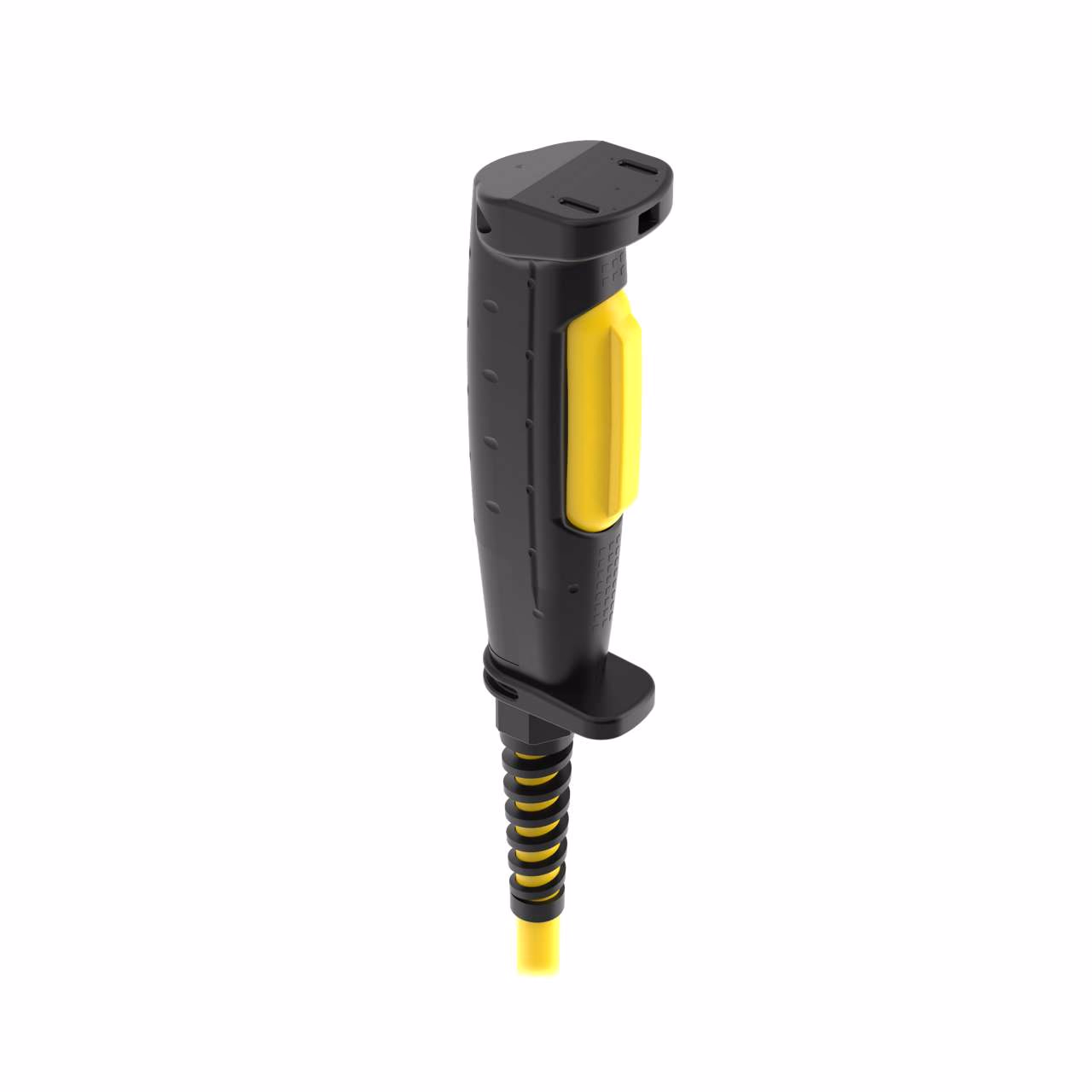

ED1G Series Safety Enabling Device – Banner – ED1G-L20MB-1N
Three-position Enabling Device: 2 N/O Contacts
2 N/O momentary pushbutton
M20 x 1.5 conduit
Cordset strain relief provided
| Connection | Integral QD |
|---|---|
| Contact Quantity | 2 NO, 2 NO Push-Button |
| Contact Rating | 2 A @ 24 V dc |
| Dimensions (HxWxD mm ) | 269 x 46 x 58 |
| Max Operating Temperature (C) | 60 |
| Min Operating Temperature (C) | -10 |
| Actuation | Manual |
| Device type | Enabling Switch |
| Feature | Quick Disconnect |
| Housing Style | HandleGrip Switch w/ Momentary Push Button |
| Item Status | RELEASED |
| Protection class shaft | IP65 |
| Receptacle housing material B | Thermoplastic |
| Voltage supply connection | Wiring Chamber |
Description
Three-position Enabling Device: 2 N/O Contacts
2 N/O momentary pushbutton
M20 x 1.5 conduit
Cordset strain relief provided
