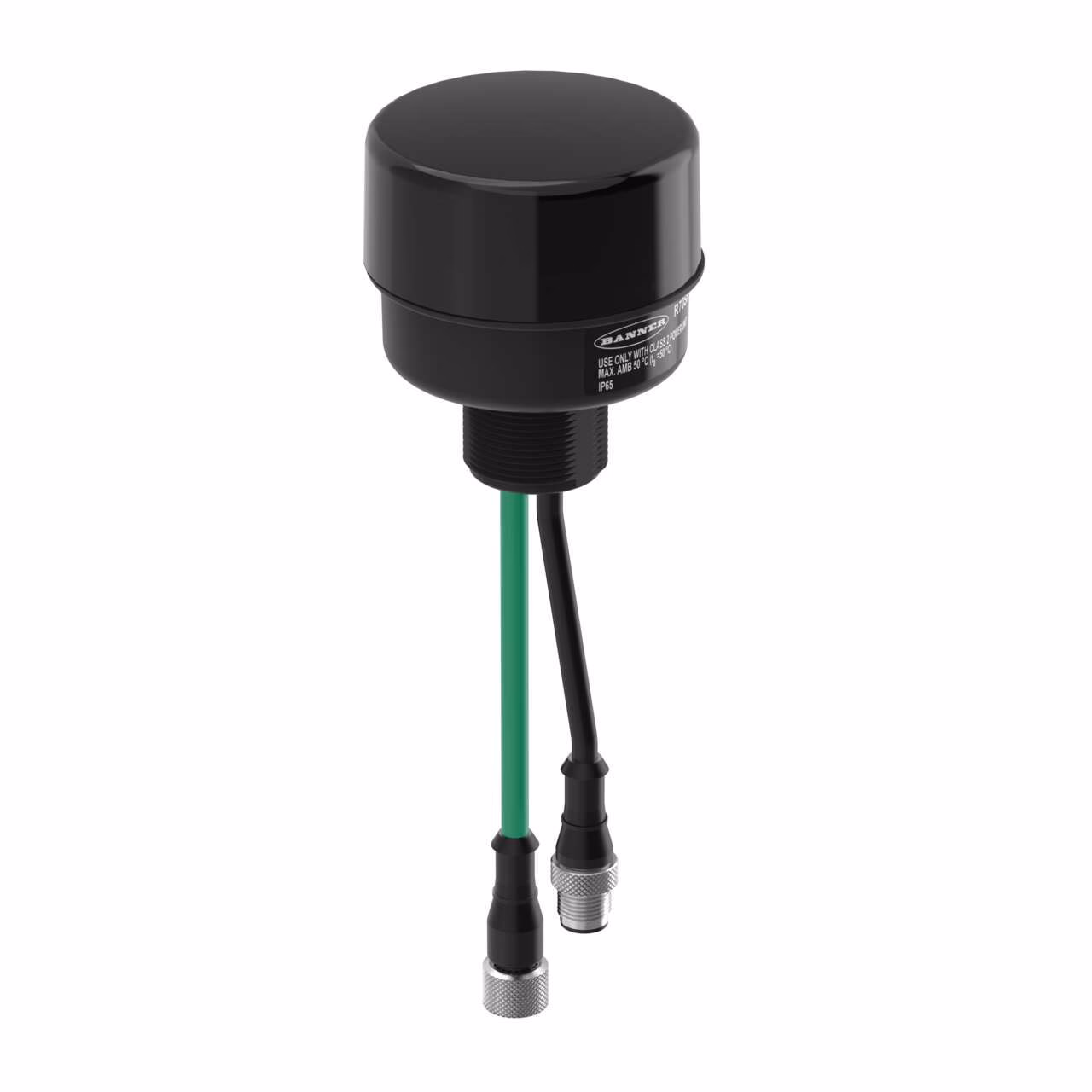

Ethernet Data Radios – Banner – R70ER9MQ
R70 Ethernet Data Radio 900 MHz 500 mW
10-30 V dc, Internal Antenna
4-pin M12 Male QD
4-pin D-Code M12 Female QD
| 1-wire Serial Interface | No |
|---|---|
| Analog Inputs | No |
| Analog Outputs | No |
| Discrete Inputs | No |
| Discrete Outputs | No |
| Ethernet Connector Type | M12 (D-Code Ethernet) |
| LCD Display | No |
| Max Temp Operating Conditions (C) | 50.0 |
| Min Temp Operating Conditions (C) | -40.0 |
| Output Details | Ethernet |
| Point-to-Multipoint Topology | Yes |
| Point-to-Point Topology | Yes |
| Relative Humidity | 90% at 50° C |
| Star Topology | Yes |
| Tree Topology | Yes |
| Wireless Radio Frequency | 900 MHz |
| Cert | Australia/New Zealand, Canada, Thailand |
| Connection mode | Ethernet |
| Device type | Multihop Data Radio |
| EPLAN Original Sent Date | 09/22/2023 |
| EPLAN Status | Published |
| EtherNet/IP | Yes |
| Housing Style | Base |
| Intrinsically Safe | No |
| Item Status | RELEASED |
| Operating voltage | 10-30 V dc |
| Power Good Output | DC |
| PROFINET | No |
| Protection class shaft | IP65 |
| Radio interface | Yes |
| RS-232 | No |
| RS-485 | No |
| NEMA / UL Type Rating | NEMA 4X |
| Options Available | Modbus |
Description
R70 Ethernet Data Radio 900 MHz 500 mW
10-30 V dc, Internal Antenna
4-pin M12 Male QD
4-pin D-Code M12 Female QD
