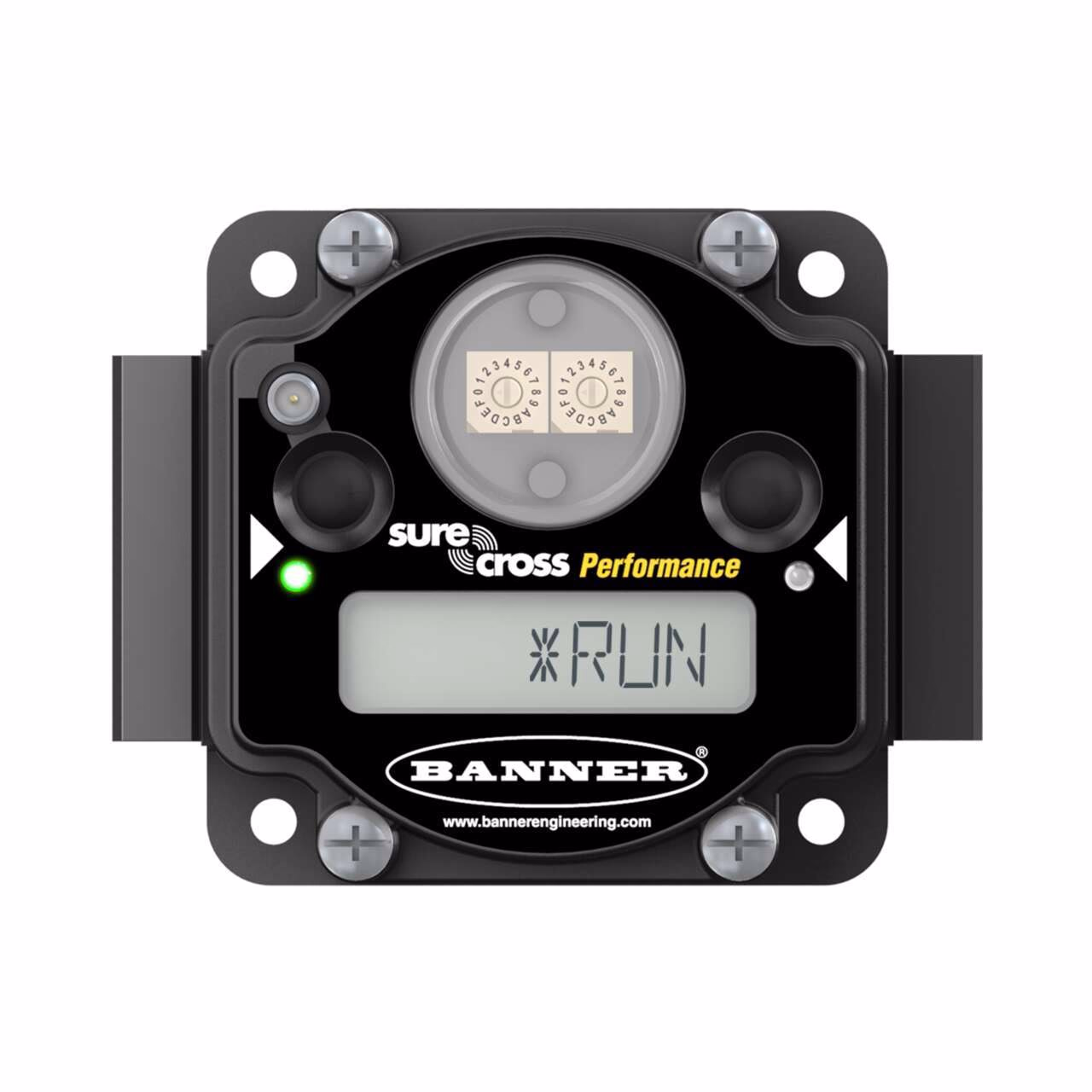

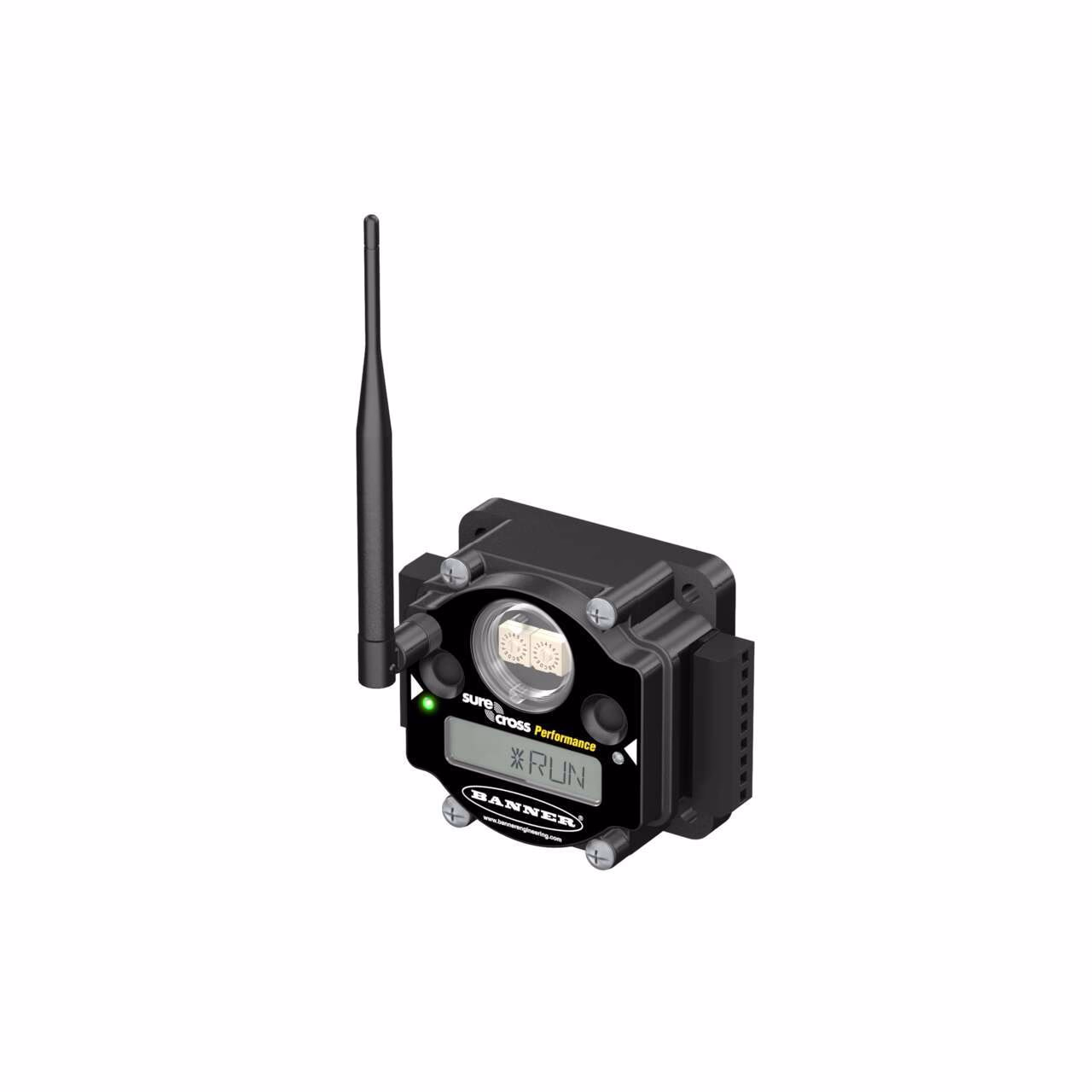

PM Series – Wire Replacement – Banner – DX80G9M6S-PM8C
PM Series Gateway – LCD Selectable I/O Mapping
900 MHz IP20, NEMA 1
Inputs: Six Sourcing/PNP Discrete
Outputs: Six Sourcing/PNP Discrete
External Terminals
| 1-wire Serial Interface | No |
|---|---|
| Discrete Input Type | PNP |
| Discrete Output Type | PNP |
| LCD Display | Yes |
| Max Operating Temperature (C) | 85.0 |
| Max Temp Operating Conditions (C) | 85.0 |
| Min Operating Temperature (C) | -40.0 |
| Min Temp Operating Conditions (C) | -40.0 |
| Number of Discrete Inputs | 6 |
| Output Details | 6 PNP Discrete |
| Point-to-Multipoint Topology | Yes |
| Point-to-Point Topology | Yes |
| Star Topology | Yes |
| Tree Topology | No |
| Wireless Radio Frequency | 900 MHz |
| Cert | Australia/New Zealand, Canada, Korea, Thailand |
| Connection mode | 6 PNP Discrete |
| Device type | Gateway |
| Digital output | 6 |
| EtherNet/IP | No |
| Feature | Hazardous Area |
| Housing Style | External Terminals |
| Input/Output | Discrete |
| Intrinsically Safe | No |
| Item Status | RELEASED |
| Modbus RTU | Yes |
| Operating voltage | 10-30 V dc |
| Power Good Output | DC |
| PROFINET | No |
| Protection class shaft | IP20 |
| Radio interface | Yes |
| RS-232 | No |
| RS-485 | Yes |
| NEMA / UL Type Rating | NEMA 4X |
Description
PM Series Gateway – LCD Selectable I/O Mapping
900 MHz IP20, NEMA 1
Inputs: Six Sourcing/PNP Discrete
Outputs: Six Sourcing/PNP Discrete
External Terminals
