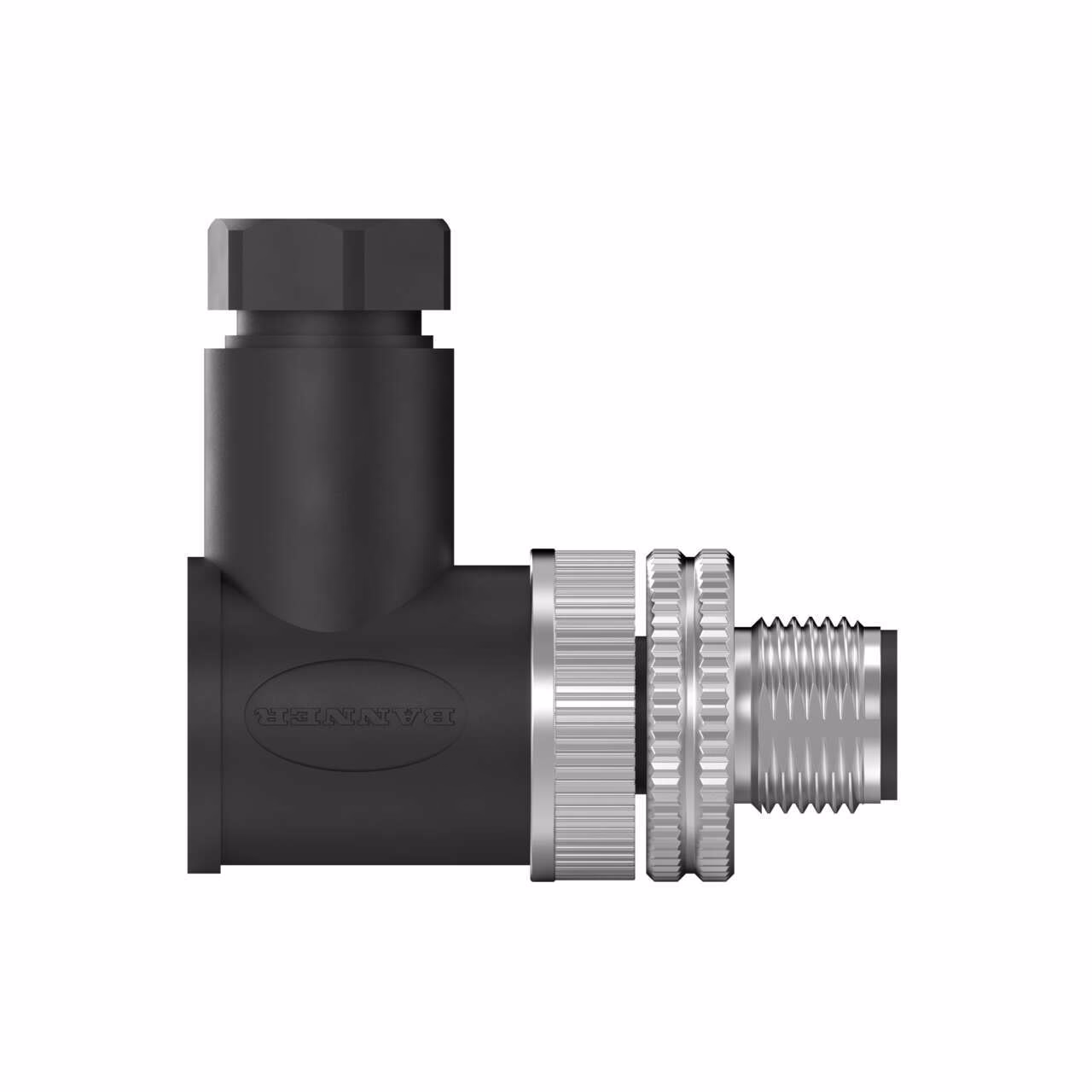

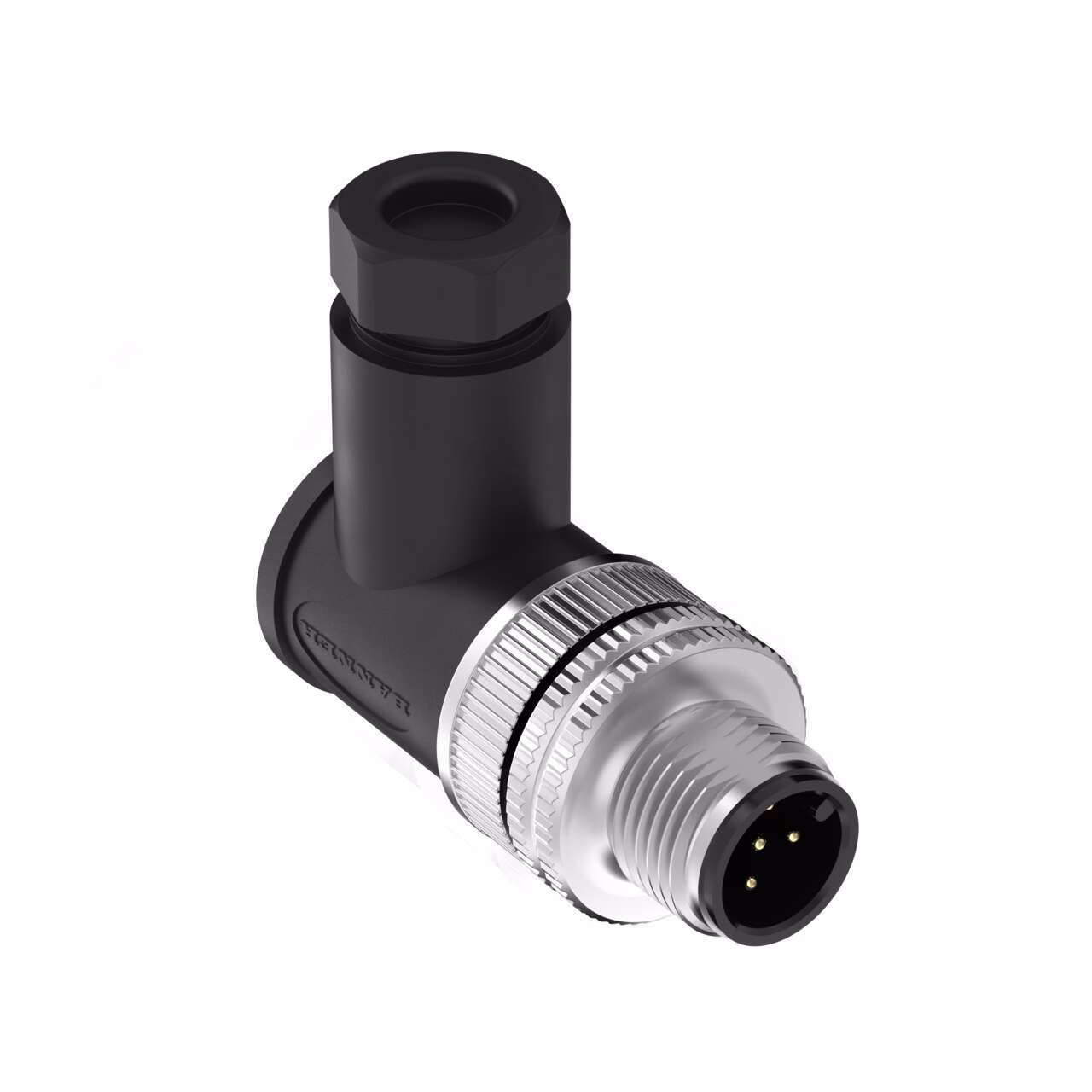

Field Wireable – Banner – BFW-M12M4A-6X
Field Wireable: M12
4-pin Right-Angle Male
22 AWG 4-6 mm Cable Range; Screw Terminal
Plastic Black Body; Aluminum Alloy Coupling Nut
| Connector 1 Thread/Snap | Threaded |
|---|---|
| Coupling Nut Material | Aluminum Alloy |
| Outside Cable Diameter (mm) | 4-6 |
| Wire AWG | 22 |
| Connector 1 Key Code | A |
| Connector 1 Orientation | Right Angle |
| Connector 1 Type | M12 |
| Connector B | Male |
| Indication | No |
| Item Status | RELEASED |
| Overmold Material and Color | PA + GF Black |
| Termination | Screw Terminal |
| Number of pins.1 | 4.0 |
Description
Field Wireable: M12
4-pin Right-Angle Male
22 AWG 4-6 mm Cable Range; Screw Terminal
Plastic Black Body; Aluminum Alloy Coupling Nut
