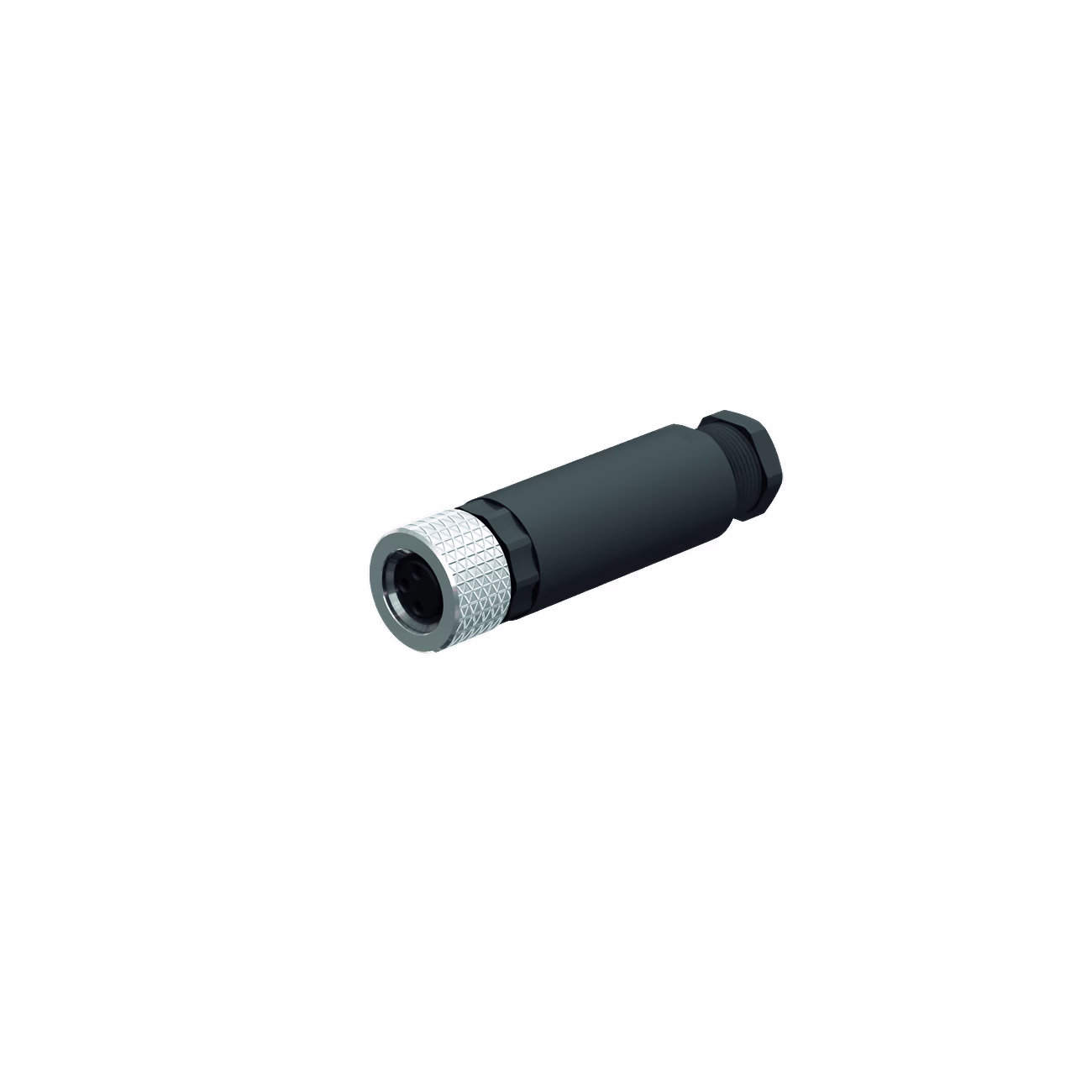

Field-Wireable Connector B5133-0
Field-Wireable Connector
| Ambient temperature max. (°C) | 85 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Application | Signal |
| Approvals | cULus recognized |
| Connection mode | Screw/clamp connection |
| Connector A | Female, M8×1, Straight |
| Coupling nut/screw material A | Die-cast Zinc |
| Cross-sectional connection max. (mm²) | 0.5 mm² |
| Current (A) | 4 |
| Device type | Field-wireable connector |
| Number of pins | 3 |
| Plug body | Plastic |
| Screw-in thread | M11 × 0.75 |
| Voltage output | 60 |
