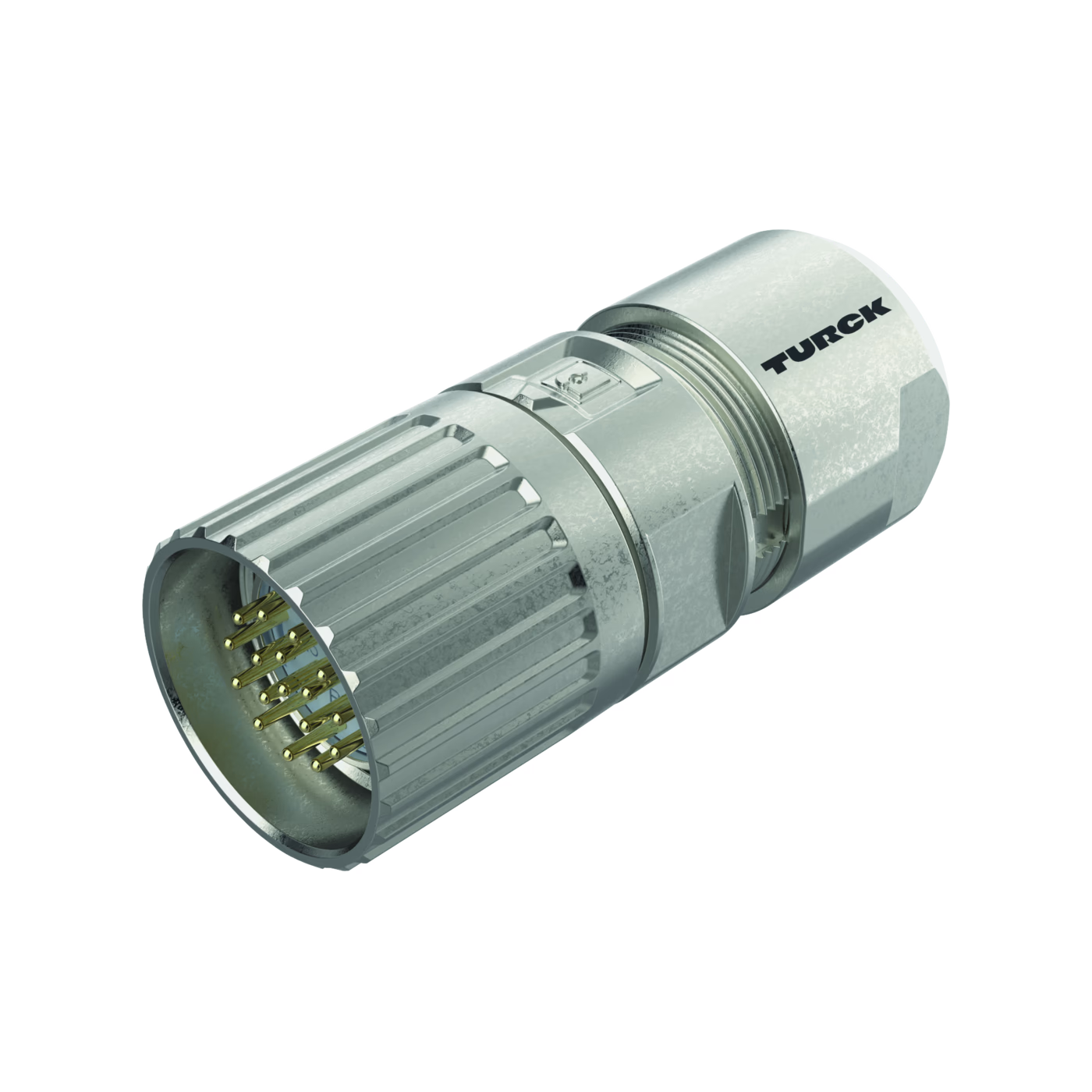

Field-Wireable Connector FW-CRSSM1717-P-C-0315
Field-Wireable Connector
| Application | Signal |
|---|---|
| Connection mode | Crimp connection |

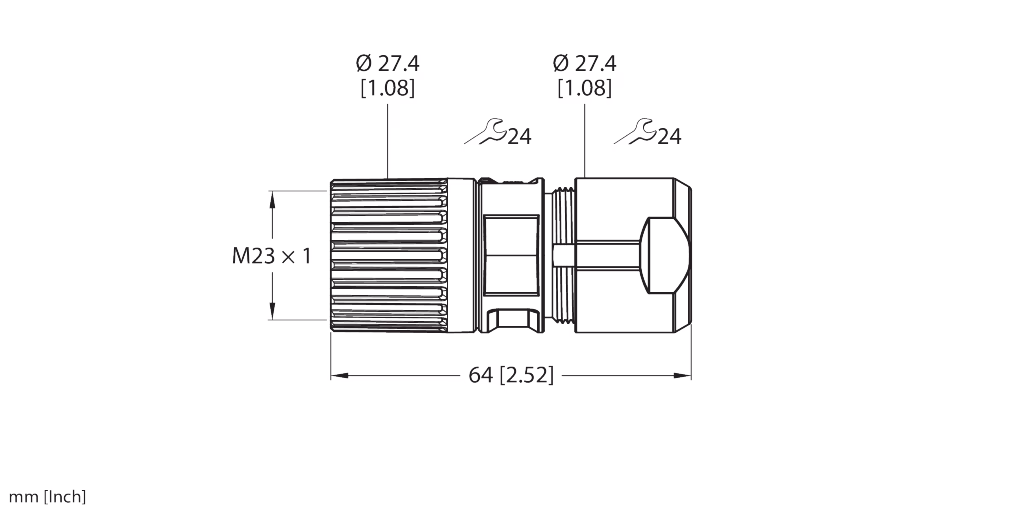

| Connector A | M23×1, Male, Straight |
| Coupling nut/screw material A | Die-cast Zinc |
| Cross-sectional connection max. (mm²) | 1 mm² |
| Current (A) | 8 |
| Device type | Field-wireable connector |
| Number of pins | 17 |
| Plug body | Die-cast Zinc |
| Voltage output | 125 |
