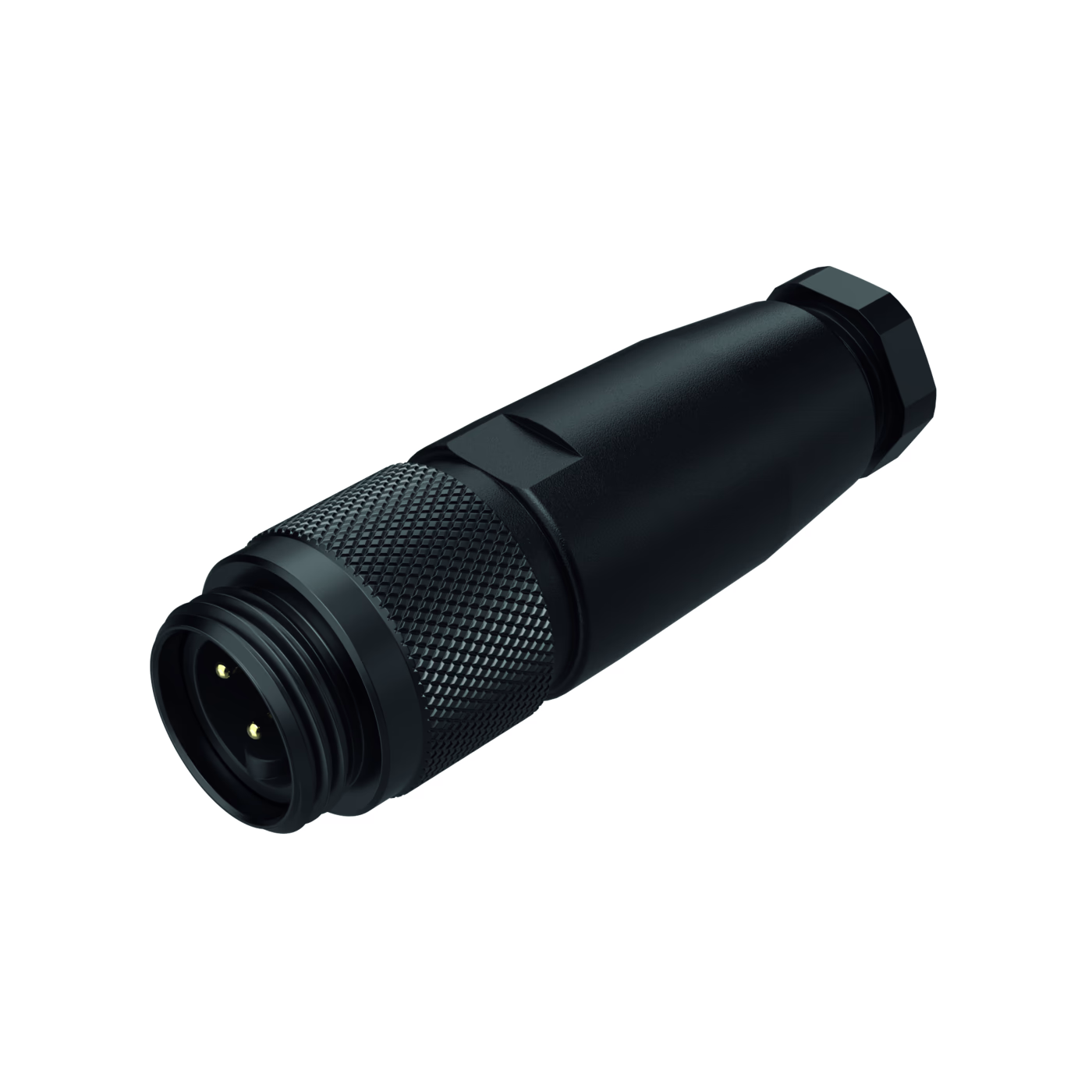

Field-Wireable Connector FW-MRSPM0316-P-S-0810
Field-Wireable Connector
| Ambient temperature max. (°C) | 90 |
|---|---|
| Ambient temperature min. (°C) | -40 |
| Application | Power, Signal |
| Connection mode | Screw/clamp connection |

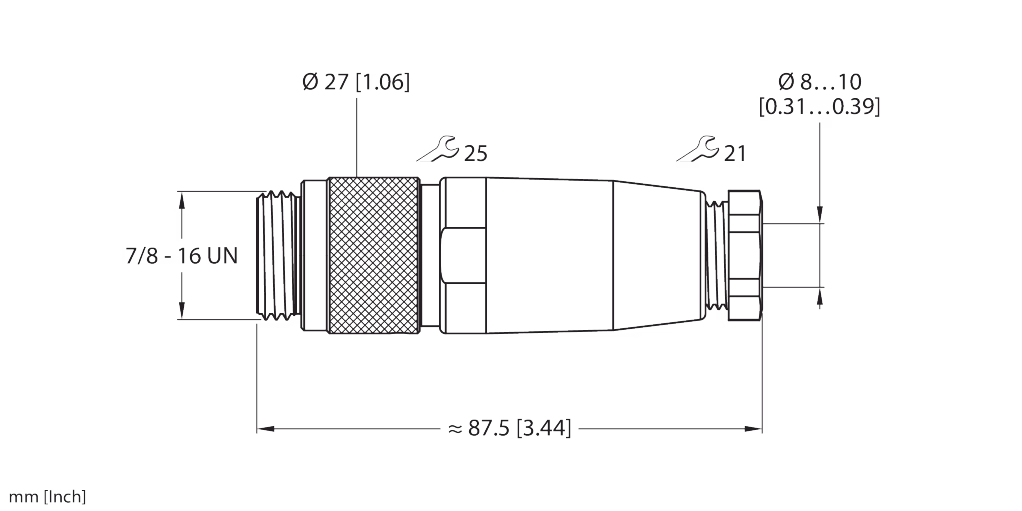

| Connector A | 7/8″-16 UN, Male, Straight |
| Coupling nut/screw material A | Aluminum |
| Cross-sectional connection max. (mm²) | 1.5 mm² |
| Current (A) | 12 |
| Device type | Field-wireable connector |
| Number of pins | 3 |
| Plug body | Plastic |
| Screw-in thread | PG11 |
| Voltage output | 250 |
