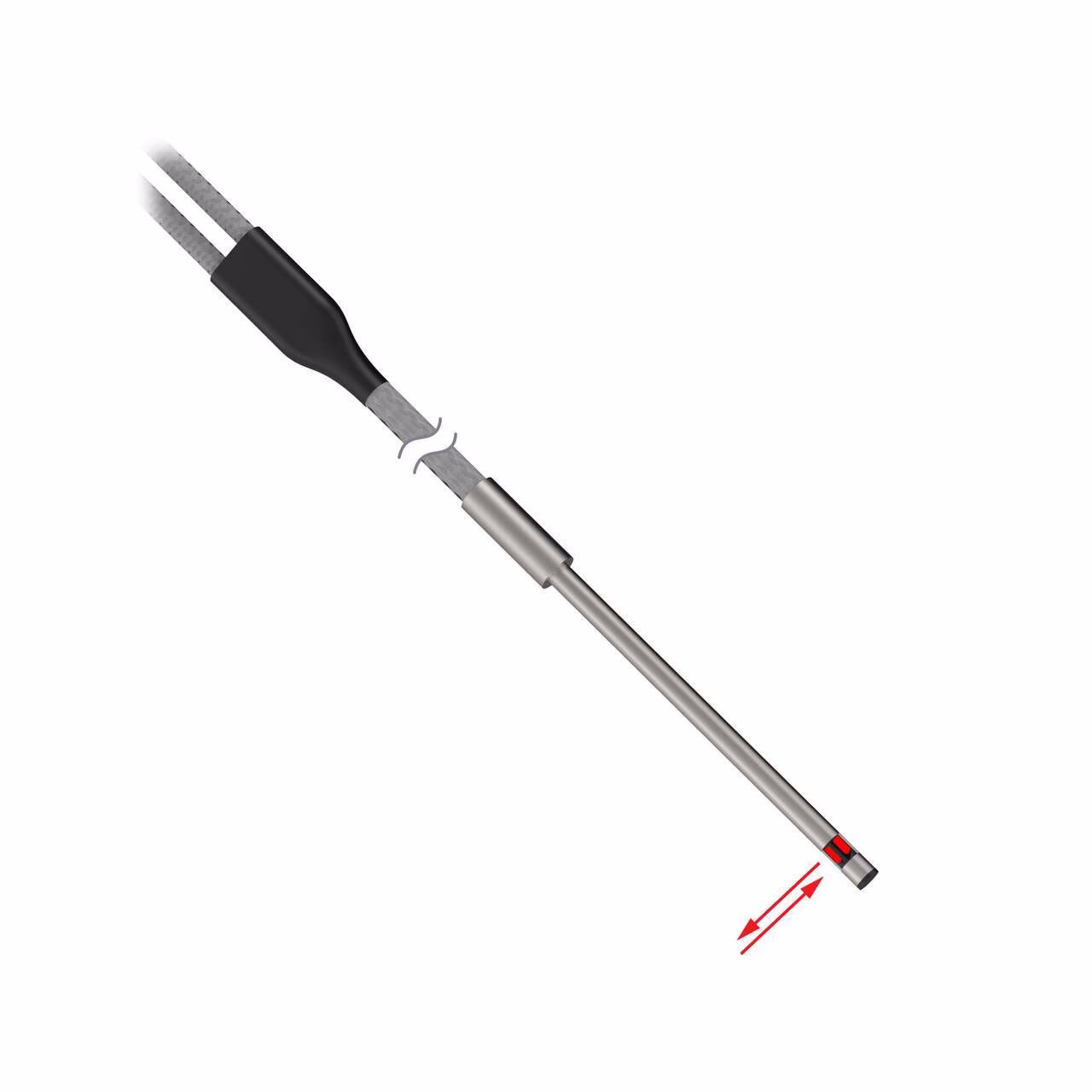

Heavy Duty Fiber Optics – Banner – PBPS46TMB5
Plastic Fiber, Diffuse Reflective
Core Dia.: 1 mm; Fiber Length 2 m
Probe, Sideview
SteelSkin, TMB5 Termination
| Beam Exit | Right Angle |
|---|---|
| Fiber Sensing End Size | 3.0 mm |
| Fiber Sensing End Size - Mounting Area | 5.1 mm |
| Fiber Sensing End Tip | Sideview |
| Max Distance: DF-G2 (mm) | 143 |
| Max Range: DF-G3 (mm) | >500mm – <=1000mm |
| Minimum Repeat Bending Endurance | 1000 |
| Sensing End Material (Specific) | Stainless Steel |
| Sensing End Segment 1 | Ferrule |
| Sensing End Segment 2 | Probe |
| Sensing End Segment 3 | Sideview |
| Sensing Mode (General) | Diffuse |
| Connection technology signal | Reflective |
| Core cross section mm? | 12 |
| Coupler/converter/switch | Plastic Fiber Sensors |
| Fiber Optic Type | Plastic |
| Fiber Sheathing Material (Jacket) | STEELSKIN |
| Flex Relief | No |
| Housing Style | Round |
| Integrated Lens | No |
| Item Status | RELEASED |
| Quantity Included | 1 |
| Retractile | No |
| Termination | Terminated |
| Tariff Fiber Meters (fbm) | 5 |
| Max Temp (C) | 70 |
| Fiber Length (m) | 2 |
| Core Diameter (mm) | 1 |
| Max Distance: DF-G1 (mm) | 89 |
| Max Distance: DF-G3 (mm) | 688 |
| Measured Max Distance (mm) | 89 |
Description
Plastic Fiber, Diffuse Reflective
Core Dia.: 1 mm; Fiber Length 2 m
Probe, Sideview
SteelSkin, TMB5 Termination
