High Temperature Fiber Optics – Banner – IA.81.5ST5ETAMT
Glass Fiber
Individual 0.05 in Bundle

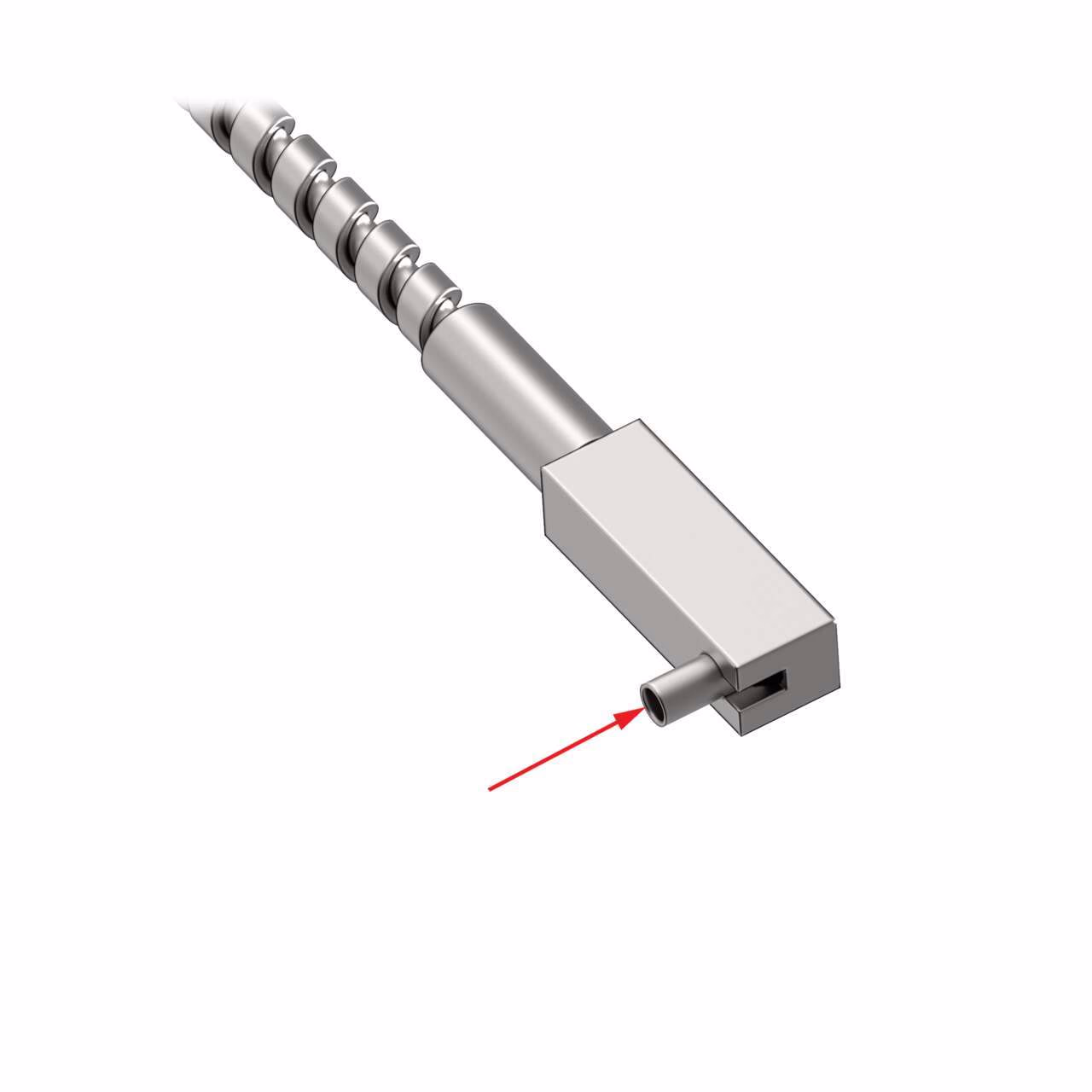

Tight Right-Angle Tip
Stainless Sheathing 18 in
Stainless Terminated For Plastic Fiber Sensors excluding D10
| Beam Exit | Right Angle |
|---|---|
| Fiber Sensing End Size | 2.0 mm |
| Fiber Sensing End Size - Mounting Area | 5.0 mm |
| Fiber Sensing End Tip | Sideview |
| Max Distance: DF-G2 (mm) | No Data |
| Sensing End Material (Specific) | Stainless Steel |
| Sensing End Segment 1 | Ferrule |
| Sensing End Segment 2 | Sideview |

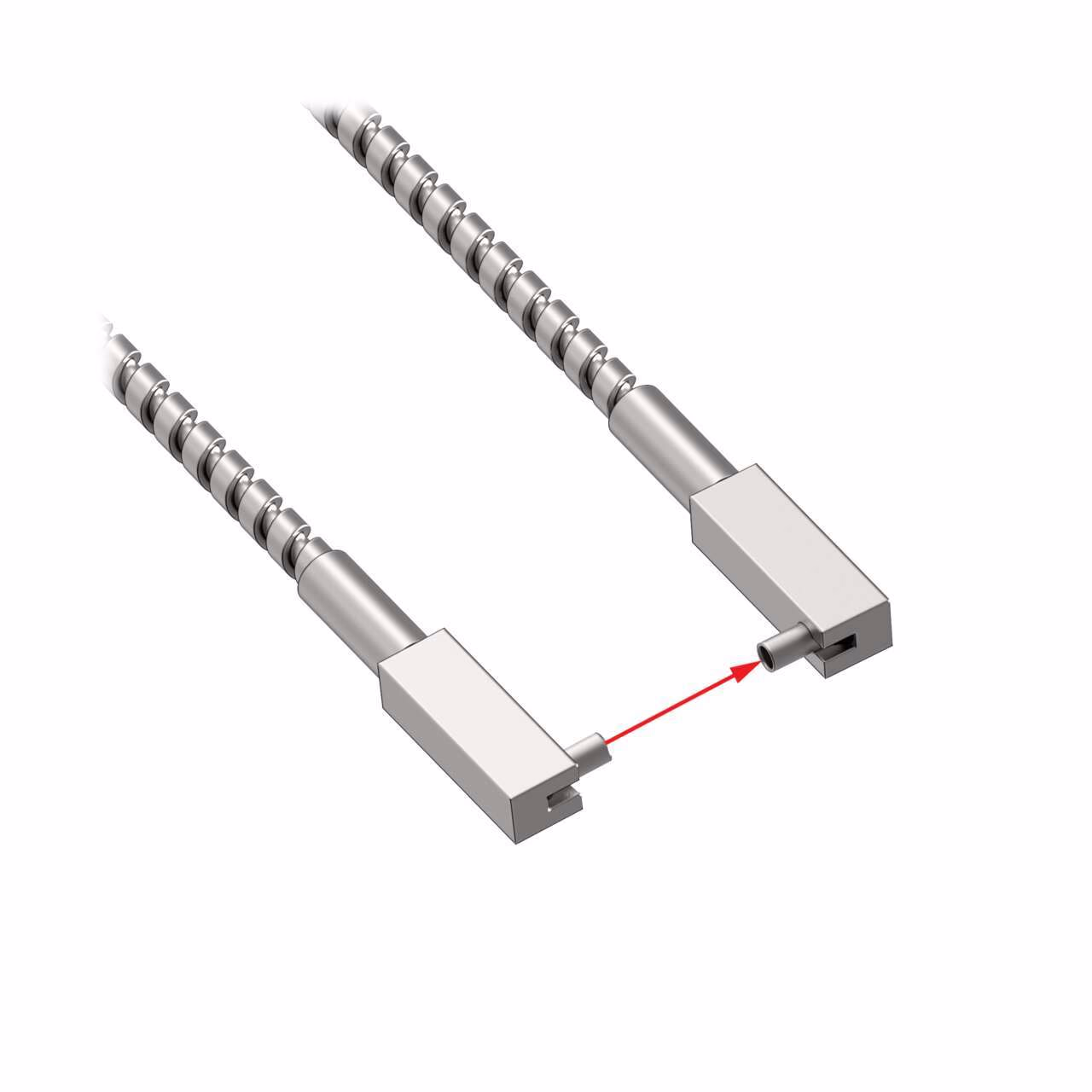

| Sensing Mode (General) | Opposed |
| Connection technology signal | Reflective |
| Core cross section mm? | 25 |
| Coupler/converter/switch | Plastic Fiber Sensors |
| Fiber Optic Type | Glass |
| Fiber Sheathing Material (Jacket) | Stainless Steel Monocoil |
| Flex Relief | No |
| Housing Style | Rectangular |
| Integrated Lens | No |
| Item Status | RELEASED |
| Quantity Included | 1 |
| Retractile | No |
| Termination | Terminated |
| Tariff Fiber Meters (fbm) | 238.6 |
| Max Temp (C) | 249 |
| Fiber Length (m) | 0.457 |
| Core Diameter (mm) | 1.3 |
| Max Distance: DF-G1 (mm) | No Data |
| Max Distance: DF-G3 (mm) | No Data |
| Measured Max Distance (mm) | No Data |
Description
Glass Fiber
Individual 0.05 in Bundle
Tight Right-Angle Tip
Stainless Sheathing 18 in
Stainless Terminated For Plastic Fiber Sensors excluding D10
