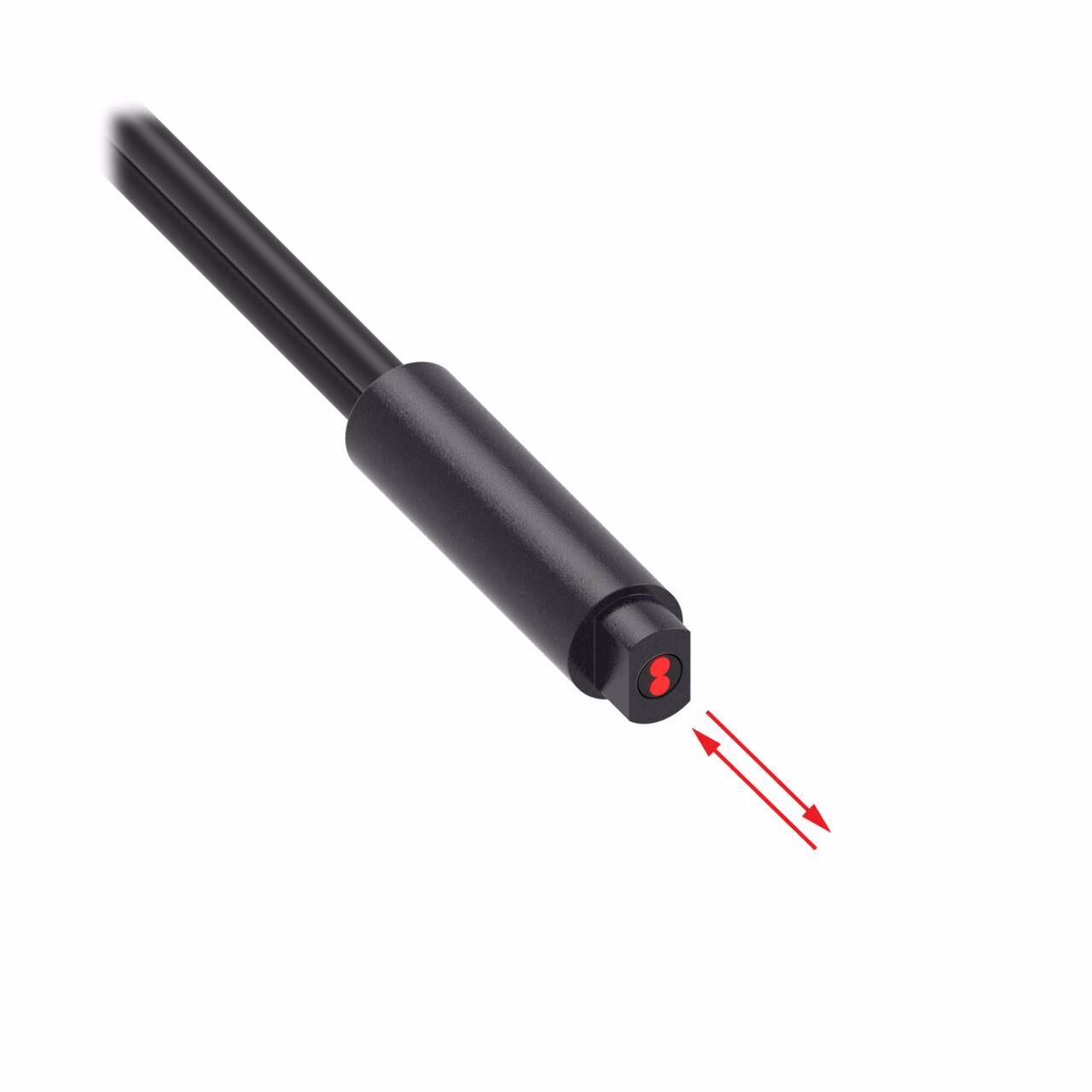

Inline Fiber Optics – Banner – PBFM46UHTMLR
Plastic Fiber, Diffuse Reflective,Core Dia.: 1 mm; High Temp. Fiber Length 2 m
Ferrule, PEEK
Free cut
| Beam Exit | In-line |
|---|---|
| Fiber Sensing End Size | 4.9 mm |
| Fiber Sensing End Size - Mounting Area | 5.9 x 4.9 mm |
| Fiber Sensing End Tip | Ferrule |
| Max Distance: DF-G2 (mm) | No Data |
| Minimum Repeat Bending Endurance | 1000.0 |
| Sensing End Material (Specific) | Polyethylene |
| Sensing End Segment 1 | Ferrule |
| Sensing Mode (General) | Diffuse |
| Connection technology signal | Reflective |
| Core cross section mm? | 15.0 |
| Coupler/converter/switch | Plastic Fiber Sensors |
| Fiber Optic Type | Plastic |
| Fiber Sheathing Material (Jacket) | Polyethylene |
| Flex Relief | No |
| Housing Style | Round |
| Integrated Lens | No |
| Item Status | RELEASED |
| Quantity Included | 1.0 |
| Retractile | No |
| Termination | Free Cut |
| Tariff Fiber Meters (fbm) | 1380.0 |
| Max Temp (C) | 105.0 |
| Fiber Length (m) | 2.0 |
| Core Diameter (mm) | 1 |
| Max Distance: DF-G1 (mm) | No Data |
| Max Distance: DF-G3 (mm) | No Data |
| Measured Max Distance (mm) | No Data |
Description
Plastic Fiber, Diffuse Reflective,Core Dia.: 1 mm; High Temp. Fiber Length 2 m
Ferrule, PEEK
Free cut
