IC70 In-Cabinet IO-Link Hub Series – Banner – IC70-16N-K

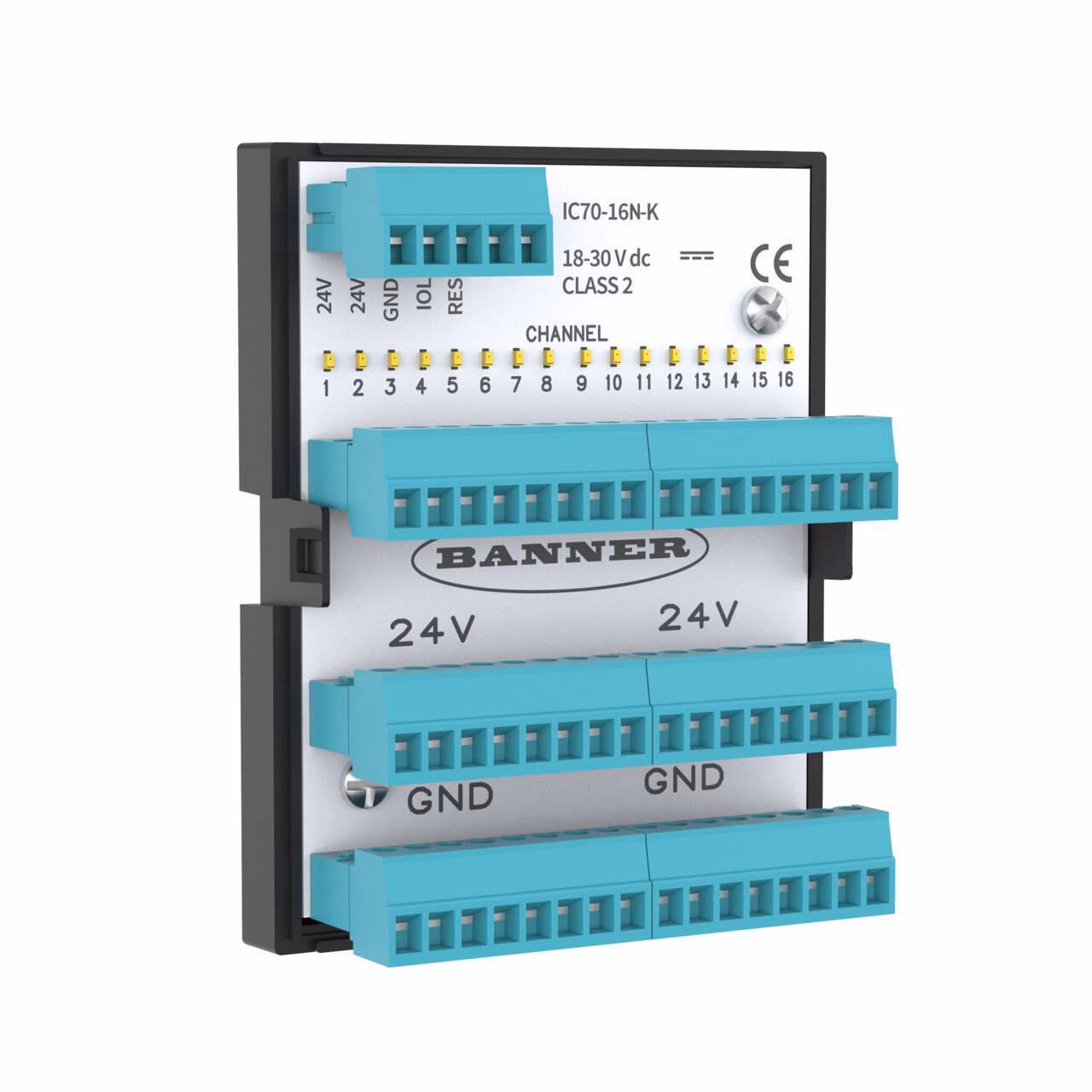

IC70 IP20 Series: 16 Channel Discrete NPN IO-Link Hub
IO-Link Interface
Screw Terminal Connections
| EPLAN Status | Published |
|---|---|
| Item Status | RELEASED |
| Operating voltage | 18-30 V dc |
| Protection class shaft | IP20 |
| IO-Link Device | Yes |
| Modbus Server | No |
| Connector 1 | Screw Terminal |
| Function | Converter |
| IO-Link Master | No |
| Form Factor | IC70 |
| Modbus Client | No |
| Input | Discrete Input & Output (PNP) |
| Device Size (mm) | 70 x 86 |
| Connector 1 Pin Count | 8.0 |
| Connector 2 | Screw Terminal |
| Connector 2 Pin Count | 6.0 |
| Current | <400 mA |
Description
IC70 IP20 Series: 16 Channel Discrete NPN IO-Link Hub
IO-Link Interface
Screw Terminal Connections
