Splitters – Banner – S15YA4-M83-M83-0.3

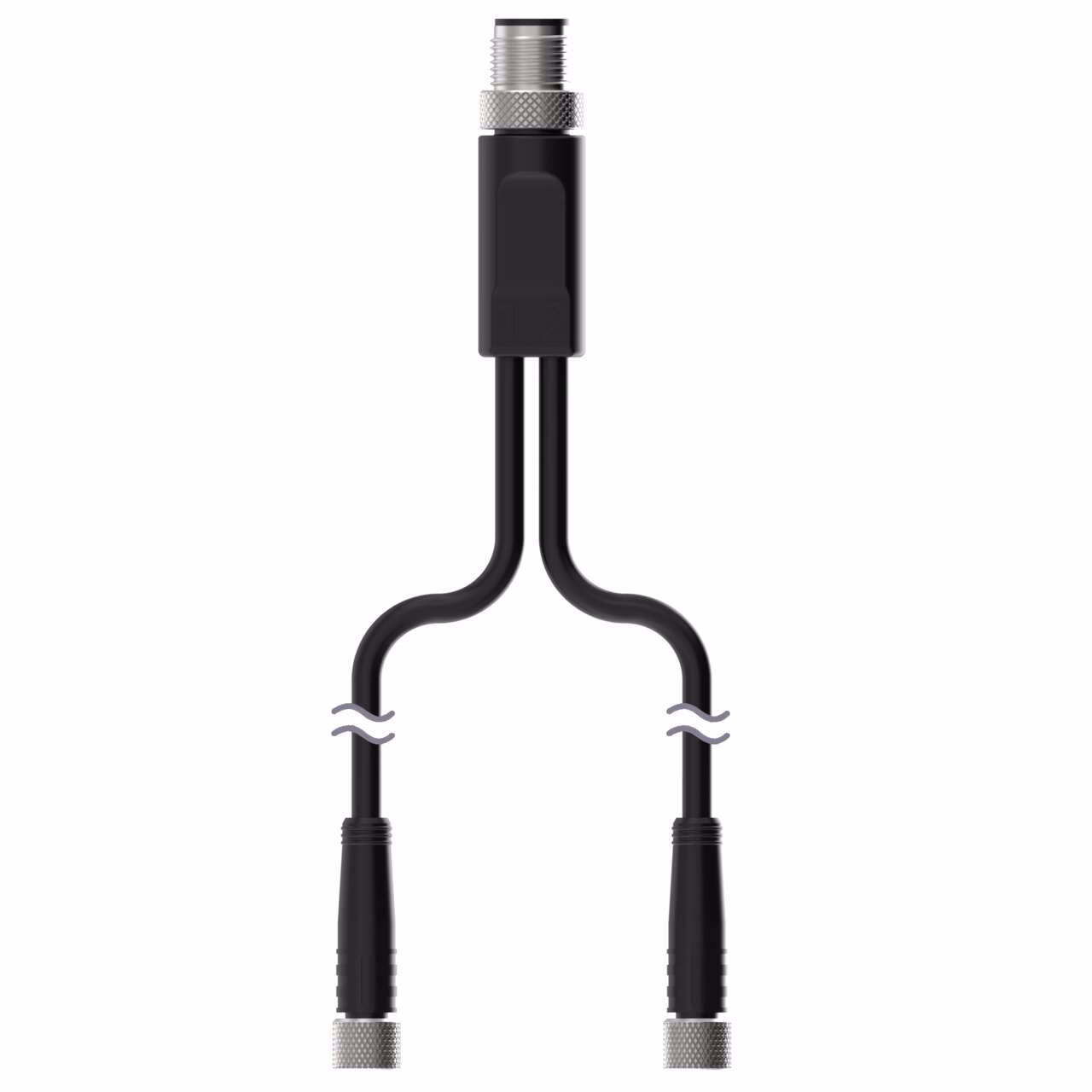

S15Y Series: Slimline Splitter
4-pin Male M12 A-Code; 2x 3-pin Female M8 A-Code 0.3 m Cables
Pin 4 output on 2 & 4 on HR
| Branches: Cable Jacket Material | PVC, PVC |
|---|---|
| Branches: Genders | Female, Female |
| Branches: Number of Contacts | 3, 3 |
| Number of Branches | 2.0 |
| Shield/No Shield | No Shield |
| Splitter: Overmold Material and Color | PUR Black |
| Trunk: Connector Type | M12 |
| Trunk: Gender | Male |
| Trunk: Number of Contacts | 4.0 |
| Trunk: Orientation | Straight |
| Wiring | Combiner |
| Current (A) | 2.0 |
| Operating voltage | 30 V ac/dc |
| Radiation direction | Straight, Straight |
| Start/Restart interlock | S15Y |
| Maximum Temp. (Celsius) | 70.0 |
| Minimum Temp. (Celsius) | -40.0 |
| Trunk Length (m) | 0.3 |
| Connector type.1 | M8, M8 |
Description
S15Y Series: Slimline Splitter
4-pin Male M12 A-Code; 2x 3-pin Female M8 A-Code 0.3 m Cables
Pin 4 output on 2 & 4 on HR
