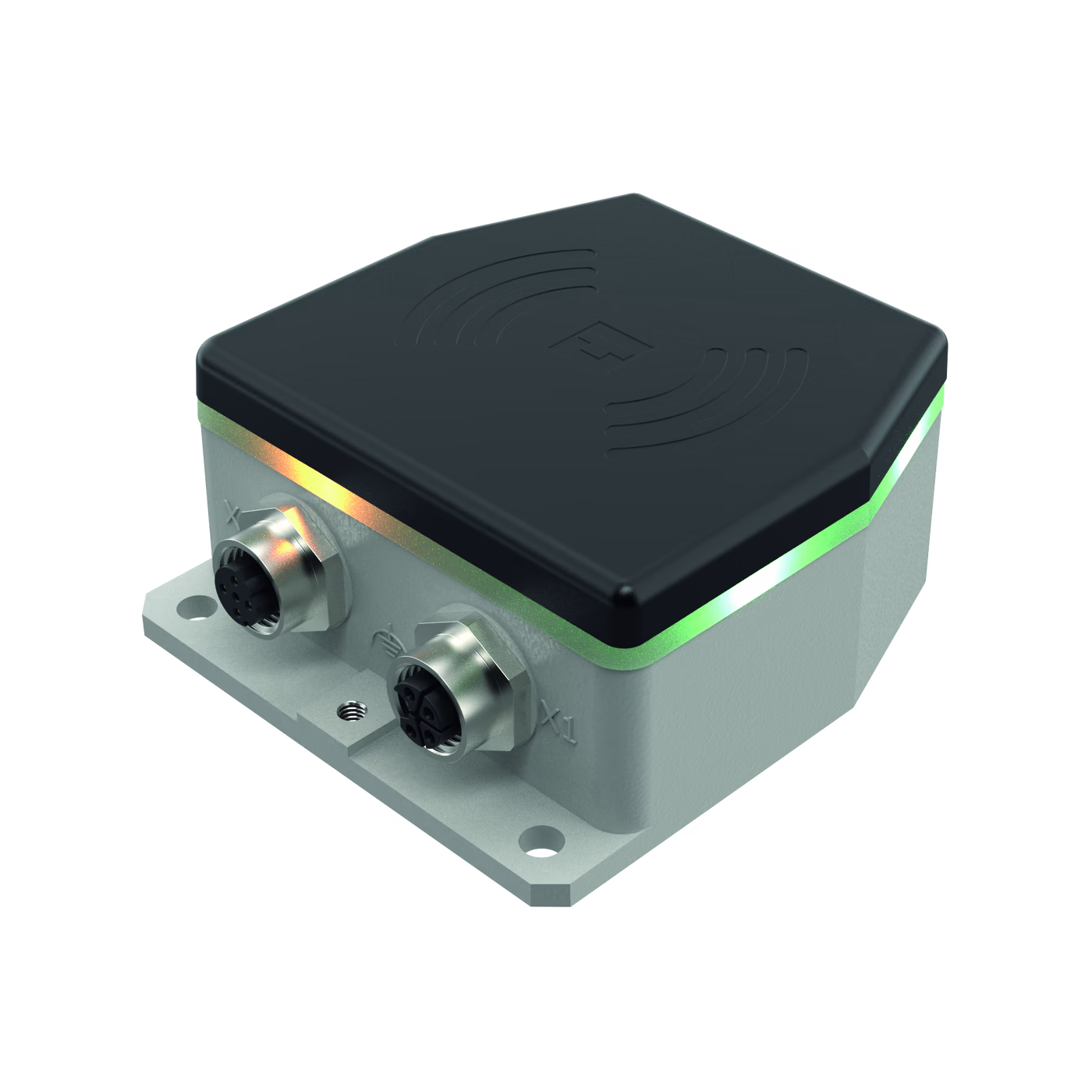

Inductive coupler NICS-Q86-ETH-HK1141
Inductive coupler
| Ambient temperature max. (°C) | 55 |
|---|---|
| Ambient temperature min. (°C) | -20 |
| Connection technology Ethernet | 1 x M12, 4-pin, D-coded |
| Connector type | L-coded, M12 × 1 |
| Design | Rectangular |

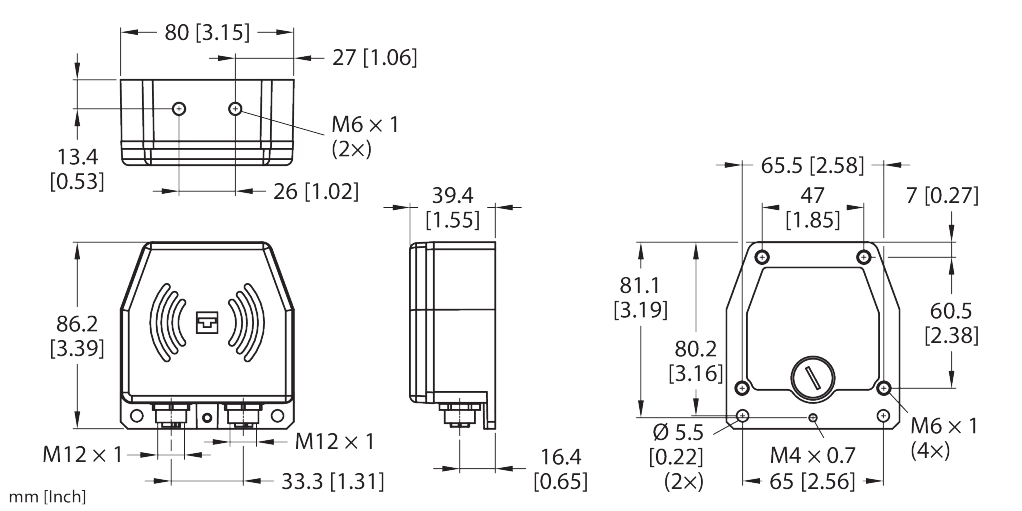

| Dimensions | 86.2 mm |
| Electrical output | Connector |
| Housing material | Die-cast zinc |
| Mounting conditions | Non-flush |
| Operating voltage | DC |
| Protection class | IP65 |
| Quality active face | PBT |
| Transmission rate Ethernet | 10/100 Mbps |
