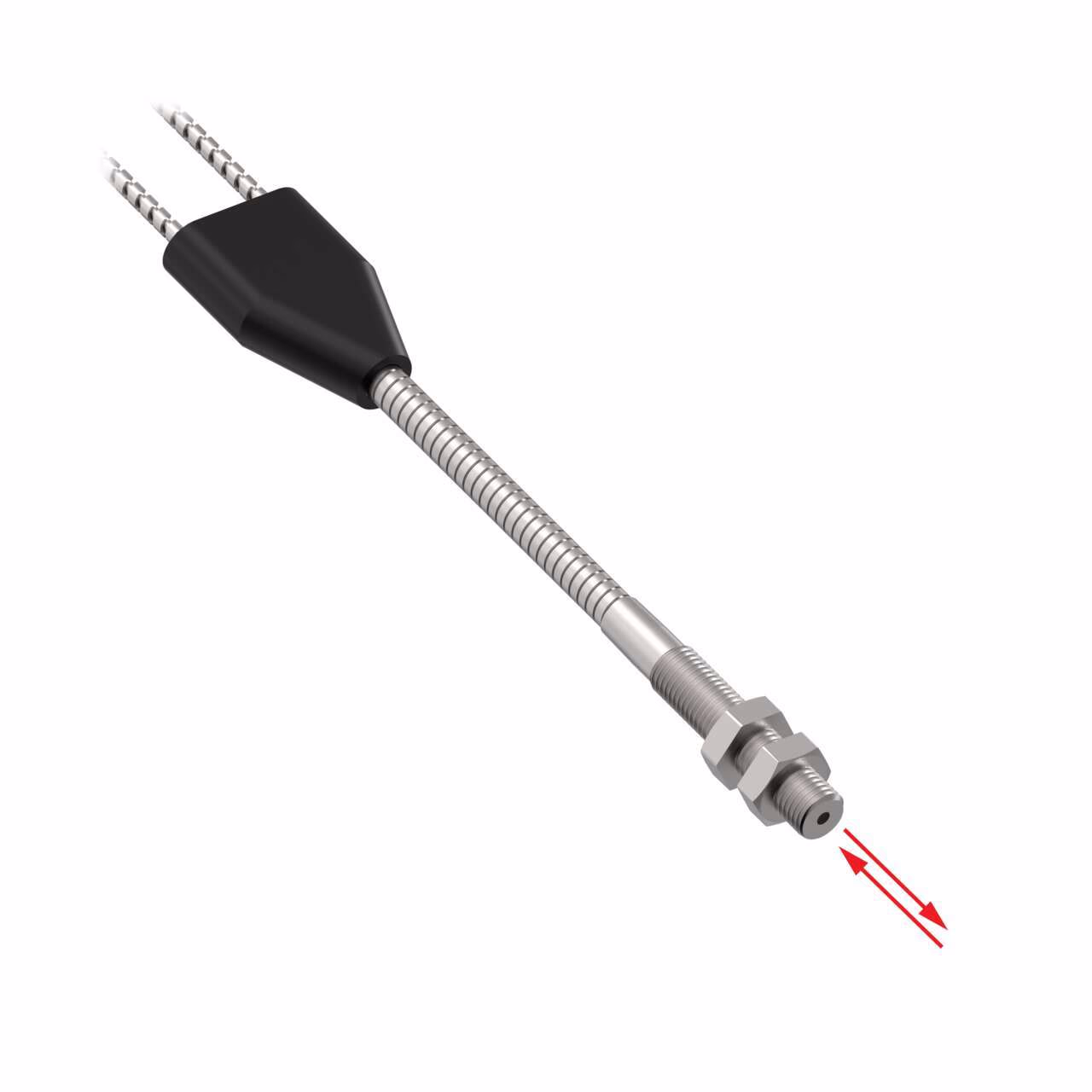

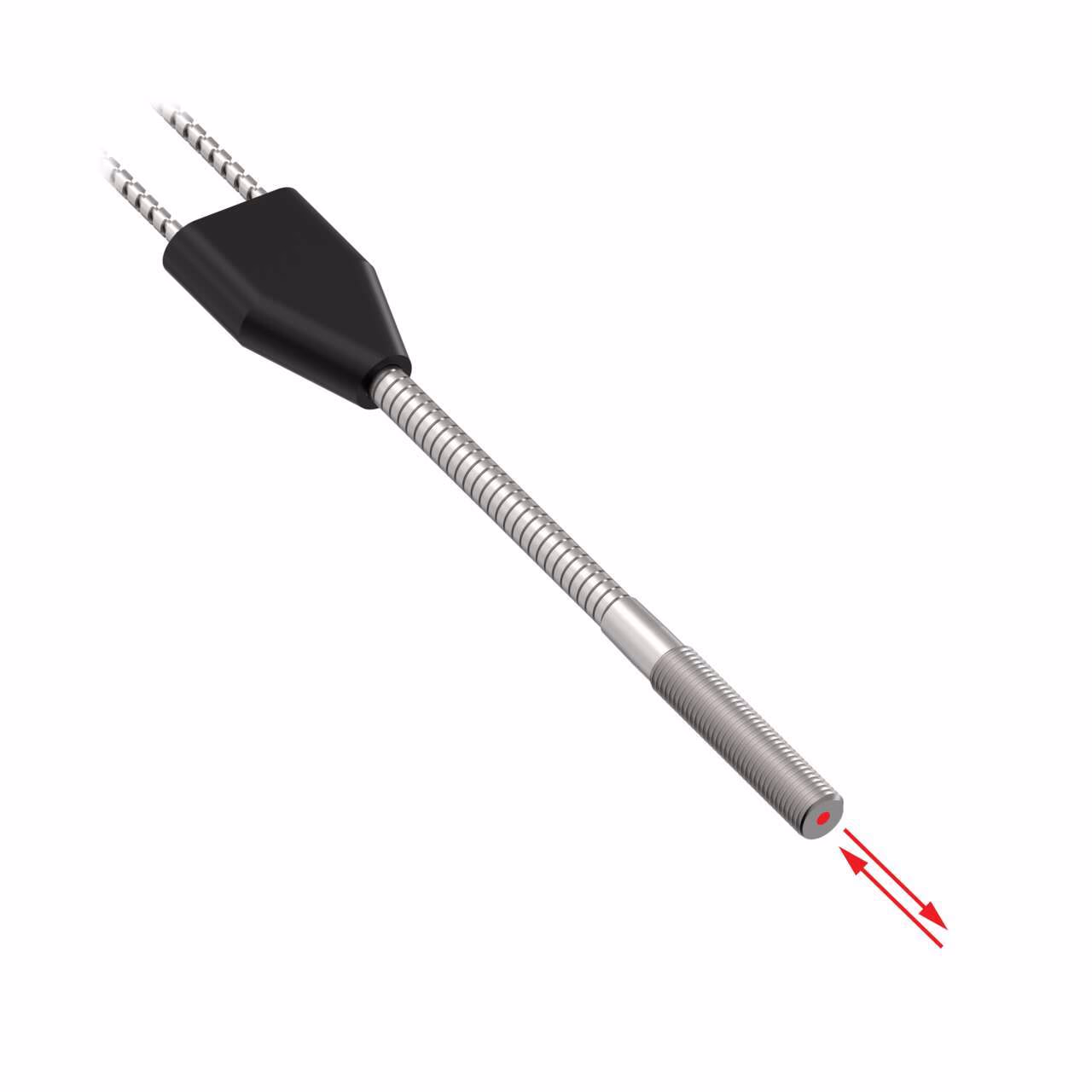

Inline Fiber Optics – Banner – BT1.56ST5M900
Glass Fiber: Diffuse Mode
2.29 mm Bundle; 5/16×24 Threaded Tip
Stainless Sheathing 1.83 m long
Terminated For Plastic Fiber Sensors
Max. Operating Temperature at Sensing tip 482 deg. C
| Beam Exit | In-line |
|---|---|
| Fiber Sensing End Size | #5/16-24 thread |
| Fiber Sensing End Size - Mounting Area | #5/16-24 thread |
| Fiber Sensing End Tip | Thread |
| Max Distance: DF-G2 (mm) | 360 |
| Max Range: DF-G3 (mm) | >1m – <=3m |
| Sensing End Material (Specific) | Stainless Steel |
| Sensing End Segment 1 | Thread |
| Sensing Mode (General) | Diffuse |
| Connection technology signal | Reflective |
| Core cross section mm? | 25 |
| Coupler/converter/switch | Plastic Fiber Sensors |
| Fiber Optic Type | Glass |
| Fiber Sheathing Material (Jacket) | Stainless Steel Monocoil |
| Flex Relief | No |
| Housing Style | Round |
| Integrated Lens | No |
| Item Status | RELEASED |
| Quantity Included | 1 |
| Retractile | No |
| Termination | Terminated |
| Tariff Fiber Meters (fbm) | 3210 |
| Max Temp (C) | 480 |
| Fiber Length (m) | 1.829 |
| Core Diameter (mm) | 2.3 |
| Max Distance: DF-G1 (mm) | 222 |
| Max Distance: DF-G3 (mm) | 1728 |
| Measured Max Distance (mm) | 222 |
Description
Glass Fiber: Diffuse Mode
2.29 mm Bundle; 5/16×24 Threaded Tip
Stainless Sheathing 1.83 m long
Terminated For Plastic Fiber Sensors
Max. Operating Temperature at Sensing tip 482 deg. C
