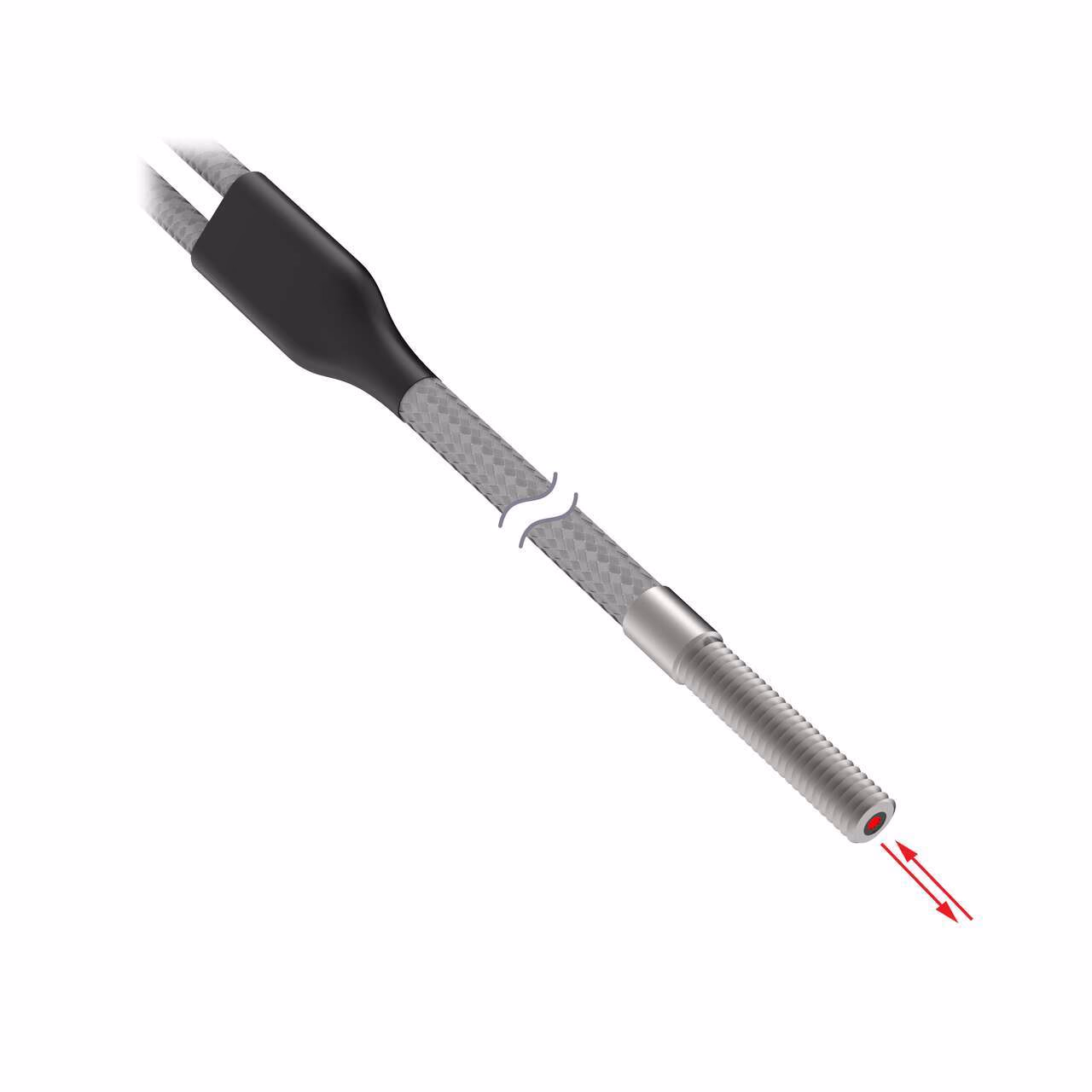

Inline Fiber Optics – Banner – PBCT23TMB5M4
Plastic Fiber, Diffuse Reflective
Core Dia.: 0.5 mm & 9 x 0.25 mm; Fiber Length 1 m
Coaxial, Thread
SteelSkin, TMB5 Termination
| Beam Exit | In-line |
|---|---|
| Fiber Sensing End Size | M4 |
| Fiber Sensing End Size - Mounting Area | M4 |
| Fiber Sensing End Tip | Thread |
| Max Distance: DF-G2 (mm) | 130 |
| Max Range: DF-G3 (mm) | >500mm – <=1000mm |
| Minimum Repeat Bending Endurance | 2000 |
| Sensing End Material (Specific) | Stainless Steel |
| Sensing End Segment 1 | Thread |
| Sensing Mode (General) | Diffuse |
| Connection technology signal | Coaxial |
| Core cross section mm? | 12 |
| Coupler/converter/switch | Plastic Fiber Sensors |
| Fiber Optic Type | Plastic |
| Fiber Sheathing Material (Jacket) | STEELSKIN |
| Flex Relief | No |
| Housing Style | Round |
| Integrated Lens | No |
| Item Status | RELEASED |
| Quantity Included | 1 |
| Retractile | No |
| Termination | Terminated |
| Tariff Fiber Meters (fbm) | 10 |
| Max Temp (C) | 70 |
| Fiber Length (m) | 1 |
| Core Diameter (mm) | 0.5 & 9 x 0.3 |
| Max Distance: DF-G1 (mm) | 80 |
| Max Distance: DF-G3 (mm) | 622 |
| Measured Max Distance (mm) | 80 |
Description
Plastic Fiber, Diffuse Reflective
Core Dia.: 0.5 mm & 9 x 0.25 mm; Fiber Length 1 m
Coaxial, Thread
SteelSkin, TMB5 Termination
