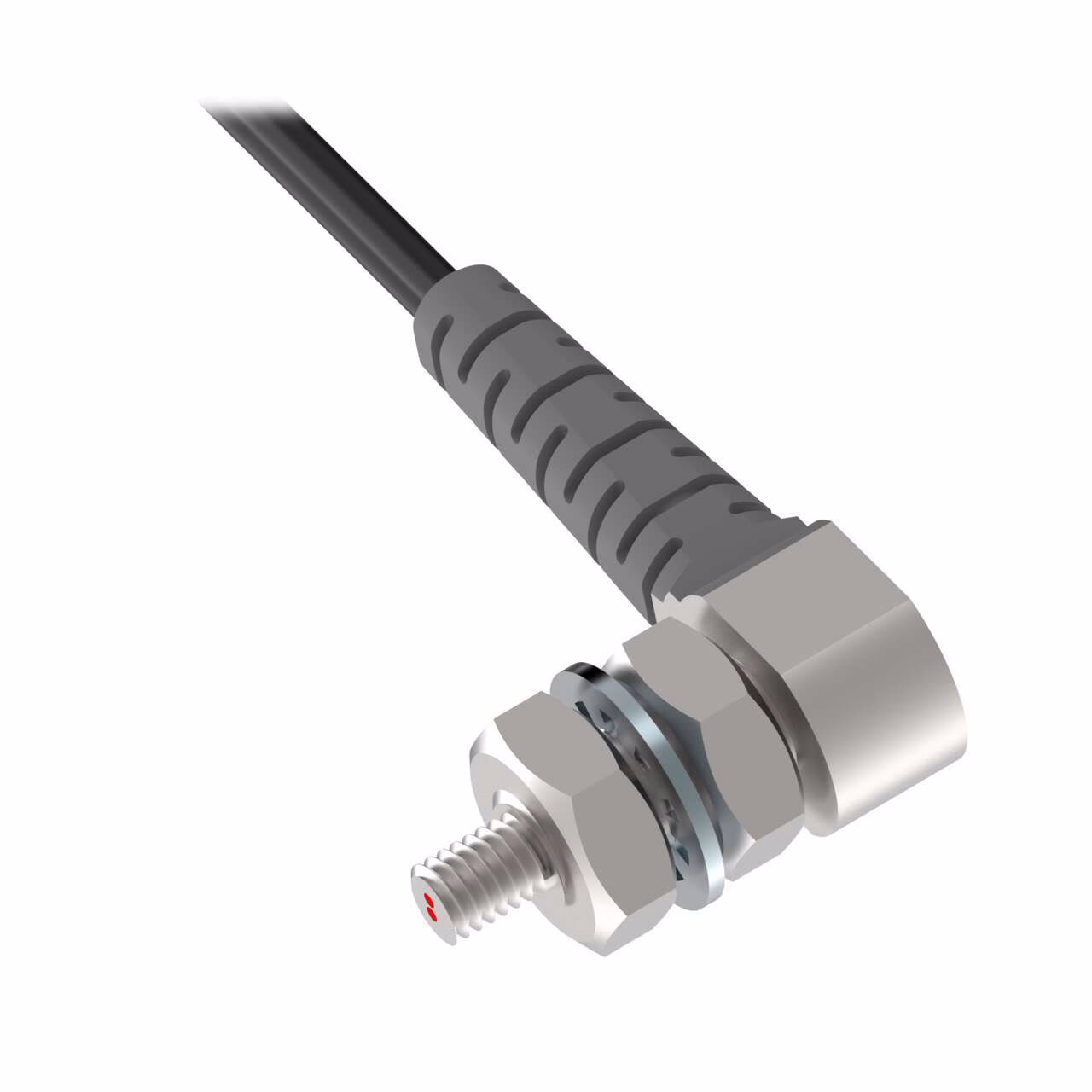

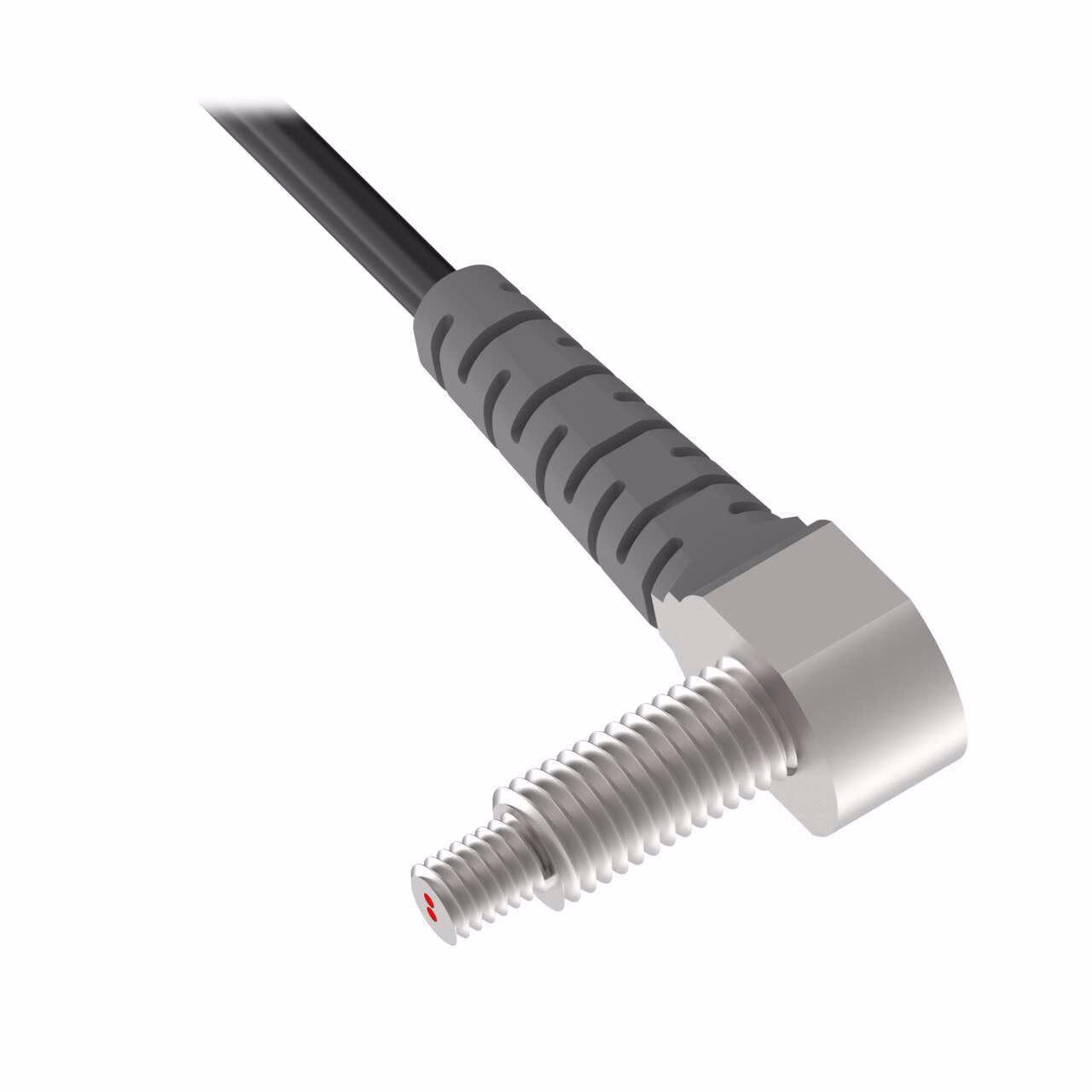

Angle Fiber Optics – Banner – PBAT26UTA-VL
Plastic Fiber, Diffuse Reflective
Core Dia.: 0.5 mm; Fiber Length 2 m
Right-Angle, Thread
Bend Radius 15 mm, Flex Relief
Free Cut
Vantage Line
| Connection technology signal | Reflective |
|---|---|
| Core cross section mm? | 15.0 |
| Coupler/converter/switch | Plastic Fiber Sensors |
| Item Status | RELEASED |
| Housing Style | Round |
| Sensing Mode (General) | Diffuse |
| Quantity Included | 1.0 |
| Termination | Free Cut |
| Fiber Optic Type | Plastic |
| Fiber Sheathing Material (Jacket) | Polyethylene |
| Tariff Fiber Meters (fbm) | 4.0 |
| Max Temp (C) | 70.0 |
| Retractile | No |
| Integrated Lens | No |
| Fiber Length (m) | 2.0 |
| Core Diameter (mm) | 0.5 |
| Flex Relief | Yes |
| Beam Exit | Right Angle |
| Max Distance: DF-G1 (mm) | 22 |
| Max Distance: DF-G2 (mm) | 35 |
| Max Distance: DF-G3 (mm) | 169 |
| Measured Max Distance (mm) | 22 |
| Fiber Sensing End Tip | Thread |
| Sensing End Material (Specific) | Stainless Steel |
| Sensing End Segment 1 | Sideview |
| Fiber Sensing End Size | M2.6 |
| Fiber Sensing End Size - Mounting Area | M4 |
| Minimum Repeat Bending Endurance | 5000.0 |
| Sensing End Segment 2 | Thread |
| Sensing End Segment 3 | Thread |
| Max Range: DF-G3 (mm) | >100mm – <=500mm |
Description
Plastic Fiber, Diffuse Reflective
Core Dia.: 0.5 mm; Fiber Length 2 m
Right-Angle, Thread
Bend Radius 15 mm, Flex Relief
Free Cut
Vantage Line
