IP20 Junction Box, 6-Channel JRBS-40-6R/EX
IP20 Junction Box, 6-Channel
| Ambient temperature max. (°C) | 70 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Application | Data |
| Approvals | ATEX, Ex-Approval |
| Connection technology signal | Screw terminal |
| Device type | Passive fieldbus junction box |

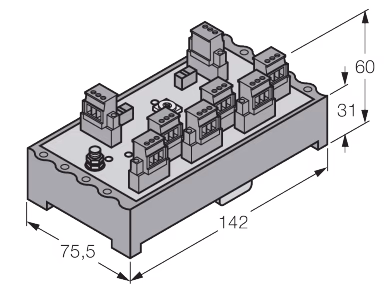

| Dimensions | 31 mm x 142 mm x 75.5 mm |
| Electrical output | Removable terminal block, reverse polarity protected, screw connection |
| Housing material | Aluminium |
| Installation area | non-Ex, zone 1, zone 2 |
| Network protocol | FOUNDATION fieldbus, PROFIBUS-PA |
| Number of channels | 6 |
| Protection class | IP20 |
