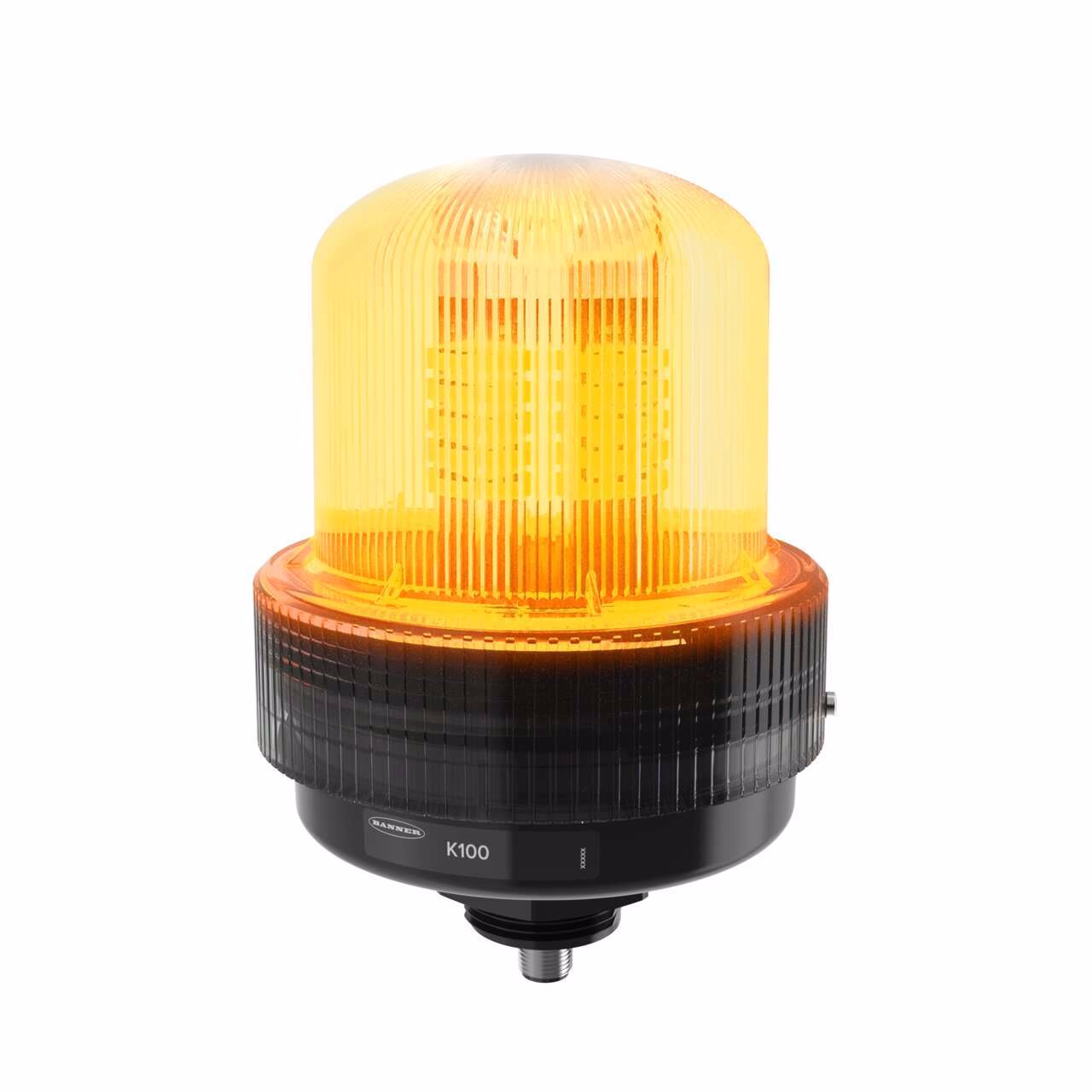

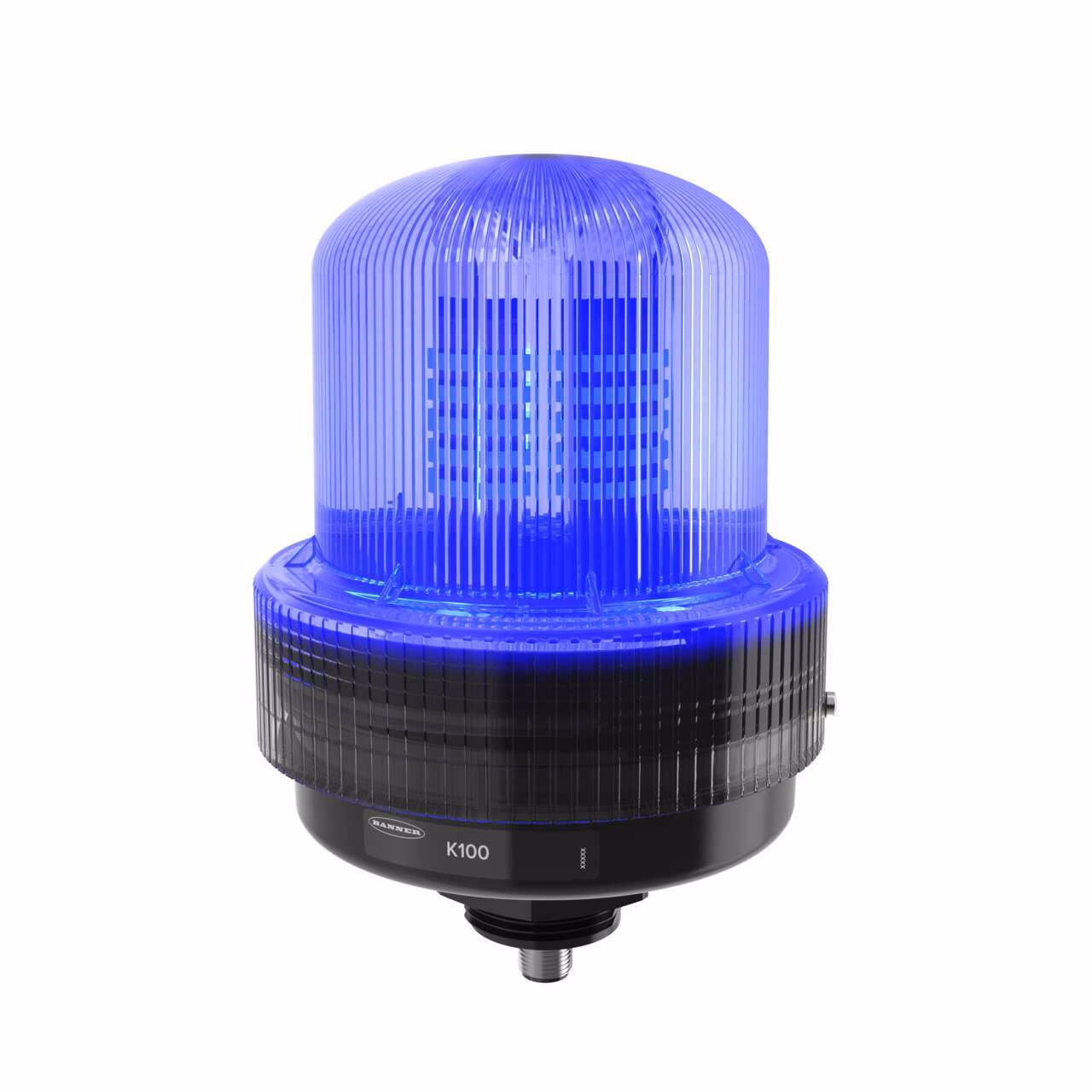

K100 Pro Hazardous Beacon Series – Banner – K100PBLNBYRQ
K100 Pro Hazardous Daylight Visible: 3-Color Beacon
12-48 V dc; Polycarbonate; IP66, IP69K
Blue, Yellow, Red
5-pin M12 Integral QD
| Color Option 2 | Yellow |
|---|---|
| Color Technology | Standard LED |
| Connection | Integral QD |
| Dimming Option | Programmable |
| Feature: Audible | No |
| Input Type | Bimodal (PNP/NPN) |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Clear |
| Pro-Editor Compatible (Discrete) | Yes |
| Wire Selectable Function | Programmable |
| Animation Option 1 | Programmable |
| Animation Option 2 | Programmable |
| Animation Option 3 | Programmable |
| Color 1 - Wavelength/Color Temp/Coordinates | 475 nm |
| Color 2 - Wavelength/Color Temp/Coordinates | 589 nm |
| Color 3 - Wavelength/Color Temp/Coordinates | 625 nm |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Blue |
| Color Option 3 | Red |
| Environmental Rating | IP69K |
| EPLAN Original Sent Date | 06/07/2023 |
| EPLAN Status | Ready for Prep |
| Eye Shield | No |
| Feature | Hazardous Area, Quick Disconnect |
| Housing Style | Base Mount – Dome Window |
| Indication | Yes |
| Indication Intensity | High Brightness & Daylight Visible |
| Item Status | RELEASED |
| Light type | No |
| Lumens Color 1 | 165.0 |
| Lumens Color 2 | 525.0 |
| Lumens Color 3 | 155.0 |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| Mounting | M36 x 2.0 |
| Multi-Color Device | Single Color On |
| Non-Illuminated | No |
| Number of colors/segments | 3 |
| Number of Conductors | 5.0 |
| Operating voltage | 12-48 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 118.5 x 173.2 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP66, IP69K |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| NEMA / UL Type Rating | UL 4X |
| High Temperature (up to 100 C) | 60.0 |
| Product Size (mm) | 100 |
| Max Current Color (mA) | 395.0 |
| Storage Temp (C) | -40 to 70 |
| Max Input Response Time (ms) | 325.0 |
Description
K100 Pro Hazardous Daylight Visible: 3-Color Beacon
12-48 V dc; Polycarbonate; IP66, IP69K
Blue, Yellow, Red
5-pin M12 Integral QD
