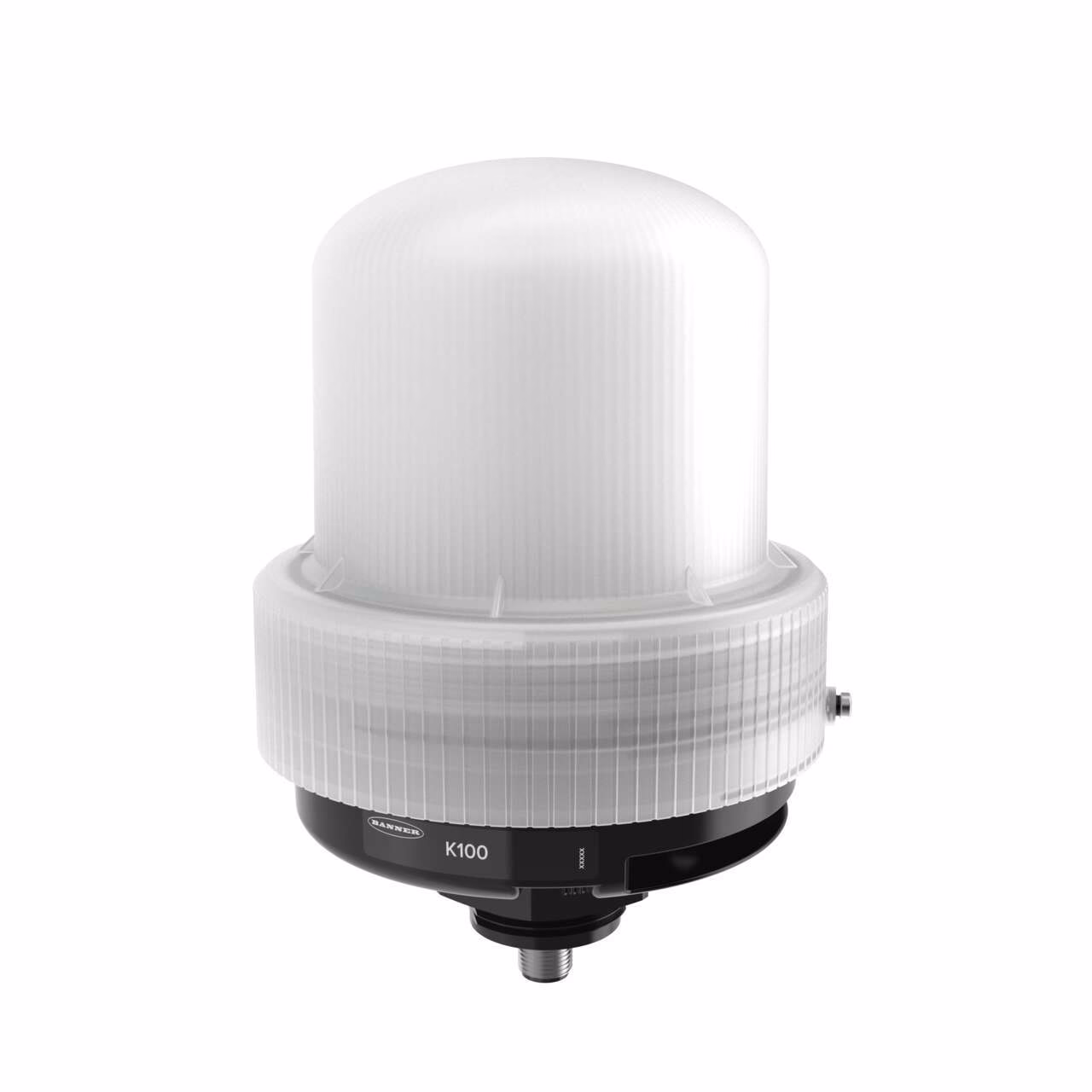

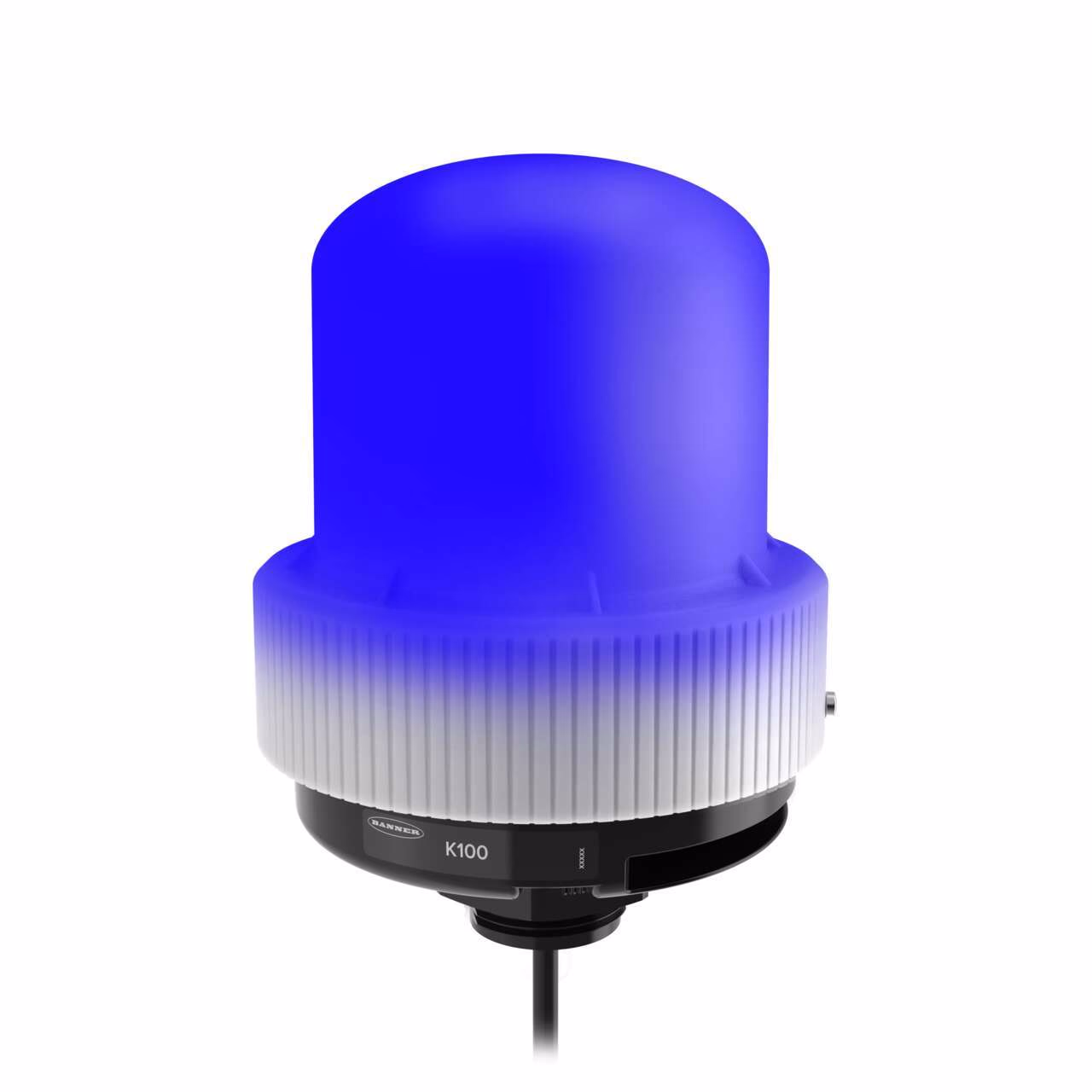

K100 Pro Hazardous Beacon Series – Banner – K100PLNZRGB7A
K100 Pro Hazardous Indicator: RGB Beacon
100-240 V ac; Polycarbonate; IP66, IP69K
Multicolor; Audible
2 m (6.5 ft) cable
| Animation Option 4 | Programmable |
|---|---|
| Animation Option 5 | Programmable |
| Audible Alarm Type | Multitone |
| Color 5 - Wavelength/Color Temp/Coordinates | 6000K |
| Color Option 2 | Green |
| Color Option 5 | White |
| Color Technology | RGB Configurable |
| Connection | Cable |
| Feature: Audible | Yes |
| Lumens Color 5 | 112.0 |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Pro-Editor Compatible (Discrete) | No |
| Animation Option 1 | Programmable |
| Animation Option 2 | Programmable |
| Animation Option 3 | Programmable |
| Color 1 - Wavelength/Color Temp/Coordinates | 620 nm |
| Color 2 - Wavelength/Color Temp/Coordinates | 525 nm |
| Color 3 - Wavelength/Color Temp/Coordinates | 467 nm |
| Color 4 - Wavelength/Color Temp/Coordinates | 575 nm |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Color Option 1 | Red |
| Color Option 3 | Blue |
| Color Option 4 | Yellow |
| Environmental Rating | IP69K |
| EPLAN Original Sent Date | 06/07/2023 |
| EPLAN Status | Ready for Prep |
| Eye Shield | No |
| Feature | Hazardous Area |
| Housing Style | Base Mount – Dome Window |
| Indication | Yes |
| Indication Intensity | High Brightness |
| Item Status | RELEASED |
| Light type | No |
| Lumens Color 1 | 36.0 |
| Lumens Color 2 | 73.0 |
| Lumens Color 3 | 14.0 |
| Lumens Color 4 | 91.0 |
| Max Audible Intensity (dB at 1m) | 101.0 |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| Min Audible Intensity (dB at 1m) | 93.0 |
| Mounting | M36 x 2.0 |
| Multi-Color Device | Simultaneous Colors On |
| Non-Illuminated | No |
| Number of colors/segments | 14 |
| Operating voltage | 100-240 V ac |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 118.5 x 173.2 |
| Power Good Output | AC |
| Protection class shaft | IP66, IP69K |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Slot width (mm) | 2 |
| Switching frequency (kHz) | 2.5 |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| NEMA / UL Type Rating | UL 4X |
| High Temperature (up to 100 C) | 60.0 |
| Product Size (mm) | 100 |
| Max Current - Audible Alarm (mA) | 10.0 |
| Lumens Color 6 | 47.0 |
| Color Option 6 | Magenta |
| Color Option 7 | Cyan |
| Color 7 - Wavelength/Color Temp/Coordinates | 492 nm |
| Lumens Color 7 | 83.0 |
| Color 6 - Wavelength/Color Temp/Coordinates | 0.387, 0.182 |
| Animation Option 6 | Programmable |
Description
K100 Pro Hazardous Indicator: RGB Beacon
100-240 V ac; Polycarbonate; IP66, IP69K
Multicolor; Audible
2 m (6.5 ft) cable
