Barrel-Mount Indicators: S18L Series – Banner – S18DLRBWNT
S18 DAYLIGHT VISIBLE EZ Light – 18 mm – IP67
Three Color: Red Blue White
10-30 V dc NPN Input

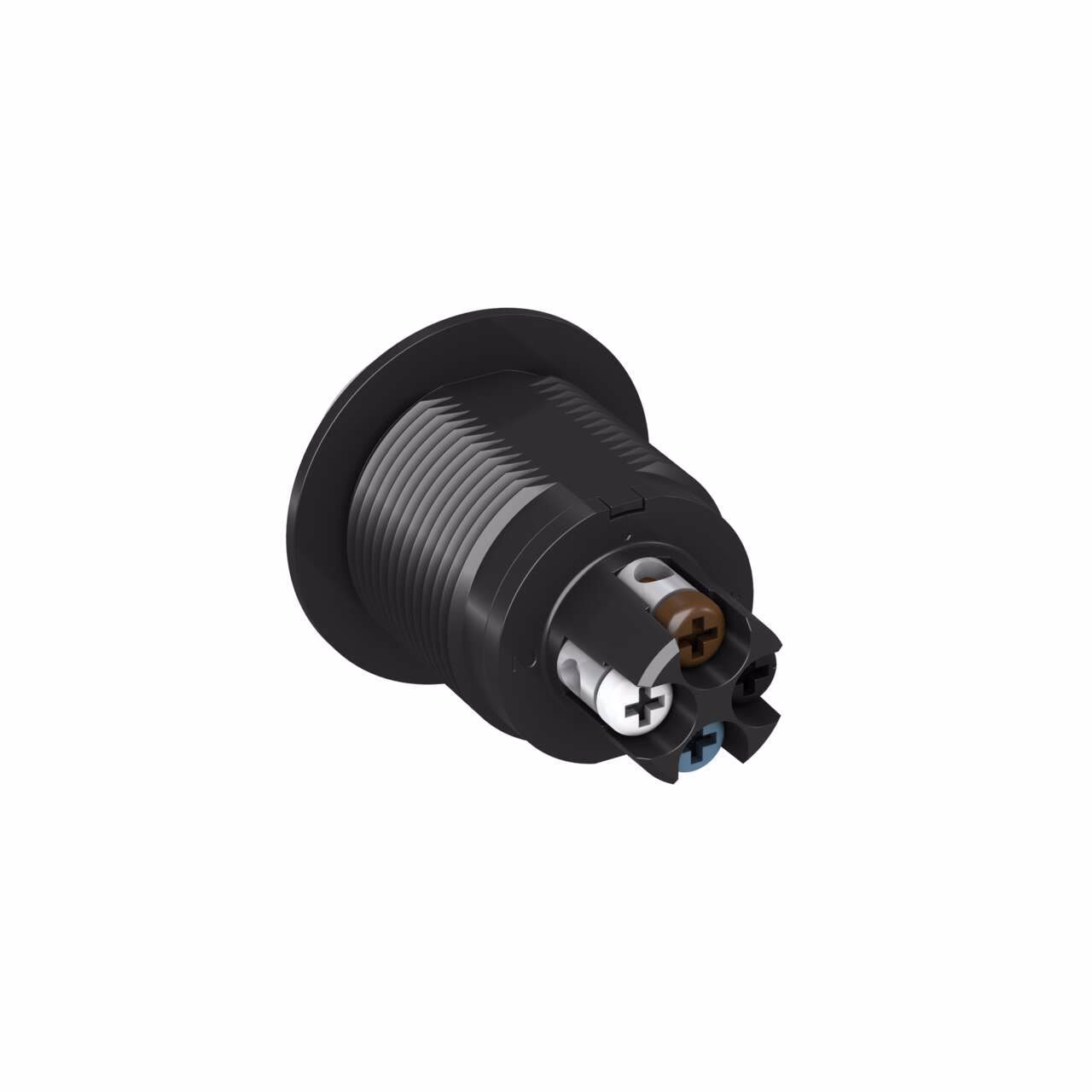

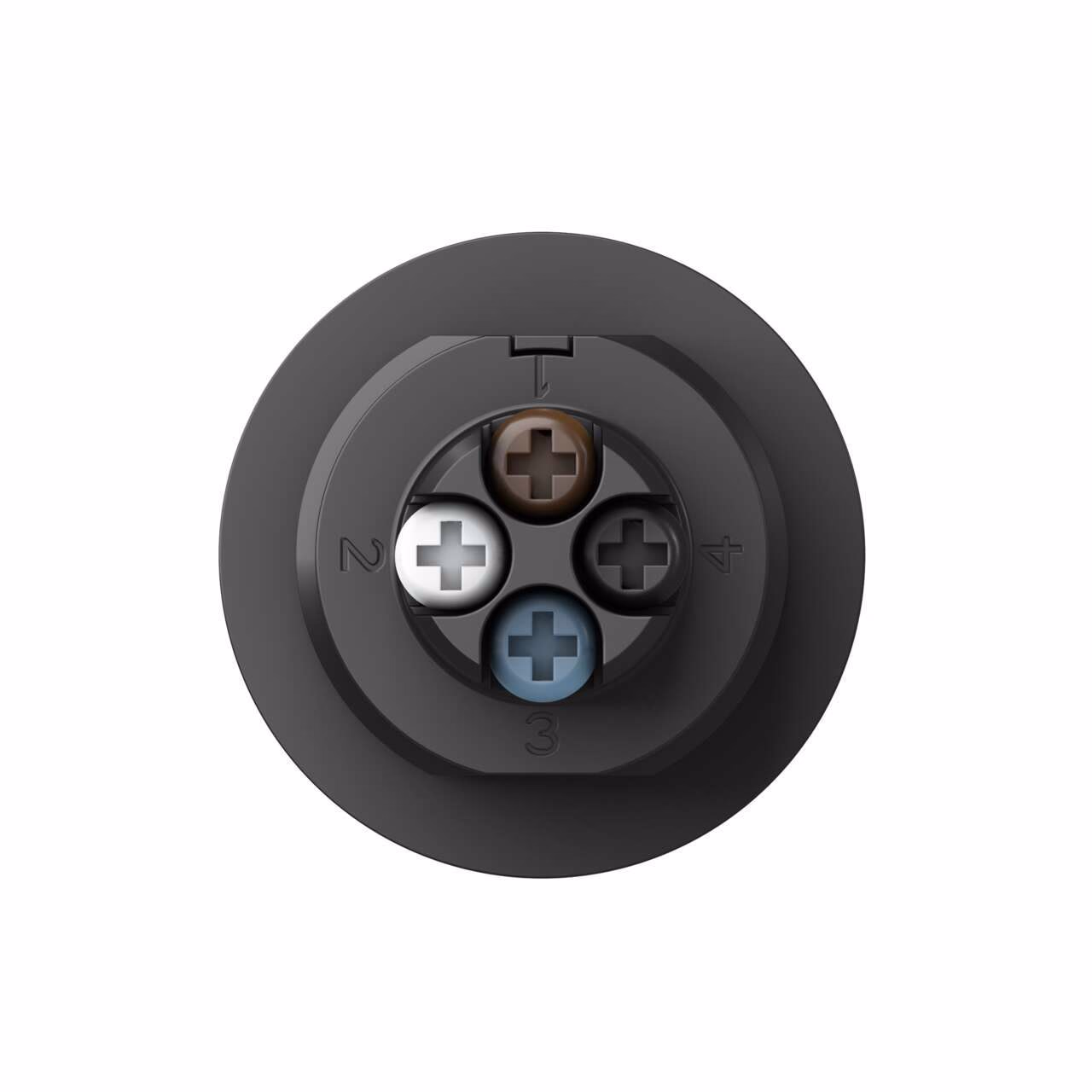

4-screw Terminal Wiring
| Light type | No |
|---|---|
| Mounting | M18 x 1.0 |
| Number of colors/segments | 3 |
| Number of Conductors | 4.0 |
| Operating voltage | 10-30 V dc |
| Power Good Output | DC |
| Protection class shaft | IP67, IP69K |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Touchscreen | No |
| Item Status | RELEASED |
| Housing Style | Barrel Mount – Flat Window |
| Connection | Terminal |
| Min Op. Temperature (C) | -40.0 |
| Feature: Audible | No |
| NEMA / UL Type Rating | NEMA and UL 4X, 13 |
| Indication | Yes |
| High Temperature (up to 100 C) | 50.0 |
| Physical Dimensions (LxWxH or DxH mm) | 23.5 x 34.6 |
| Color Technology | Standard LED |
| Environmental Rating | IP67; IP69K |
| Product Size (mm) | 18 |
| Eye Shield | No |
| USB | No |
| Non-Illuminated | No |
| PFM Input | No |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Red |
| Primary Window Material | Polycarbonate Clear |
| Max Current Color (mA) | 25.0 |
| Animation Option 1 | Solid On |
| Color 1 - Wavelength/Color Temp/Coordinates | 625 nm |
| Multi-Color Device | Single Color On |
| Lumens Color 1 | 1.4 |
| Primary Housing Color | Black |
| Input Type | NPN |
| Max Input Response Time (ms) | 1.0 |
| Color Option 2 | Blue |
| Color 2 - Wavelength/Color Temp/Coordinates | 470 nm |
| Lumens Color 2 | 0.6 |
| Color Option 3 | White |
| Lumens Color 3 | 4.0 |
| Color 3 - Wavelength/Color Temp/Coordinates | 6000K |
| Indication Intensity | High Brightness & Daylight Visible |
| Feature | Washdown Rated |
Description
S18 DAYLIGHT VISIBLE EZ Light – 18 mm – IP67
Three Color: Red Blue White
10-30 V dc NPN Input
4-screw Terminal Wiring
