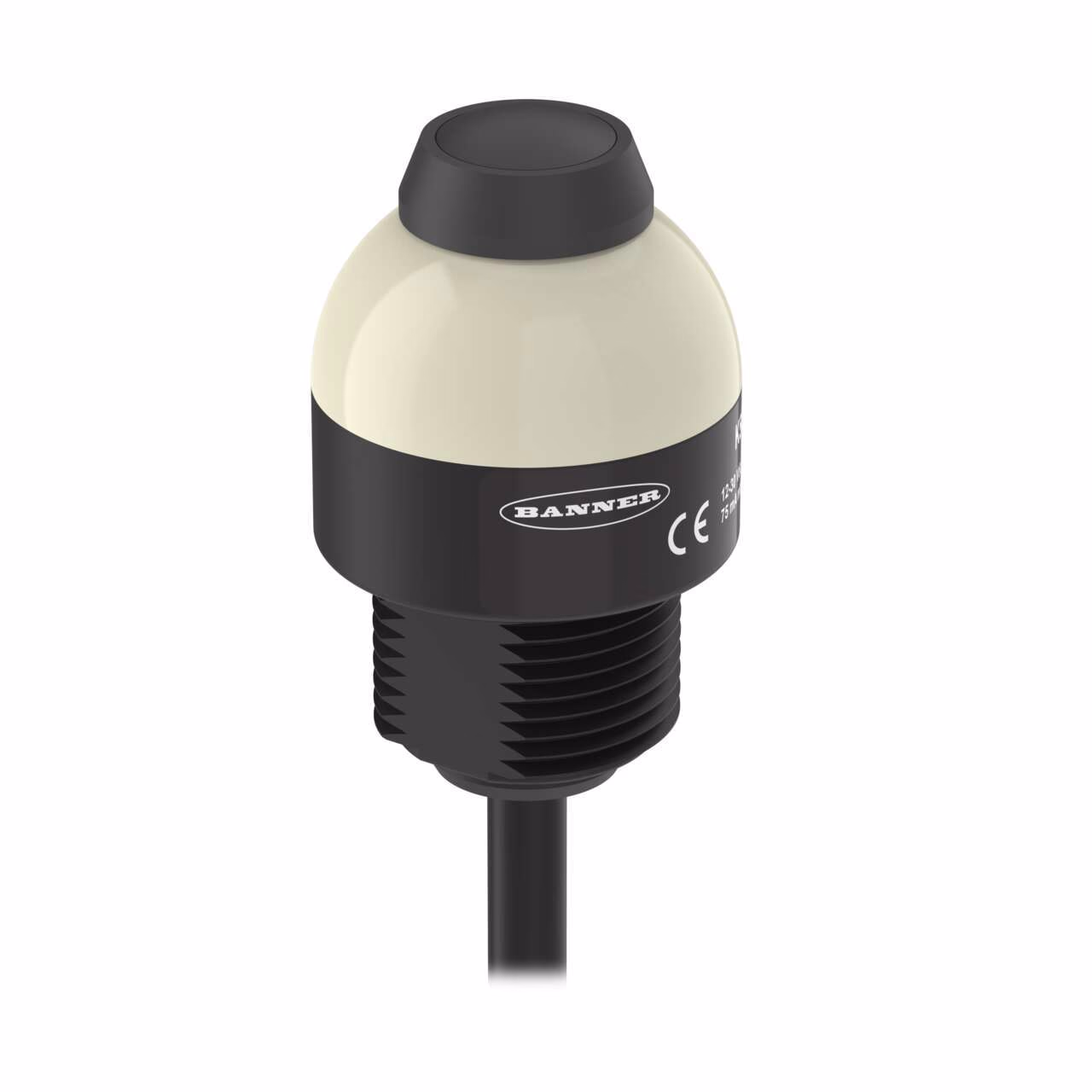

K30 Core Series 30 mm Multipurpose Illuminated Push Buttons – Banner – K30LBXXPPB2
K30L Series EZ-LIGHT: 1-Color Indicator with Dry Contact Switch
Voltage: 10-30 V dc; Housing: Polycarbonate; IP67
Input: PNP; Colors: Blue
2 m (6.5 ft) Integral Cable
| Color Technology | Standard LED |
|---|---|
| Connection | Cable |
| Feature: Audible | No |
| Input Type | PNP |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Secondary Material | Thermoplastic |
| Actuation | Yes |
| Animation Option 1 | Solid On |
| Button Operation | Momentary |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Blue |
| Environmental Rating | IP67 |
| EPLAN Original Sent Date | 10/27/2022 |
| EPLAN Status | Published |
| Eye Shield | No |
| Housing Style | Base Mount – Dome Window |
| Indication | No |
| Item Status | RELEASED |
| Light type | No |
| Mounting | M22 x 1.5 |
| Multi-Color Device | Single Color On |
| Non-Illuminated | No |
| Number of colors/segments | 1 |
| Number of Conductors | 4 |
| Operating mode | Push-Button |
| Operating voltage | 10-30 V dc |
| Operation | Normally Open |
| Output type | Dry Contact |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 30.0 x 49.4 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Min Op. Temperature (C) | -40 |
| NEMA / UL Type Rating | NEMA 13 |
| High Temperature (up to 100 C) | 50 |
| Product Size (mm) | 30 |
| Touchscreen | No |
| USB | No |
| Slot width (mm) | 2 |
| Max Current Color (mA) | 40 |
| Storage Temp (C) | -40 to 70 |
| Max Input Response Time (ms) | 1 |
| Max Output Response Time (ms) | 10 |
Description
K30L Series EZ-LIGHT: 1-Color Indicator with Dry Contact Switch
Voltage: 10-30 V dc; Housing: Polycarbonate; IP67
Input: PNP; Colors: Blue
2 m (6.5 ft) Integral Cable
