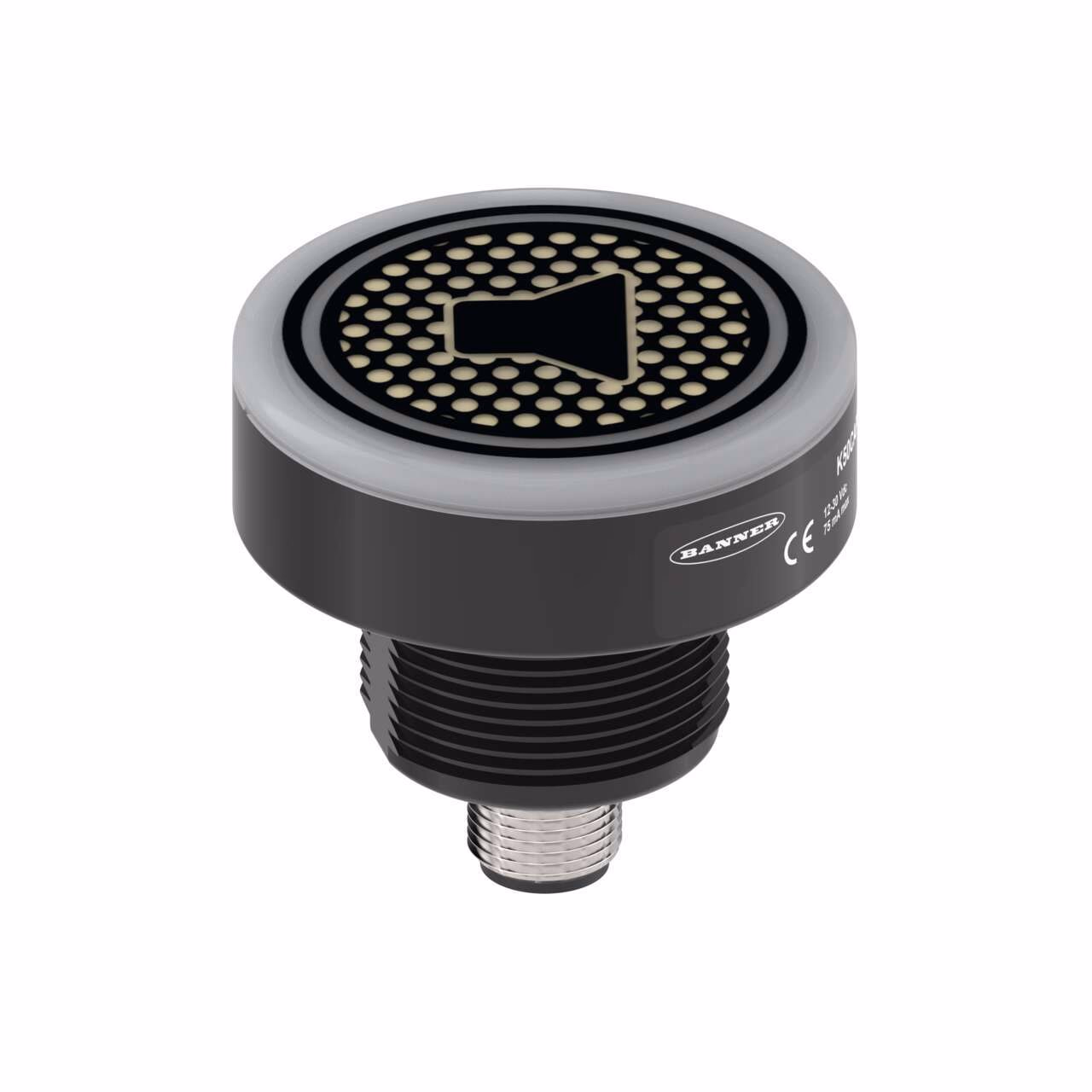

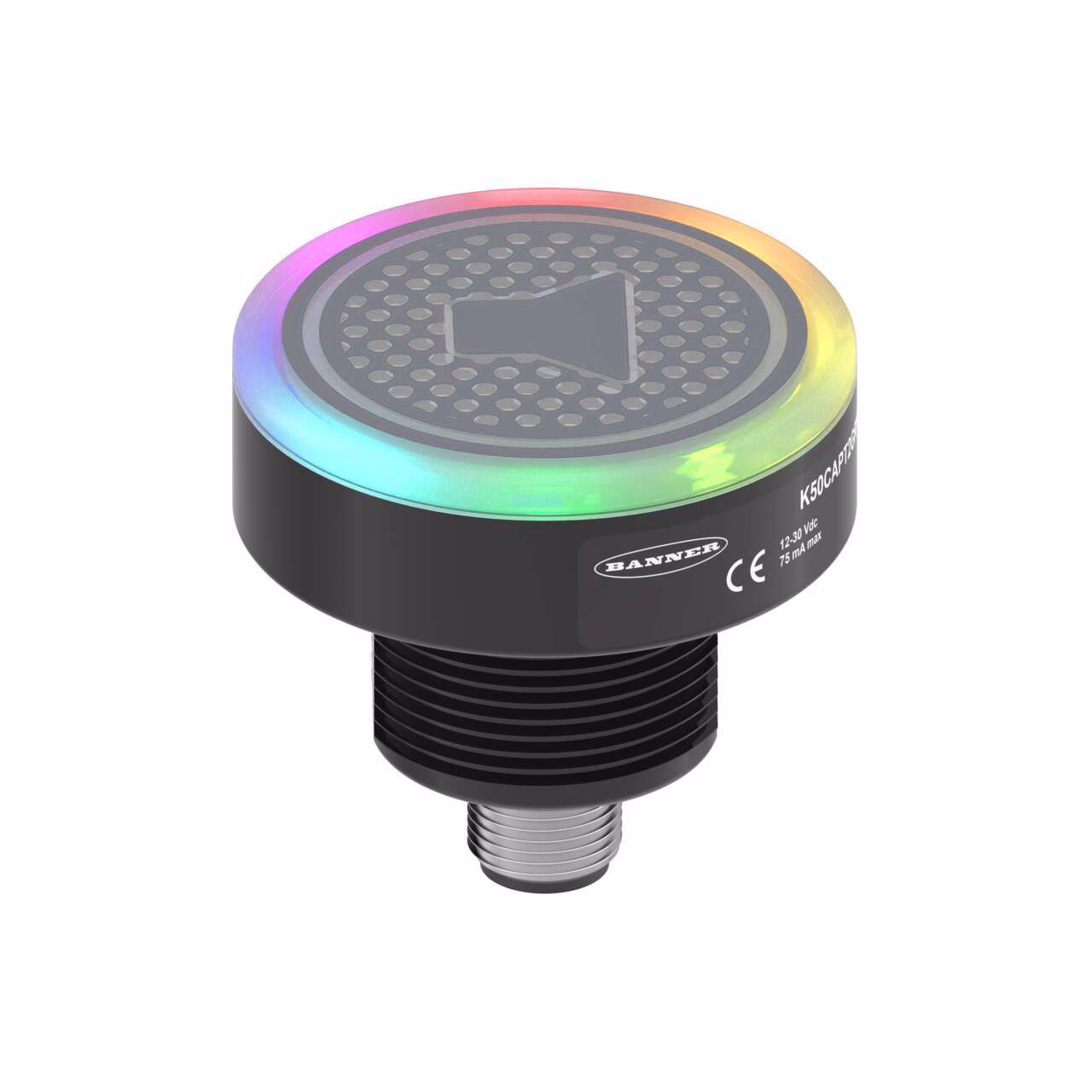

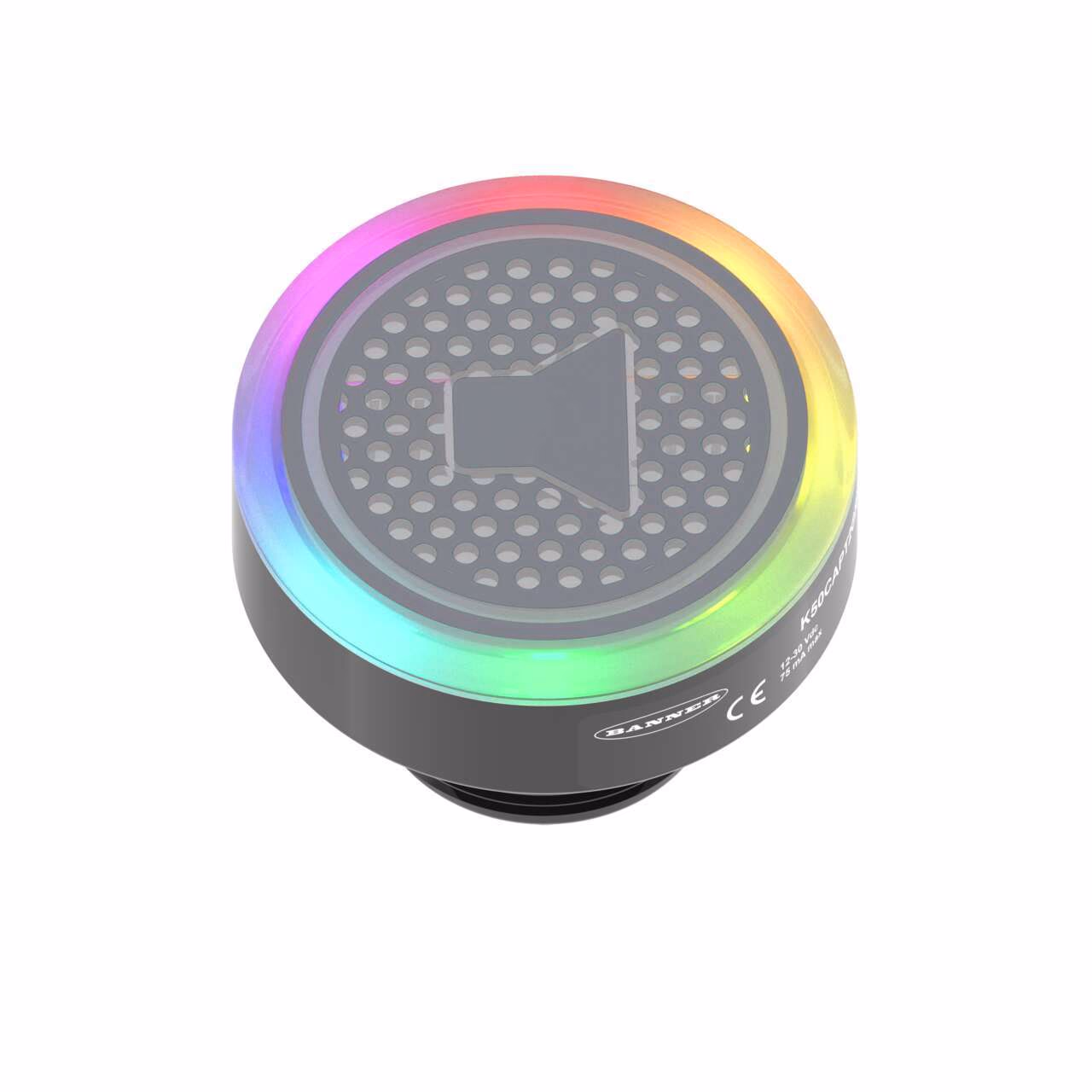

K50 Pro Series 50 mm Programmable Multicolor Indicator – Banner – K50PCLRGB7KAQ
K50 Pro Compact with Audible and IO-Link: 7-color RGB Indicator
18-30 V dc; Polycarbonate; IP66, IP67, IP69K
Input: Bimodal; Colors: Multicolor
5-pin M12 Integral QD
| Audible Alarm Type | Programmable |
|---|---|
| Color Technology | RGB IO-Link |
| Connection | Integral QD |
| Dimming Option | Programmable |
| Discrete | No |
| Feature: Audible | Yes |
| Input Type | Communication Protocol |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Pro-Editor Compatible (Discrete) | No |
| Color Input Control | Communication Protocol |
| Color Option 1 | RGB |
| Environmental Rating | IP66; IP67; IP69K |
| Eye Shield | No |
| Feature | Quick Disconnect, Washdown Rated |
| Housing Style | Compact |
| Indication | No |
| IO Link | Yes |
| Item Status | RELEASED |
| Light type | No |
| Lighting Device Type | Indicator |
| Max Audible Intensity (dB at 1m) | 92.0 |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| Min Audible Intensity (dB at 1m) | 83.0 |
| Modbus RTU | No |
| Mounting | M30 x 1.5 |
| Multi-Color Device | Simultaneous Colors On |
| Non-Illuminated | No |
| Number of colors/segments | Programmable |
| Number of Conductors | 5.0 |
| Operating voltage | 18-30 V dc |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 69.6 |
| Port | M12 |
| Power Good Output | DC |
| Programmable | Yes |
| Protection class shaft | IP66, IP67, IP69K |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Switching frequency (kHz) | 2.9 |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 50 |
| Max Current Color (mA) | 145.0 |
| Storage Temp (C) | -40 to 70 |
| Max Input Response Time (ms) | 250.0 |
| Options Available | 4-20mA Output |
Description
K50 Pro Compact with Audible and IO-Link: 7-color RGB Indicator
18-30 V dc; Polycarbonate; IP66, IP67, IP69K
Input: Bimodal; Colors: Multicolor
5-pin M12 Integral QD
