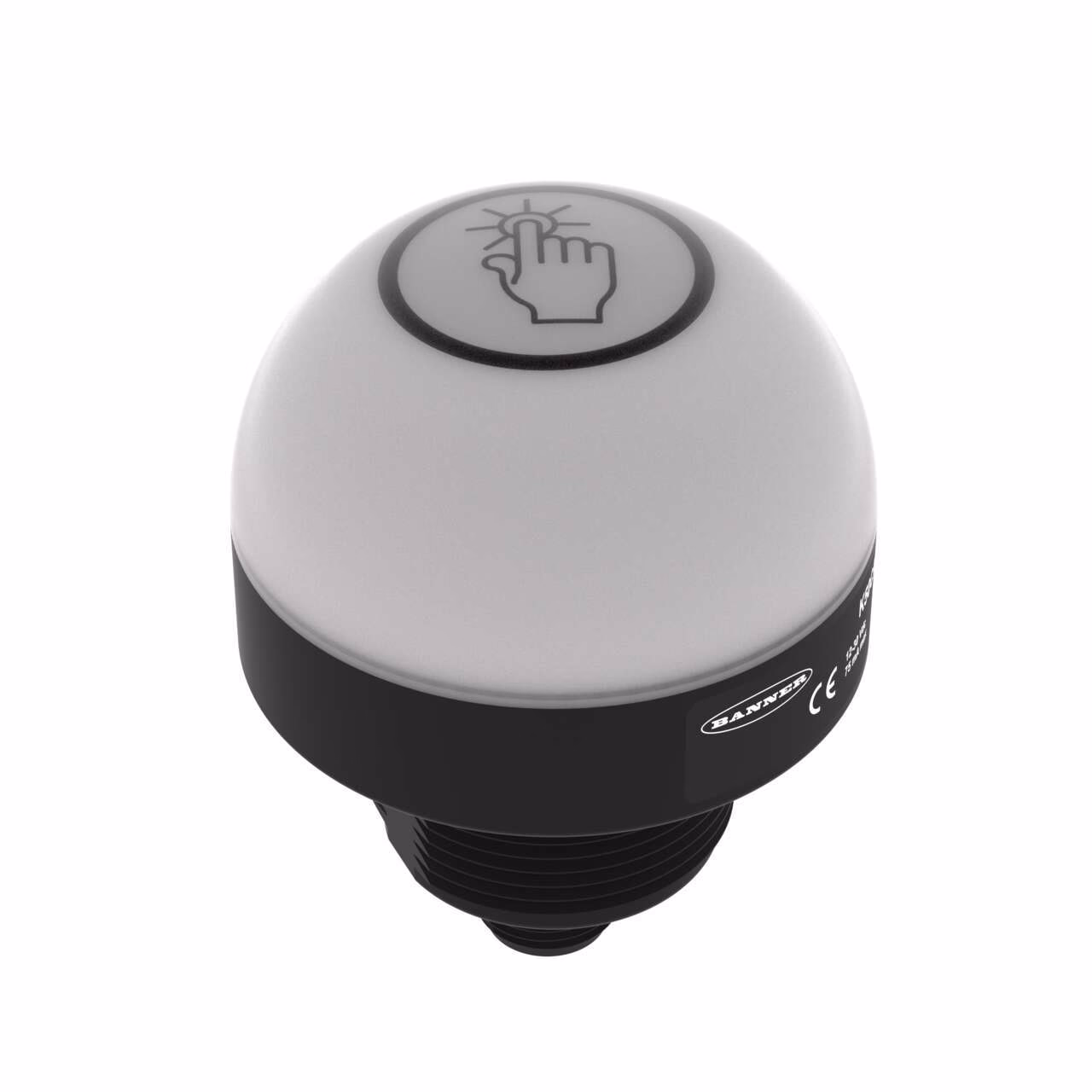

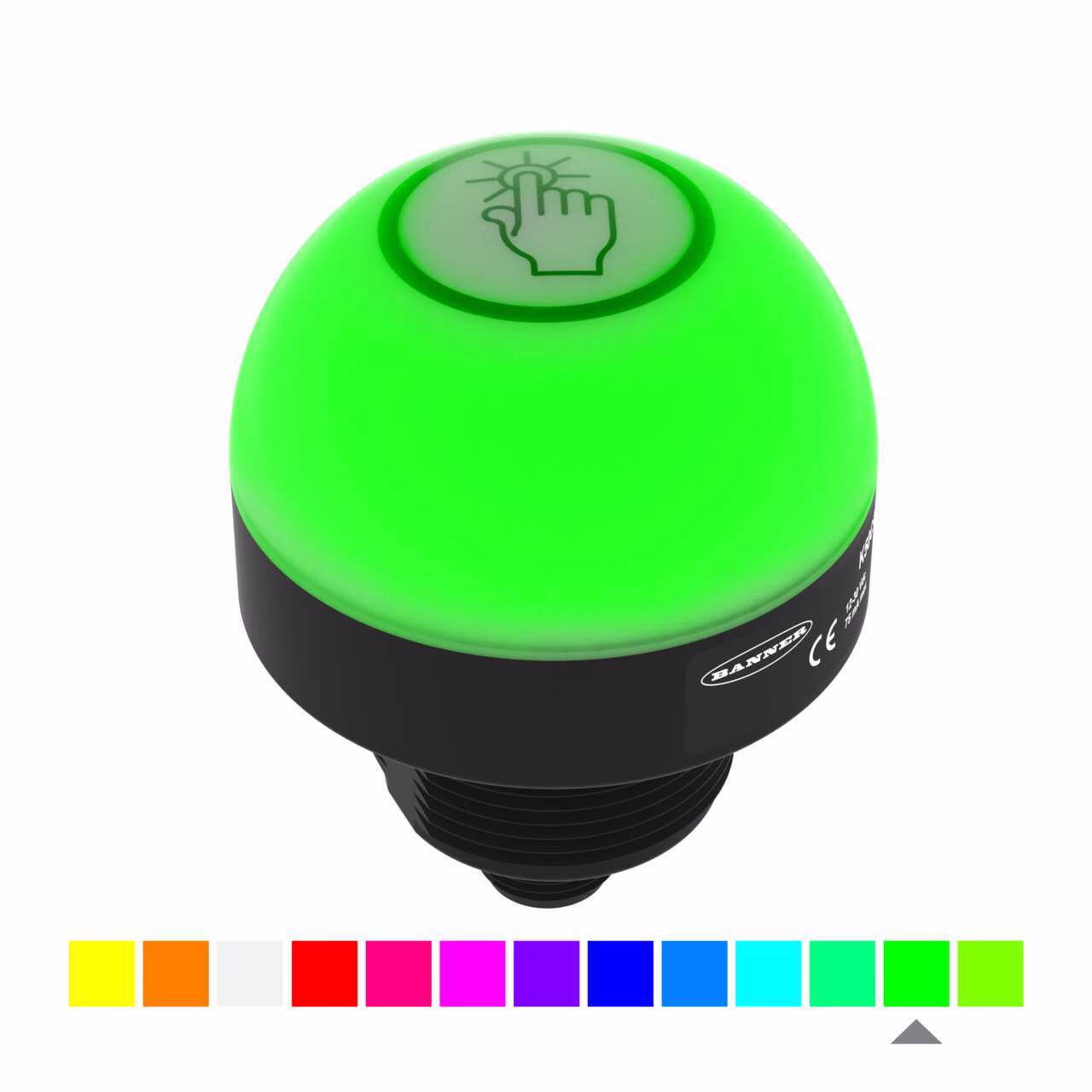

K50 Pro Series 50 mm Programmable Multicolor Touch Button – Banner – K50PSTKQ
K50 Pro: IO-Link Touch
18-30 V dc; Polycarbonate; IP66, IP67, IP69K
Input: IO-Link; Colors: Multicolor
4-pin M12 Integral QD
| Color Technology | RGB IO-Link |
|---|---|
| Connection | Integral QD |
| Dimming Option | IO-Link Controlled |
| Discrete | No |
| Feature: Audible | No |
| Input Type | Bimodal (PNP/NPN) |
| Pick-to-Light Function | Programmable |
| Primary Housing Color | Black |
| Primary Window Material | Polycarbonate Diffused |
| Pro-Editor Compatible (Discrete) | No |
| Actuation | Yes |
| Animation Option 1 | IO-Link Controlled |
| Button Operation | Programmable |
| Color Input Control | Multiple (One or more wires/color, enables more colors than input wires) |
| Color Option 1 | RGB |
| EPLAN Original Sent Date | 07/03/2025 |
| EPLAN Status | Published |
| Eye Shield | No |
| Feature | Quick Disconnect, Washdown Rated |
| Housing Style | Dome |
| Indication | Yes |
| IO Link | Yes |
| Item Status | RELEASED |
| Light type | No |
| Lighting Device Type | Touch Button |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| Modbus RTU | No |
| Mounting | M30 x 1.5 |
| Multi-Color Device | Simultaneous Colors On |
| Non-Illuminated | No |
| Number of colors/segments | Programmable |
| Number of Conductors | 4.0 |
| Operating mode | Capacitive Touch |
| Operating voltage | 18-30 V dc |
| Operation | Programmable |
| Output type | Bipolar (NPN & PNP) |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 50.0 x 66.0 |
| Port | M12 |
| Power Good Output | DC |
| Programmable | Yes |
| Protection class shaft | IP66, IP67, IP69K |
| Radio interface | No |
| Receptacle housing material B | Polycarbonate |
| Touchscreen | No |
| USB | No |
| Min Op. Temperature (C) | -40.0 |
| High Temperature (up to 100 C) | 50.0 |
| Product Size (mm) | 50 |
| Max Current Color (mA) | 220.0 |
| Storage Temp (C) | -40 to 70 |
| Max Input Response Time (ms) | 250.0 |
| Vibration Feedback | No |
| Options Available | 4-20mA Output |
Description
K50 Pro: IO-Link Touch
18-30 V dc; Polycarbonate; IP66, IP67, IP69K
Input: IO-Link; Colors: Multicolor
4-pin M12 Integral QD
