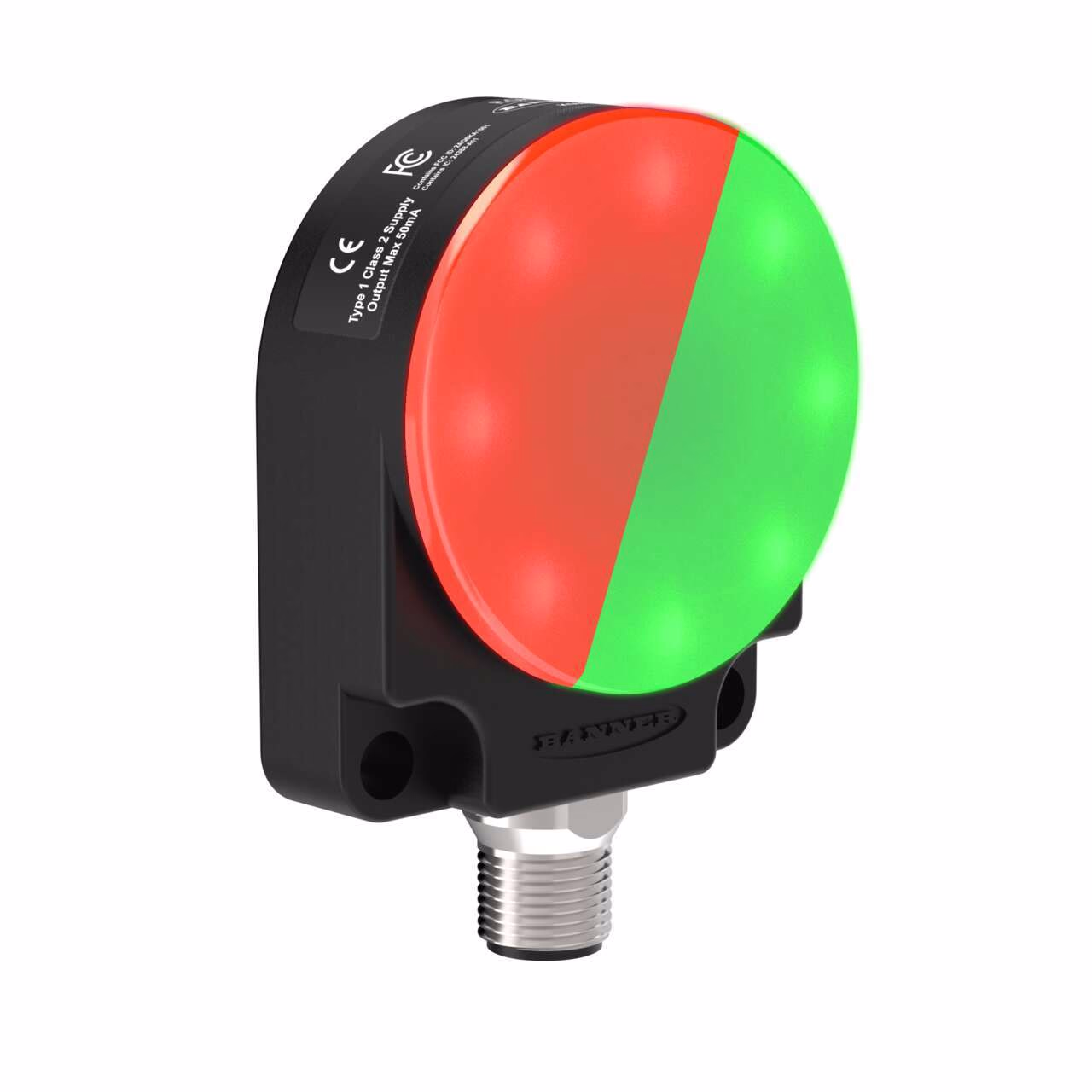

K50R Series Radar Sensors – Banner – K50RPF-8060-LDQ
K50R Pro R-GAGE Series Radar Sensor Configurable LEDs
Range 3.0 m; 80×60 degree FOV; Flat Mount
Input: 10-30 V dc; Output 2 NPN/PNP Configurable
5-pin M12 Integral QD
| Connection | Integral QD |
|---|---|
| Discrete (Switched) Outputs | 2 NPN/PNP Configurable |
| Jam Detection | No |
| Laser Control | No |
| Min Operating Temperature (C) | -40.0 |
| Minimum Sensing Distance (mm) | 100.0 |
| PC Configurable | Yes |
| PFM Output | Yes |
| Sensing Mode (General) | Proximity |
| Adjustments | Software; Remote Teach |
| Cert | Australia/New Zealand, European, Singapore, Taiwan, US |
| Connection technology signal | Time of Flight |
| Device type | Sensor |
| EPLAN Original Sent Date | 10/27/2022 |
| EPLAN Status | Published |
| Feature | Clear Object Detection, Quick Disconnect, Remote Teach, Timing (Hold/Delay) |
| Frequency band | 60 GHz |
| Housing Style | Flat Pack |
| Input/Output | Discrete |
| IO Link | No |
| Item Status | RELEASED |
| Network protocol | No |
| Number of pins | 5 |
| Operating voltage | 10-30 V dc |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Radio interface | No |
| Receptacle housing material B | ABS/Polycarbonate |
| RS-232 | No |
| Sensing Beam | Radar |
| NEMA / UL Type Rating | NEMA 4X |
| Max Sensing Distance (mm) | 2500.0 |
| Minimum Response Time (ms) | 200.0 |
Description
K50R Pro R-GAGE Series Radar Sensor Configurable LEDs
Range 3.0 m; 80×60 degree FOV; Flat Mount
Input: 10-30 V dc; Output 2 NPN/PNP Configurable
5-pin M12 Integral QD
