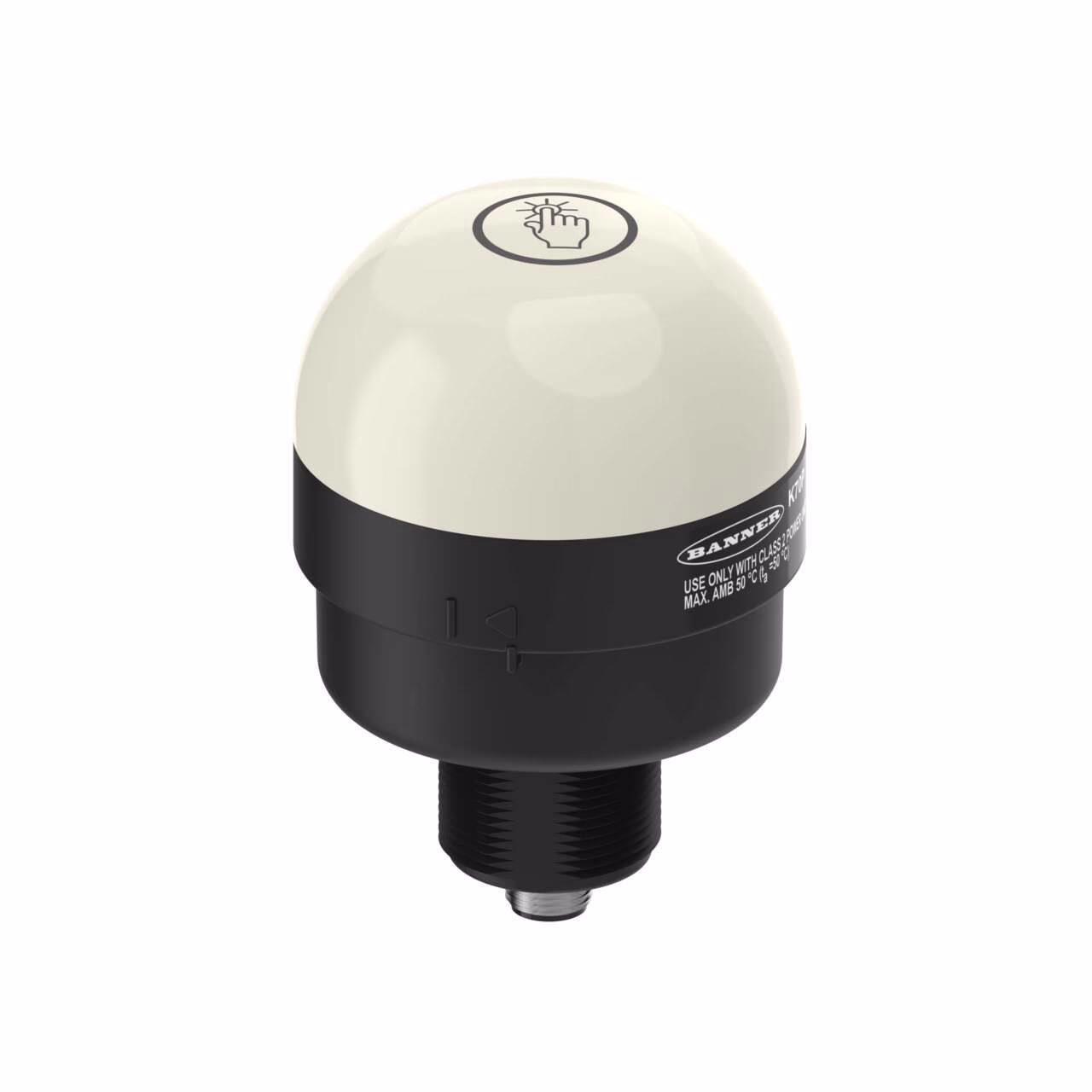

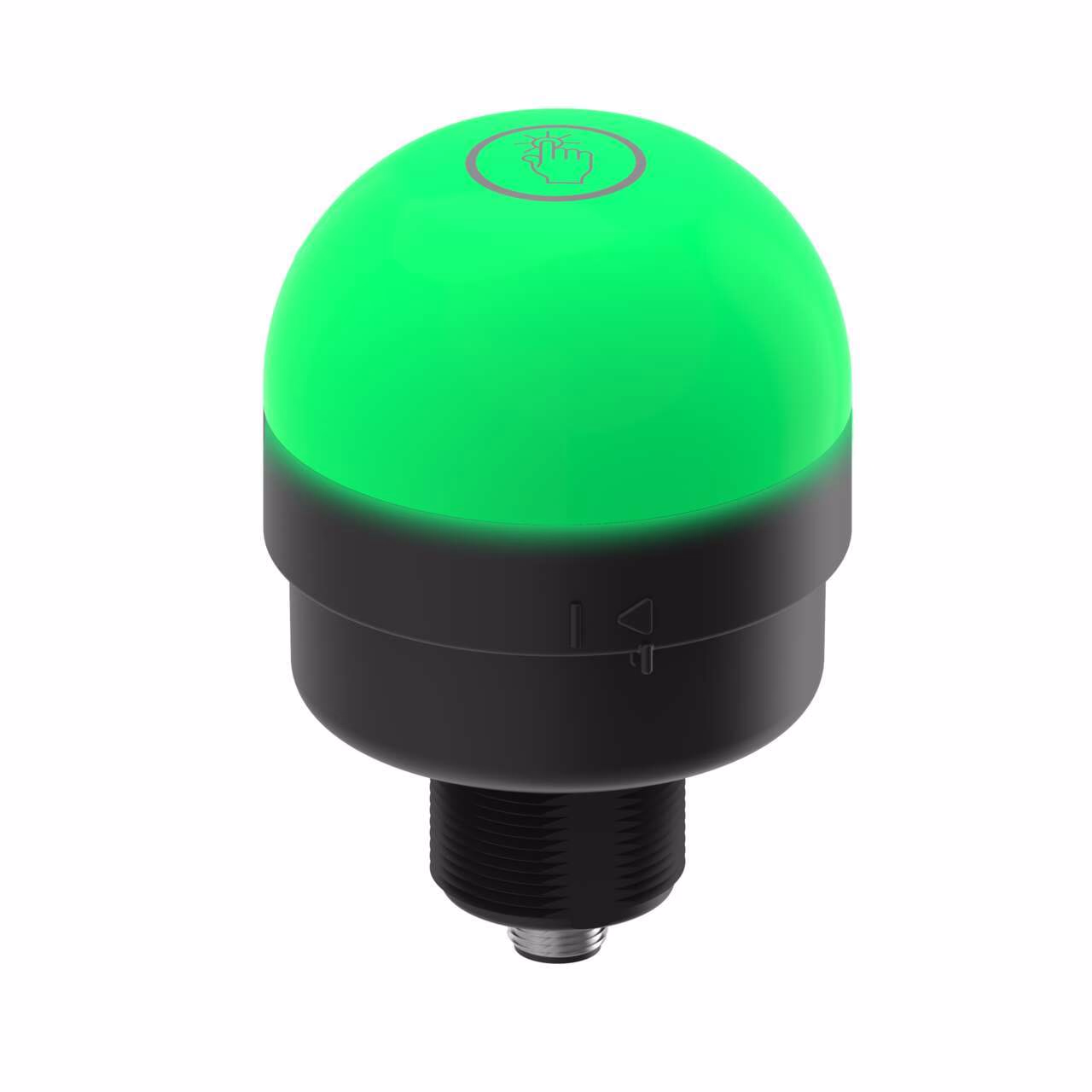

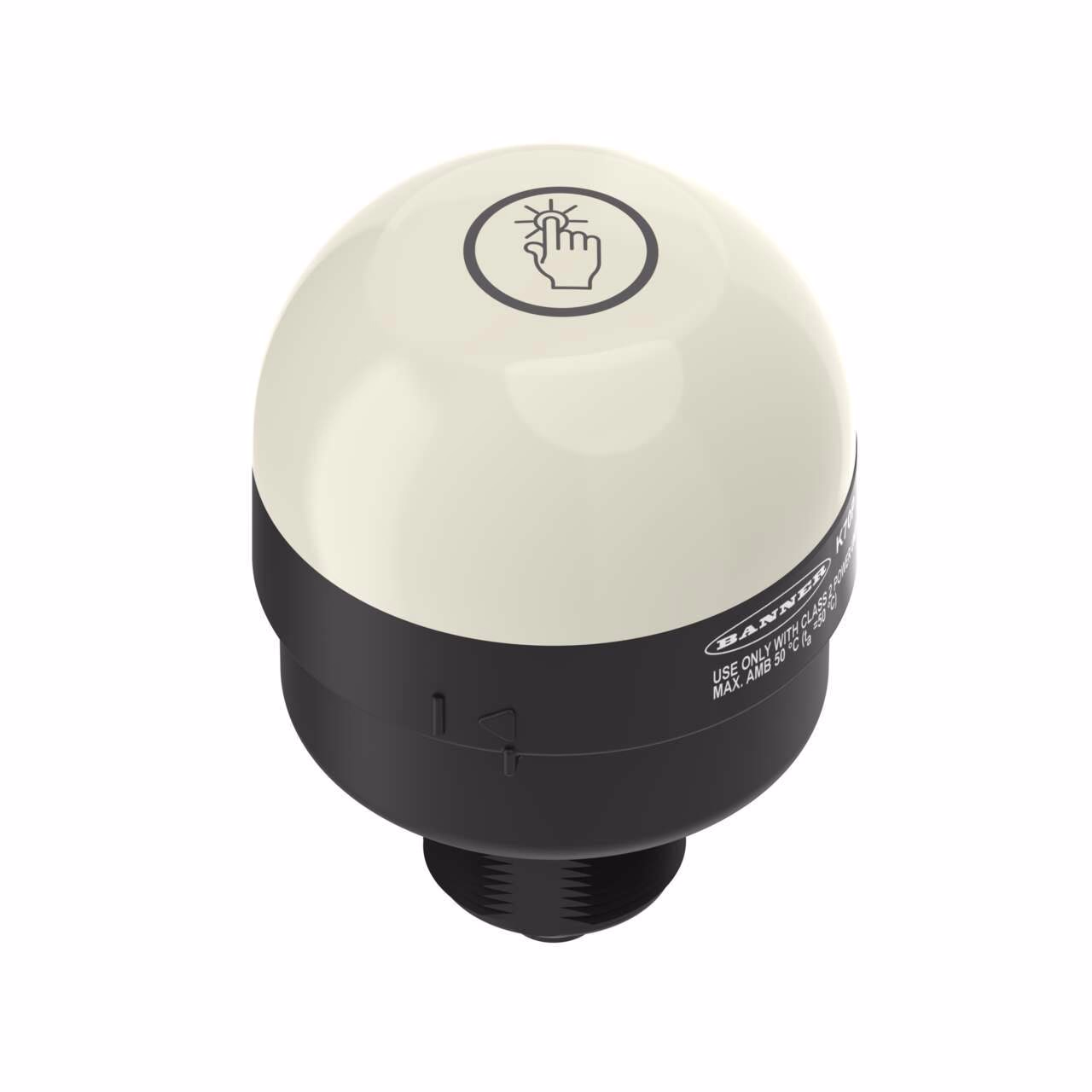

K70 Core 70 mm Illuminated Pick-to-Light Touch Buttons – Banner – K70DXN2T2GRYQ
K70 Wireless Touch Sensor Gen 2, 2.4 GHz, Black Housing: 3-Color Indicator
Voltage: 12-30 V dc; Environmental Rating: IP65
Colors: Green Red Yellow
5-pin M12 Integral QD
| Light type | No |
|---|---|
| Mounting | M30 x 1.5 |
| Number of colors/segments | 3 |
| Number of Conductors | 5.0 |
| Operating mode | Capacitive Touch |
| Operating voltage | 12-30 V dc |
| Output type | Communication Protocol |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP65 |
| Radio interface | Yes |
| Receptacle housing material B | Polycarbonate |
| Touchscreen | No |
| Item Status | RELEASED |
| Housing Style | Base Mount – Dome Window |
| Connection | Integral QD |
| Min Op. Temperature (C) | -40.0 |
| Feature: Audible | No |
| Indication | No |
| High Temperature (up to 100 C) | 50.0 |
| EPLAN Status | Published |
| Physical Dimensions (LxWxH or DxH mm) | 70.0 x 103.5 |
| Color Technology | Standard LED |
| Environmental Rating | IP65 |
| EPLAN Original Sent Date | 10/27/2022 |
| Product Size (mm) | 70 |
| Eye Shield | No |
| USB | No |
| Non-Illuminated | No |
| PFM Input | No |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Color Option 1 | Green |
| Max Current Color (mA) | 260.0 |
| Operation | Normally Open |
| Animation Option 1 | Solid On |
| Color 1 - Wavelength/Color Temp/Coordinates | 525 nm |
| Multi-Color Device | Single Color On |
| Lumens Color 1 | 45.0 |
| Primary Housing Color | Black |
| Input Type | Communication Protocol |
| Max Op. Relative Humidity Non-Condensing (%) | 95% @ 50°C |
| Max Input Response Time (ms) | 180.0 |
| Color Option 2 | Red |
| Color Option 3 | Yellow |
| Lumens Color 3 | 13.0 |
| Color 3 - Wavelength/Color Temp/Coordinates | 590 nm |
| Actuation | Yes |
| Button Operation | Momentary |
| Wireless Radio Frequency | 2.4 GHz |
| Ships With Battery | No |
| Wireless Network | Node |
| Feature | Quick Disconnect |
Description
K70 Wireless Touch Sensor Gen 2, 2.4 GHz, Black Housing: 3-Color Indicator
Voltage: 12-30 V dc; Environmental Rating: IP65
Colors: Green Red Yellow
5-pin M12 Integral QD
